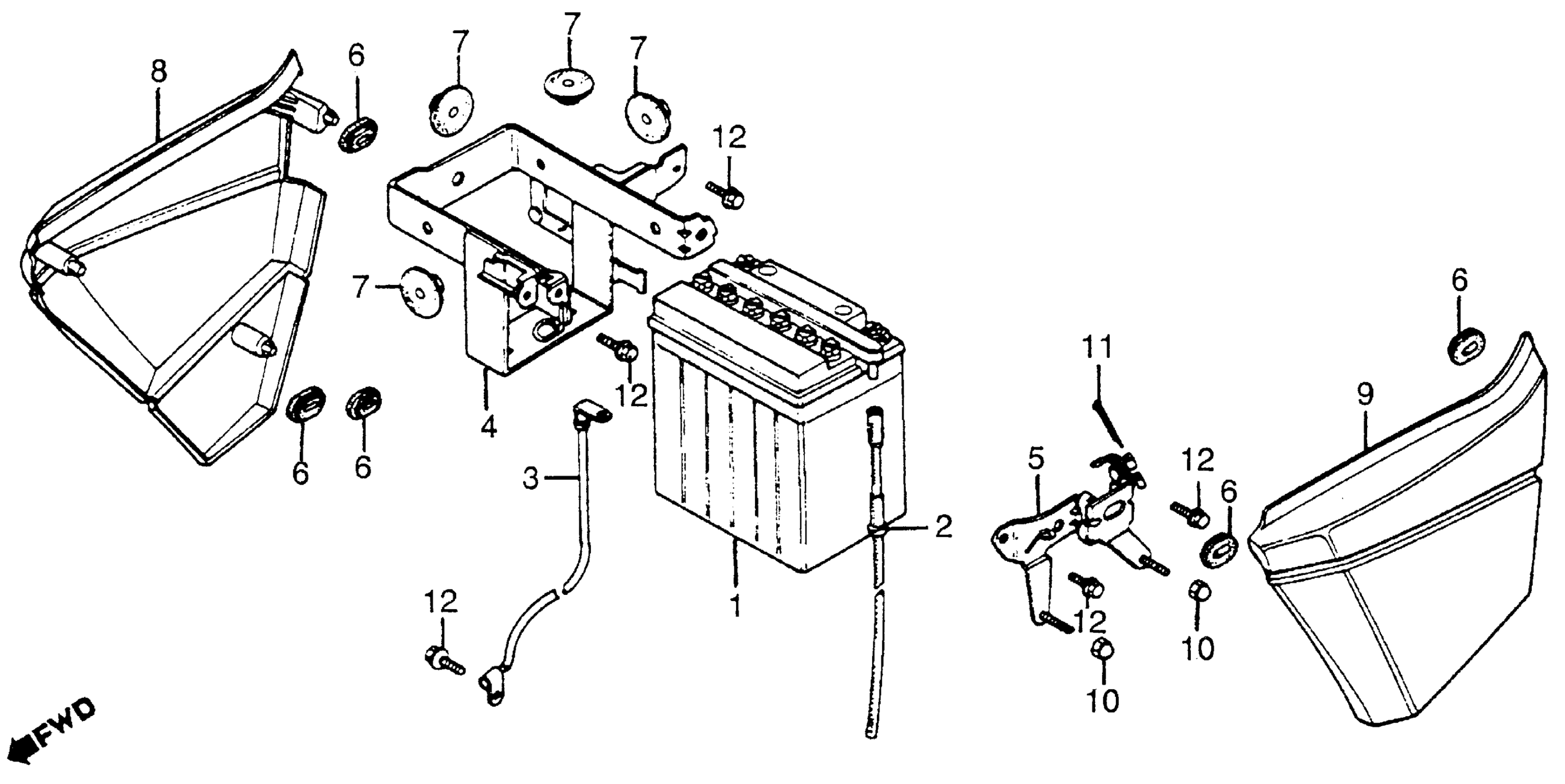

Honda CX650CA (83) CUSTOM, JPN, VIN# JH2RC110-DM000018 TO JH2RC110-DM010120 SIDE COVER + BATTERY Diagram

BATTERY (YB14-A2) This part replaces 31500-MB1-671.

31500-MW3-720AH

$70.40

BATTERY (YB14-A2) This part replaces 31500-MB1-672.

31500-MW3-720AH

$70.40

BATTERY (YB14-A2) This part replaces 31500-MW3-720.

31500-MW3-720AH

$70.40

TUBE, BATTERY BREATHER

31502-ME8-000

Unavailable

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-ME8-000

Unavailable

BAND A, BATTERY

50327-ME8-000

Unavailable

BAND B, BATTERY (NOT AVAILABLE)

50328-ME8-000

Unavailable

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

RUBBER, BATTERY BOX

83618-323-000

$2.47

COVER, R. SIDE *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

83640-ME8-000ZA

Unavailable

COVER, R. SIDE *NH1Z* (BLACK-Z) (NOT AVAILABLE)

83640-ME8-000ZB

Unavailable

COVER, L. SIDE *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

83740-ME8-000ZA

Unavailable

COVER, L. SIDE *NH1Z* (BLACK-Z) (NOT AVAILABLE)

83740-ME8-000ZB

Unavailable

NUT, CAP (6MM)

94021-06020

$1.73

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

PIN, SPLIT (3.0X45)

94201-30450

$1.49

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

BOLT, FLANGE (6X10)

95701-06010-08

$1.61
