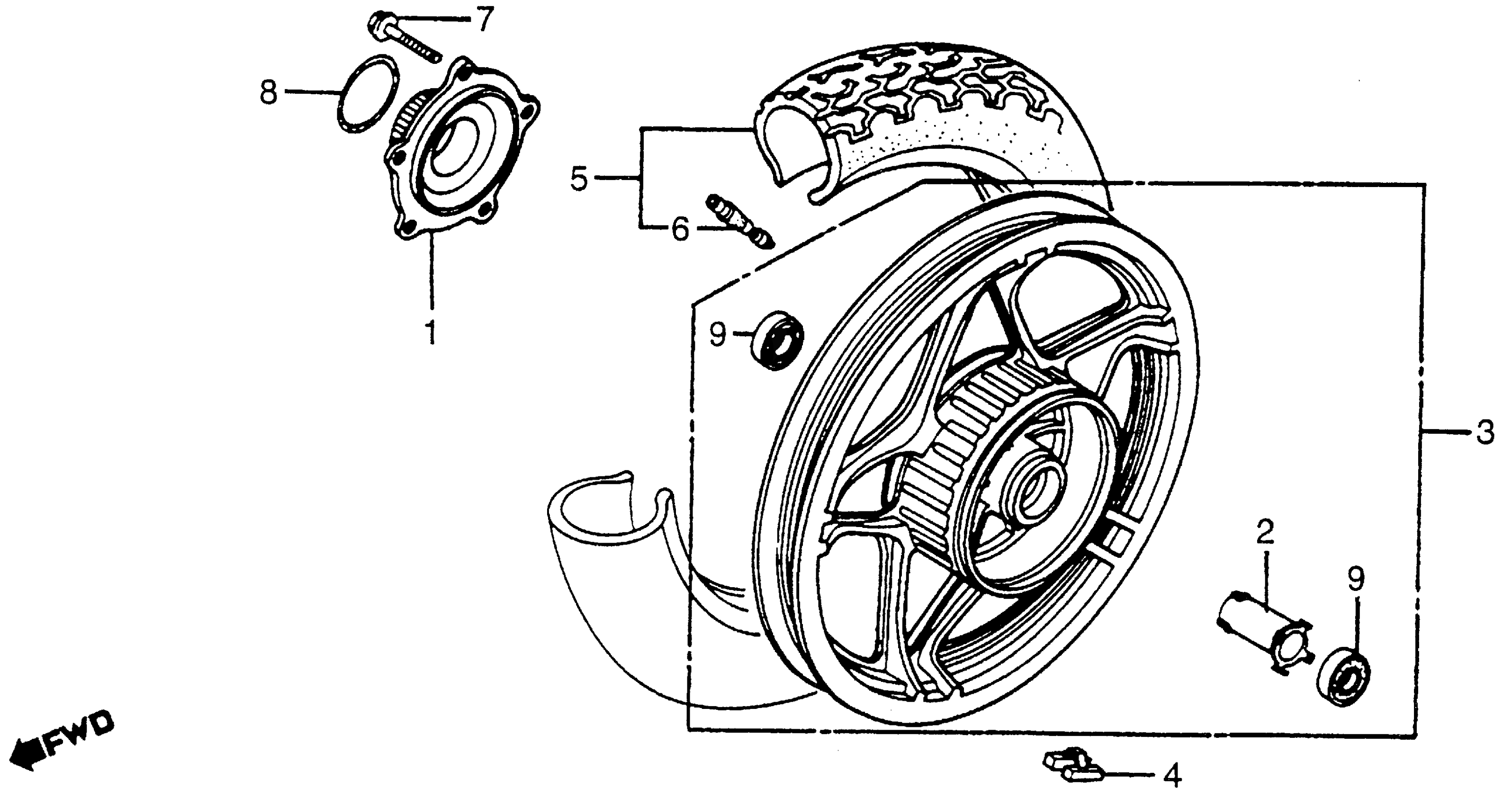

Honda CX650CA (83) CUSTOM, JPN, VIN# JH2RC110-DM000018 TO JH2RC110-DM010120 REAR WHEEL Diagram

FLANGE, FINAL DRIVEN

42615-MB0-700

Unavailable

COLLAR, RR. AXLE DISTANCE

42620-MB0-000

Unavailable

WHEEL, RR. (NOT AVAILABLE)

42650-ME8-305

Unavailable

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

WEIGHT, BALANCE (20G)

42705-MCF-D60

$15.38

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

TIRE ASSY., RR. (140/90-15) (70H) (DUNLOP) This part replaces 42710-ME9-671.

42710-MG8-673

Unavailable

TIRE ASSY., RR. (140/90-15) (70H) (DUNLOP) This part replaces 42710-ME9-672.

42710-MG8-673

Unavailable

TIRE ASSY., RR. (140/90-15) (70H) (DUNLOP)

42710-MG8-673

Unavailable

VALVE, RIM (BS)

42753-GC7-821

Unavailable

VALVE, RIM This part replaces 42753-GC7-822.

42753-VM0-003

$10.30

VALVE, RIM This part replaces 42753-GC7-823.

42753-VM0-003

$10.30

VALVE, RIM

42753-VM0-003

$10.30

BOLT, UBS (10X34) (NOT AVAILABLE)

90130-MC7-000

Unavailable

O-RING (46.5X3.5)

91358-MB0-000

$3.76

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48
