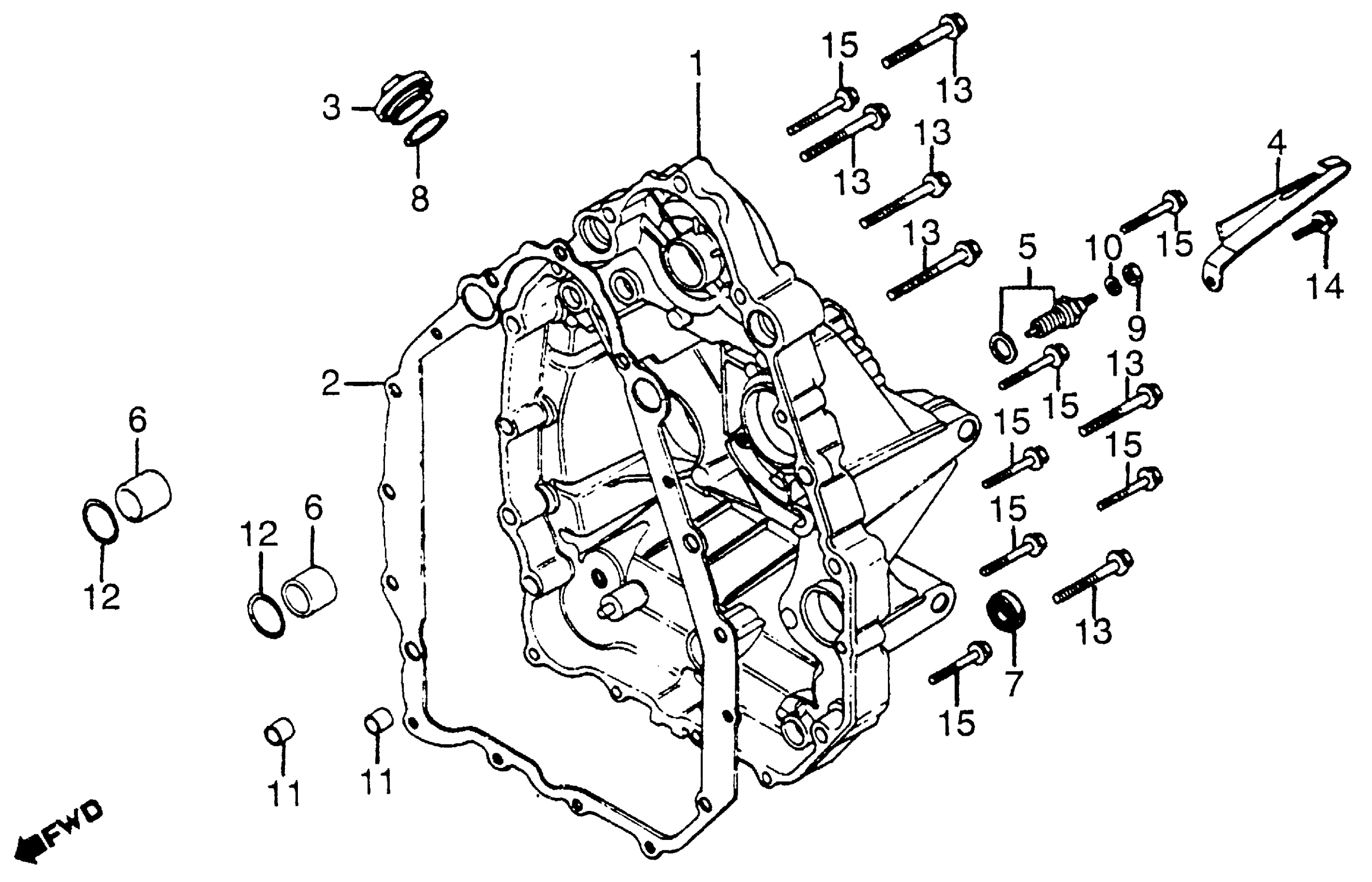

Honda CX650CA (83) CUSTOM, JPN, VIN# JH2RC110-DM000018 TO JH2RC110-DM010120 REAR COVER Diagram

#

Description
Price

1

COVER, RR. (NOT AVAILABLE)

11310-ME2-000

Unavailable

2

GASKET, RR. COVER

11394-449-306

$26.41

2

GASKET, RR. COVER This part replaces 11394-449-701.

11394-449-306

$26.41

3

CAP, ALTERNATOR TIMING MARK (NOT AVAILABLE)

12363-MC7-000

Unavailable

4

GUIDE, NEUTRAL CABLE

31140-415-000

Unavailable

5

SWITCH ASSY., NEUTRAL (TOYO) This part replaces 35600-413-003.

35600-413-023

$20.82

5

SWITCH ASSY., NEUTRAL (TOYO) This part replaces 35600-413-013.

35600-413-023

$20.82

5

SWITCH ASSY., NEUTRAL (TOYO)

35600-413-023

$20.82

6

COLLAR (22.2MM) (NOT AVAILABLE)

90701-415-000

Unavailable

7

OIL SEAL (14X26X6) This part replaces 91201-023-020.

91251-ZW5-003

$3.81

7

OIL SEAL (14X26X6) This part replaces 91203-023-020.

91251-ZW5-003

$3.81

7

OIL SEAL (14X26X6)

91251-ZW5-003

$3.81

8

O-RING (27.5X2.6) This part replaces 91302-001-000.

91302-001-710

$2.99

8

O-RING (27.5X2.6)

91302-001-710

$2.99

9

NUT, HEX. (4MM)

94001-04000-0S

$1.49

10

WASHER, SPRING (4MM)

94111-04800

$1.49

11

PIN, DOWEL (10X16)

94301-10160

$2.28

12

O-RING (23X2.8)

94608-50000

$1.49

13

BOLT, FLANGE (8X40) This part replaces 95700-08040-00.

95701-08040-00

$1.49

13

BOLT, FLANGE (8X40)

95701-08040-00

$1.49

14

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

14

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

15

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

15

BOLT, FLANGE (6X32)

96001-06032-00

$1.49
