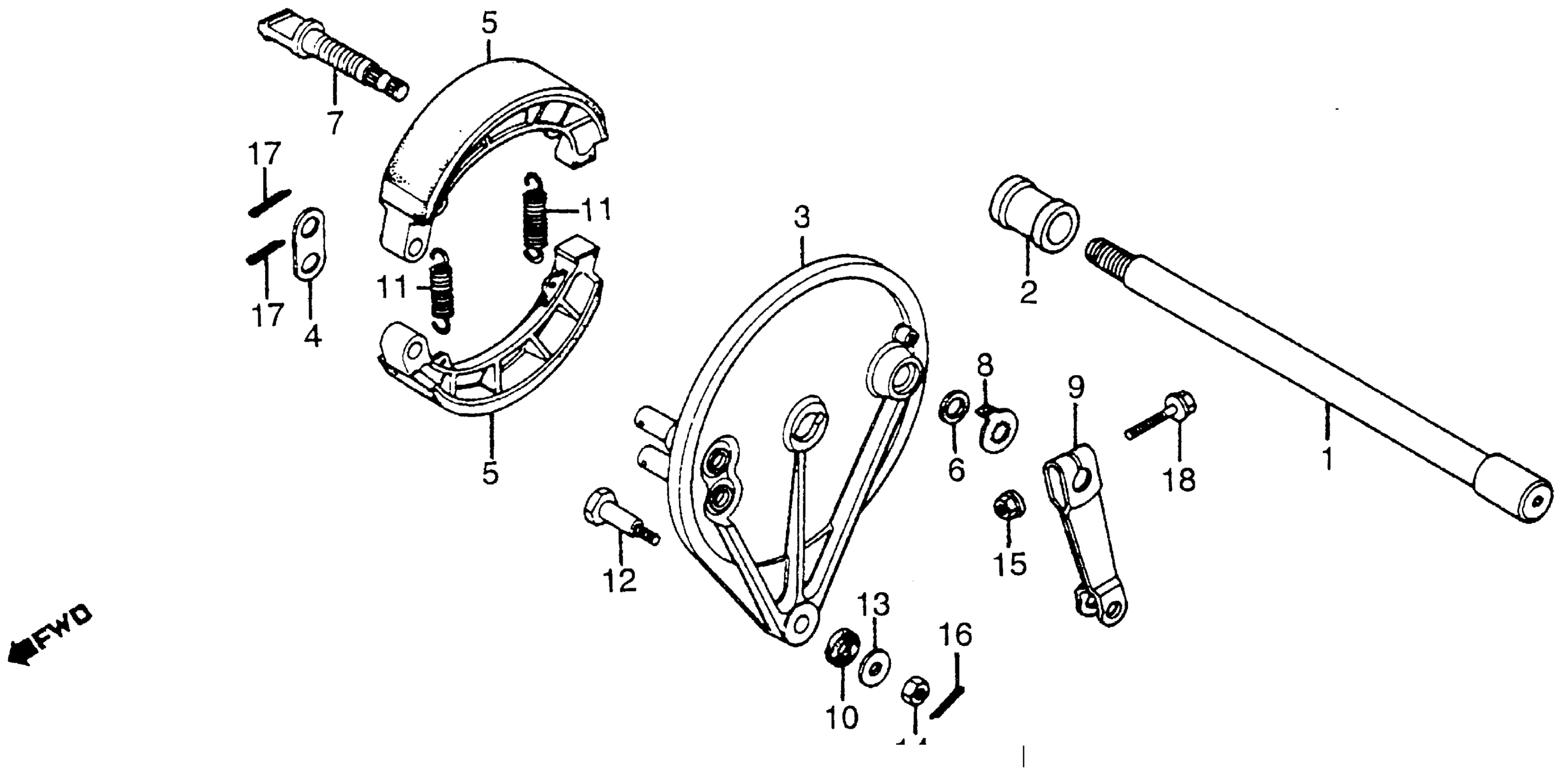

Honda CX650CA (83) CUSTOM, JPN, VIN# JH2RC110-DM000018 TO JH2RC110-DM010120 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE KIT, BRAKE

06430-MW3-671

$45.18

NI

SHOE KIT, BRAKE This part replaces 06430-415-000.

06430-MW3-671

$45.18

NI

SHOE KIT, BRAKE This part replaces 431A2-415-000.

06430-MW3-671

$45.18

1

AXLE, RR. WHEEL

42301-ME8-000

Unavailable

2

COLLAR, RR. AXLE SIDE

42313-ME8-000

Unavailable

3

PANEL, RR.

43100-ME2-000

Unavailable

4

WASHER, ANCHOR PIN

43102-319-000

$5.77

4

WASHER, ANCHOR PIN This part replaces 43106-222-300.

43102-319-000

$5.77

5

SHOE, BRAKE

43120-MW3-671

$42.84

5

SHOE, BRAKE This part replaces 43120-415-000.

43120-MW3-671

$42.84

6

DUST SEAL, BRAKE CAM

43134-300-000

$2.00

7

CAM, RR. BRAKE This part replaces 43141-MB0-000.

43141-MB0-010

$37.36

7

CAM, RR. BRAKE

43141-MB0-010

$37.36

8

INDICATOR, RR. BRAKE (NOT AVAILABLE)

43145-415-000

Unavailable

9

ARM, RR. BRAKE (NOT AVAILABLE)

43410-415-750

Unavailable

10

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.75

11

SPRING, FR. BRAKE SHOE

45133-329-000

$2.62

12

BOLT, RR. BRAKE STOPPER

90127-393-000

$4.53

13

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.26

13

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.26

14

NUT, HEX. (8MM)

94001-08000-0S

$1.19

15

NUT, FLANGE (8MM)

94050-08000

$0.86

16

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$0.94

16

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$0.94

16

PIN, SPLIT (2.0X22)

94201-20220

$0.94

16

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$0.94

16

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$0.94

16

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$0.94

16

PIN, COTTER (2.0X35)

94201-20350

$0.94

16

PIN, COTTER (2.0X22)

94201-29220

$0.94

17

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$0.94

17

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$0.94

17

PIN, SPLIT (2.5X30)

94201-25300

$0.94

18

BOLT, FLANGE (8X40) This part replaces 95700-08040-00.

95701-08040-00

$1.14

18

BOLT, FLANGE (8X40)

95701-08040-00

$1.14
