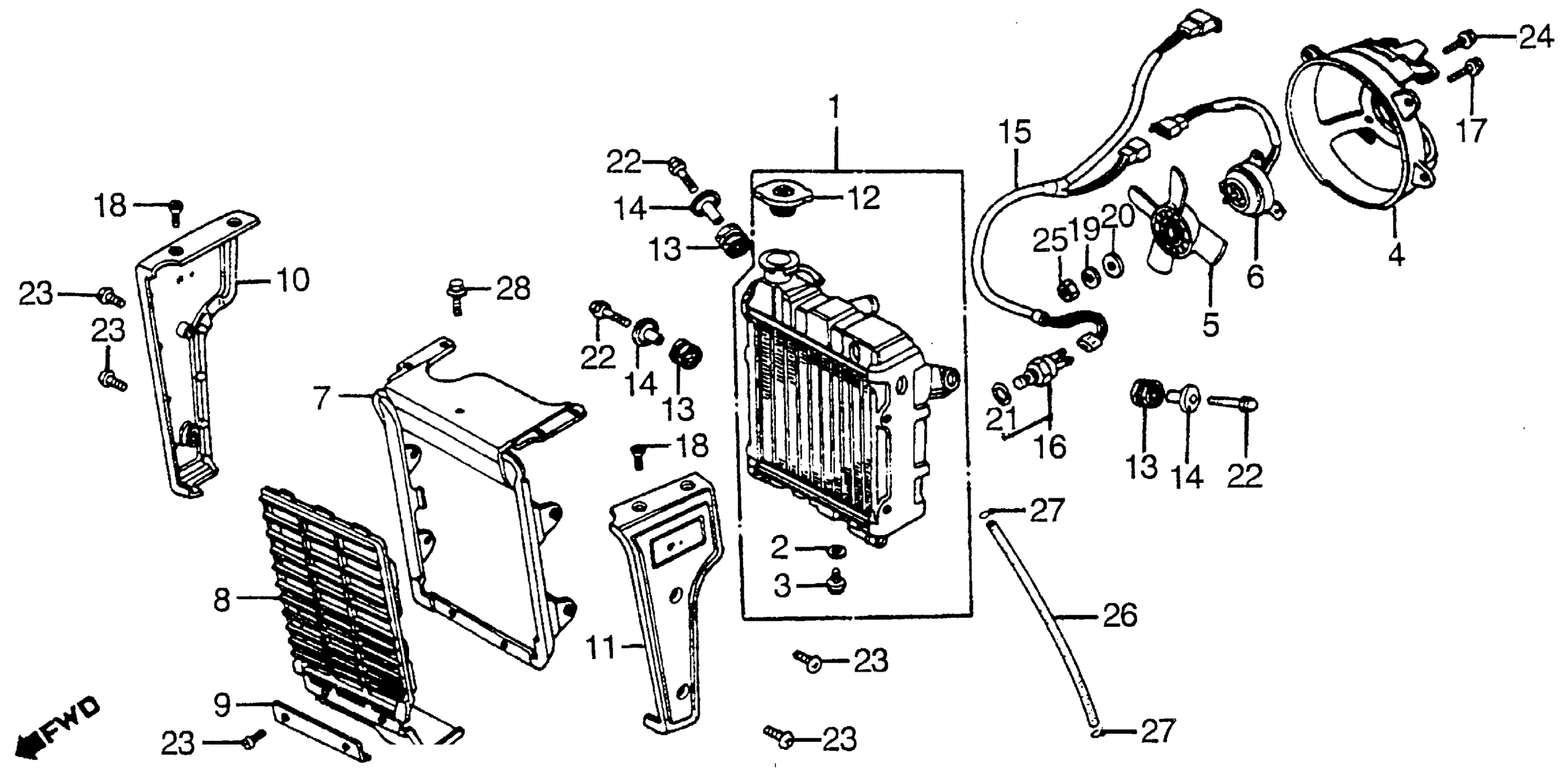

Honda CX650CA (83) CUSTOM, JPN, VIN# JH2RC110-DM000018 TO JH2RC110-DM010120 RADIATOR + COOLING FAN Diagram

#

Description
Price

1

RADIATOR (NOT AVAILABLE)

19010-ME2-003

Unavailable

2

GASKET, DRAIN This part replaces 19012-PA0-003.

19012-ZB5-003

Unavailable

2

GASKET, DRAIN

19012-ZB5-003

Unavailable

3

VALVE, DRAIN

19013-415-004

Unavailable

4

SHROUD (NOT AVAILABLE)

19015-ME2-003

Unavailable

5

FAN, COOLING

19020-ME2-003

Unavailable

6

MOTOR, FAN (NOT AVAILABLE)

19030-ME2-003

Unavailable

7

COVER, RADIATOR

19031-ME8-000

Unavailable

8

GRILLE, RADIATOR (NOT AVAILABLE)

19032-ME2-000

Unavailable

9

COVER, RADIATOR (LOWER)

19033-470-670

Unavailable

10

PLATE, R. RADIATOR SIDE

19035-ME8-000

Unavailable

11

PLATE, L. RADIATOR SIDE (NOT AVAILABLE)

19036-ME8-000

Unavailable

12

CAP, RADIATOR (DENSO) This part replaces 19045-PA0-014.

19045-692-003

$37.56

12

CAP, RADIATOR (DENSO) This part replaces 19045-449-770.

19045-692-003

$37.56

12

CAP, RADIATOR (DENSO) This part replaces 19045-634-003.

19045-692-003

$37.56

12

CAP, RADIATOR (DENSO)

19045-692-003

$37.56

13

RUBBER, RADIATOR SETTING (NOT AVAILABLE)

19115-415-000

Unavailable

14

COLLAR, RADIATOR MOUNTING (NOT AVAILABLE)

19119-449-000

Unavailable

15

SUB-WIRE HARNESS A

32102-ME8-000

Unavailable

16

SWITCH ASSY., THERMO

37760-MC7-003

Unavailable

17

BOLT-WASHER (6x10) (DENSO) (NOT AVAILABLE)

90042-679-003

Unavailable

18

SCREW, FLAT (6X12) (NOT AVAILABLE) This part replaces 90138-415-840.

93600-06012-0B

Unavailable

19

WASHER, SPRING (5MM) (NOT AVAILABLE)

90401-679-003

$1.70

20

WASHER, PLAIN (5MM) This part replaces 90402-679-003.

94103-05800

$1.49

20

WASHER, PLAIN (5MM)

94103-05800

$1.49

21

O-RING (13.5X1.4)

91307-PH7-660

$2.83

21

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

22

BOLT, CAP (6X32)

92600-06032-0B

Unavailable

23

SCREW, PAN (6X12)

93500-06012-4J

$1.49

24

SCREW-WASHER (5X10)

93893-05010-08

$1.49

25

NUT, HEX. (5MM)

94001-050800S

$1.49

26

BULK HOSE, FUEL (7.5X8000) (7.3X350)

95001-75008-60M

$103.82

27

CLIP, TUBE (B12)

95002-02120

$2.00

28

BOLT, FLANGE (6X10) This part replaces 96000-06010-02.

96001-06010-02

$1.54

28

BOLT, FLANGE (6X10)

96001-06010-02

$1.54
