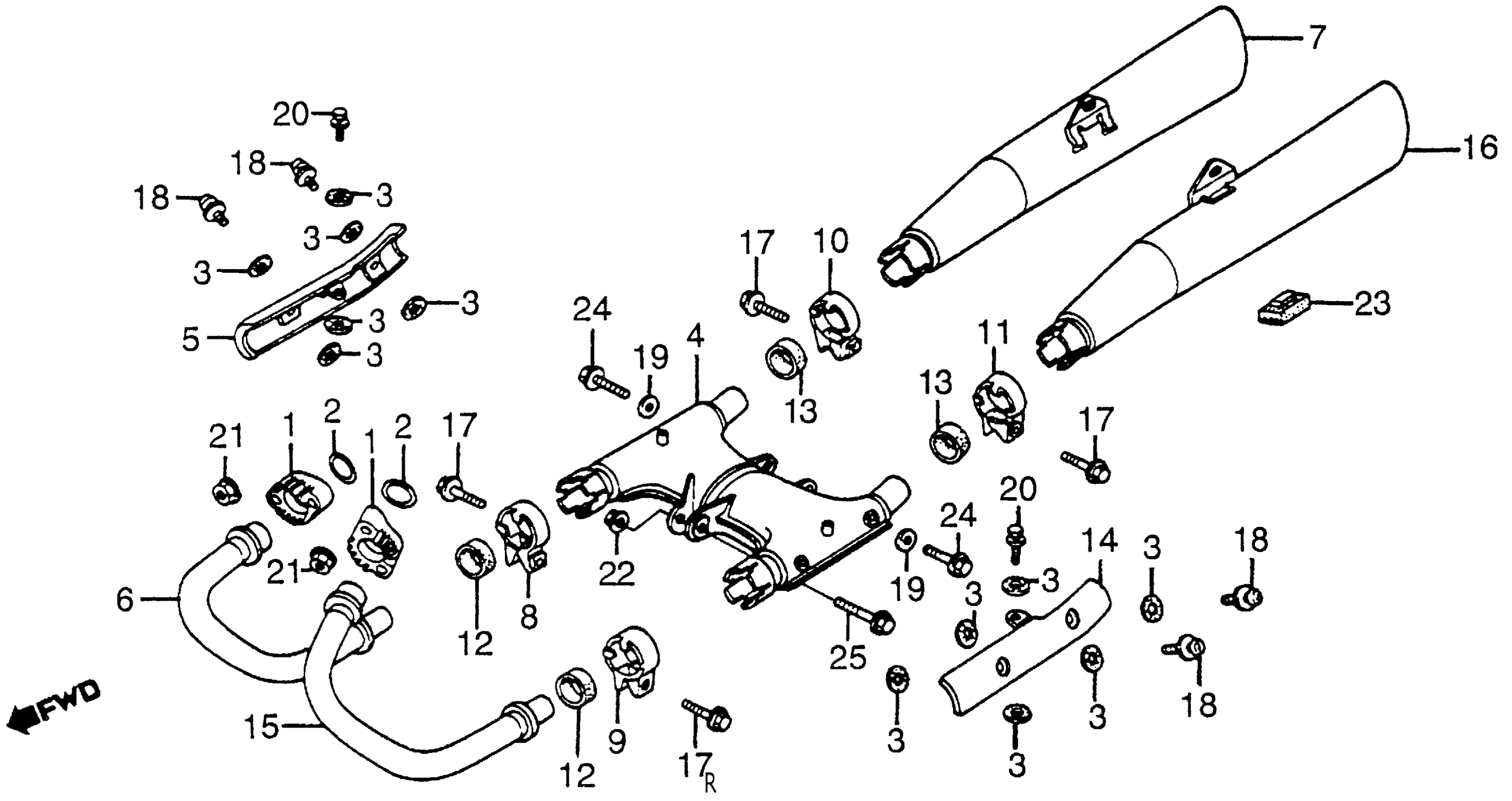

Honda CX650CA (83) CUSTOM, JPN, VIN# JH2RC110-DM000018 TO JH2RC110-DM010120 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE (NOT AVAILABLE)

18231-415-000

Unavailable

2

GASKET, EX. PIPE This part replaces 18291-286-000.

18291-286-306

$6.69

2

GASKET, EX. PIPE

18291-286-306

$6.69

3

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$2.81

3

GASKET, PROTECTOR

18292-MM9-740

$2.81

3

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$2.81

4

PRE CHAMBER This part replaces 18310-ME8-671.

18310-ME8-611

Unavailable

5

PROTECTOR, R. CHAMBER (NOT AVAILABLE)

18315-ME8-003

Unavailable

6

PIPE, R. EX. This part replaces 18320-ME8-671.

18320-ME8-611

Unavailable

7

MUFFLER, R. This part replaces 18330-ME8-671.

18330-ME8-405

Unavailable

8

BAND, R. FR. MUFFLER

18373-413-000

$35.45

9

BAND, L. FR. MUFFLER

18374-413-000

$35.45

10

BAND, R. RR. MUFFLER

18375-413-000

$36.49

11

BAND, RR. MUFFLER

18376-413-000

$32.96

12

GASKET, MUFFLER This part replaces 18391-317-000.

18392-MK4-000

$12.26

12

GASKET, MUFFLER This part replaces 18391-317-010.

18392-MK4-000

$12.26

12

GASKET, MUFFLER

18392-MK4-000

$12.26

13

GASKET, MUFFLER

18392-MG7-750

$12.26

13

GASKET, MUFFLER This part replaces 18392-413-000.

18392-MG7-750

$12.26

14

PROTECTOR, L. CHAMBER (NOT AVAILABLE)

18415-ME8-003

Unavailable

15

PIPE, L. EX. This part replaces 18420-ME8-671.

18420-ME8-611

Unavailable

16

MUFFLER, L. This part replaces 18430-ME8-671.

18430-ME8-405

Unavailable

17

BOLT, FLANGE (8X37)

90118-471-000

$2.96

18

SCREW-WASHER

90136-415-750

Unavailable

19

WASHER, LOCK

90401-MA1-000

$5.78

20

BOLT-WASHER (6X12)

93401-06012-00

$1.48

20

BOLT-WASHER (6X12) This part replaces 93491-06012-00.

93401-06012-00

$1.48

21

NUT, FLANGE (6MM)

94050-06000

$0.59

22

NUT, FLANGE (8MM)

94050-08080

$0.86

23

RUBBER A, STAND STOPPER

95011-61000

$1.13

24

BOLT, FLANGE (8X20) This part replaces 95700-08020-08.

95701-08020-08

$1.43

24

BOLT, FLANGE (8X20)

95701-08020-08

$1.43

24

BOLT, FLANGE (8X20) This part replaces 95701-08020-18.

95701-08020-08

$1.43

25

BOLT, FLANGE (8X50) This part replaces 95700-08050-08.

95701-08050-08

$2.17

25

BOLT, FLANGE (8X50)

95701-08050-08

$2.17
