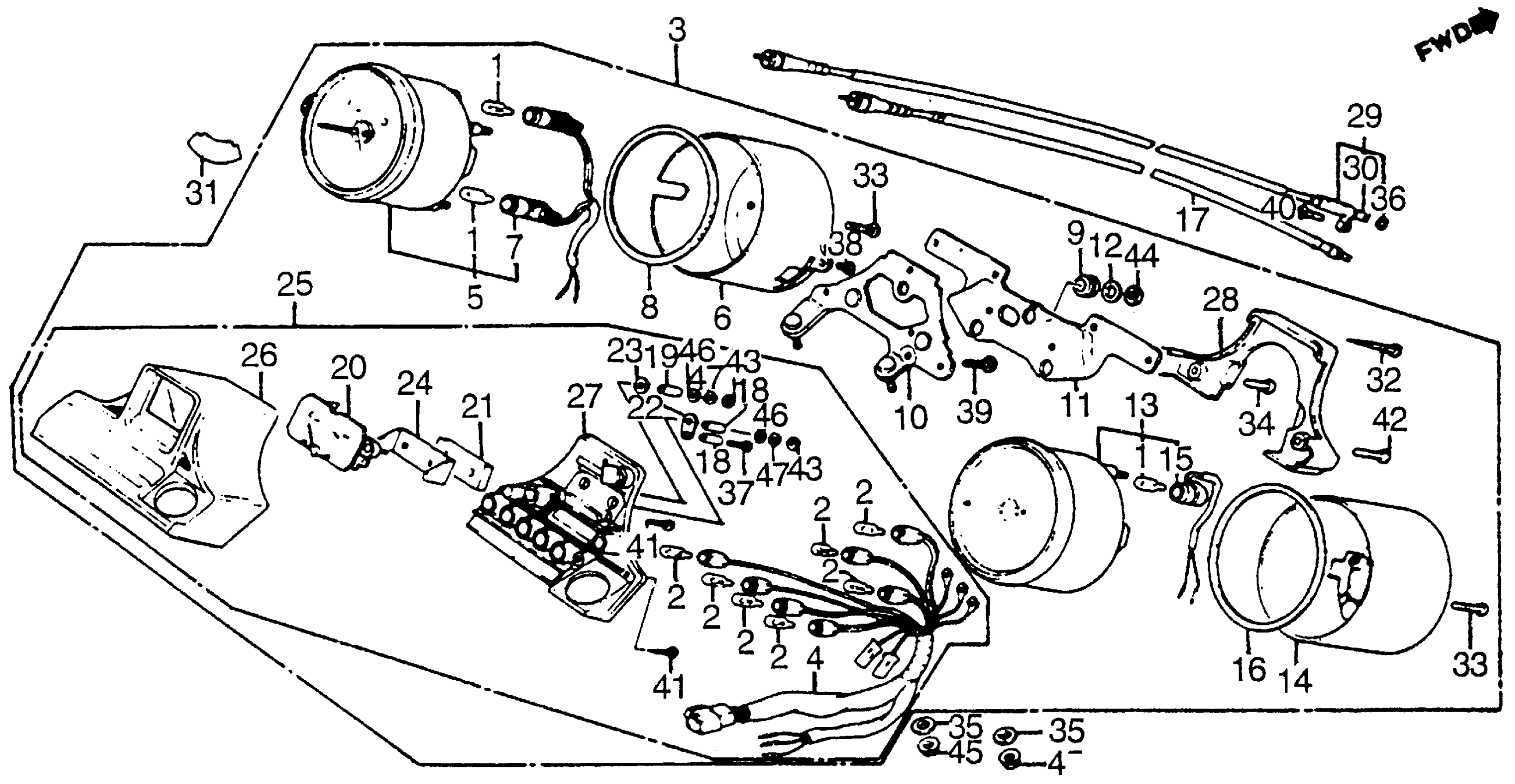

Honda CX650CA (83) CUSTOM, JPN, VIN# JH2RC110-DM000018 TO JH2RC110-DM010120 INSTRUMENTS Diagram

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

BULB 12V 2.3W WED This part replaces 34908-MB0-000.

34275-S2X-003

$3.28

BULB 12V 2.3W WED This part replaces 34908-MB0-003.

34275-S2X-003

$3.28

BULB 12V 2.3W WED This part replaces 34908-MB0-005.

34275-S2X-003

$3.28

METER ASSY., COMBINATION (NOT AVAILABLE)

37100-ME8-671

Unavailable

WIRE, PILOT

37105-ME8-671

Unavailable

SPEEDOMETER ASSY. (MPH) (NOT AVAILABLE) This part replaces 37200-ME8-671.

37200-ME4-671

Unavailable

COVER, SPEEDOMETER (NOT AVAILABLE)

37202-ME8-008

Unavailable

SOCKET, SPEEDOMETER

37203-ME8-008

Unavailable

RUBBER, SPEEDOMETER

37204-ME8-008

Unavailable

RUBBER, BRACKET MOUNTING (NOT AVAILABLE)

37205-ME8-008

Unavailable

BRACKET A, METER

37211-ME8-008

Unavailable

BRACKET B, METER

37212-ME8-008

Unavailable

WASHER, PLAIN

37244-MA6-008

$2.15

TACHOMETER ASSY. This part replaces 37250-ME8-671.

37250-ME8-611

Unavailable

COVER, TACHOMETER (NOT AVAILABLE)

37252-ME8-008

Unavailable

SOCKET, TACHOMETER

37253-ME8-008

Unavailable

RUBBER, TACHOMETER

37254-ME8-008

Unavailable

CABLE ASSY., TACHOMETER

37260-ME8-000

Unavailable

COLLAR B, TEMPERATURE METER

37314-ME8-000

Unavailable

COLLAR A, TEMPERATURE METER

37315-ME8-000

Unavailable

METER ASSY., TEMPERATURE This part replaces 37450-ME8-008.

37450-ME8-018

Unavailable

METER ASSY., TEMPERATURE

37450-ME8-018

Unavailable

RUBBER, TEMPERATURE METER

37453-ME8-008

Unavailable

RUBBER A, TEMPERATURE METER SETTING

37454-ME8-008

Unavailable

RUBBER B, TEMPERATURE METER SETTING (NOT AVAILABLE)

37455-ME8-008

Unavailable

PLATE, TEMPERATURE METER SETTING

37456-ME8-008

Unavailable

BOX ASSY., PILOT

37600-ME8-671

Unavailable

CASE ASSY., PILOT (UPPER) (NOT AVAILABLE)

37601-ME8-671

Unavailable

CASE ASSY., PILOT (LOWER)

37602-ME8-671

Unavailable

COVER, PILOT BOX (LOWER)

37617-ME8-008

Unavailable

CABLE ASSY., SPEEDOMETER

44830-ME5-405

$30.35

CABLE ASSY., SPEEDOMETER This part replaces 44830-ME5-850.

44830-ME5-405

$30.35

CABLE ASSY., SPEEDOMETER This part replaces 44830-ME8-000.

44830-ME5-405

$30.35

CABLE ASSY., SPEEDOMETER This part replaces 44830-MF5-000.

44830-ME5-405

$30.35

CABLE (INNER)

44831-KM1-000

Unavailable

CABLE (INNER) This part replaces 44831-ME1-670.

44831-KM1-000

Unavailable

LABEL, BREAK IN CAUTION

87523-413-710

Unavailable

SCREW, TAPPING (4X40) (NOT AVAILABLE)

90105-ME8-000

Unavailable

SCREW, TRUSS (4X16) (NOT AVAILABLE)

90106-ME8-000

Unavailable

SCREW, TRUSS (4X35)

90107-ME8-000

Unavailable

WASHER, SPECIAL (6MM)

90438-671-000

$4.80

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

SCREW, PAN (3X16)

93500-03016-3J

Unavailable

SCREW, PAN (4X6)

93500-04006-0A

$1.49

SCREW, PAN (4X6) This part replaces 93500-04006-1A.

93500-04006-0A

$1.49

SCREW, PAN (4X30)

93500-04030-0A

$1.49

SCREW, PAN (4X30) This part replaces 93500-04030-1A.

93500-04030-0A

$1.49

SCREW, OVAL (5X16)

93700-05016-0G

$1.49

SCREW, TAPPING (3X20)

93901-22510

Unavailable

SCREW, TAPPING (4X16)

93903-24480

$1.49

NUT, HEX. (4MM)

94002-04000-0S

$1.49

NUT, HEX. (6MM)

94002-06070-0S

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (4MM)

94101-04000

$1.49

WASHER, SPRING (4MM)

94111-04000

$1.49
