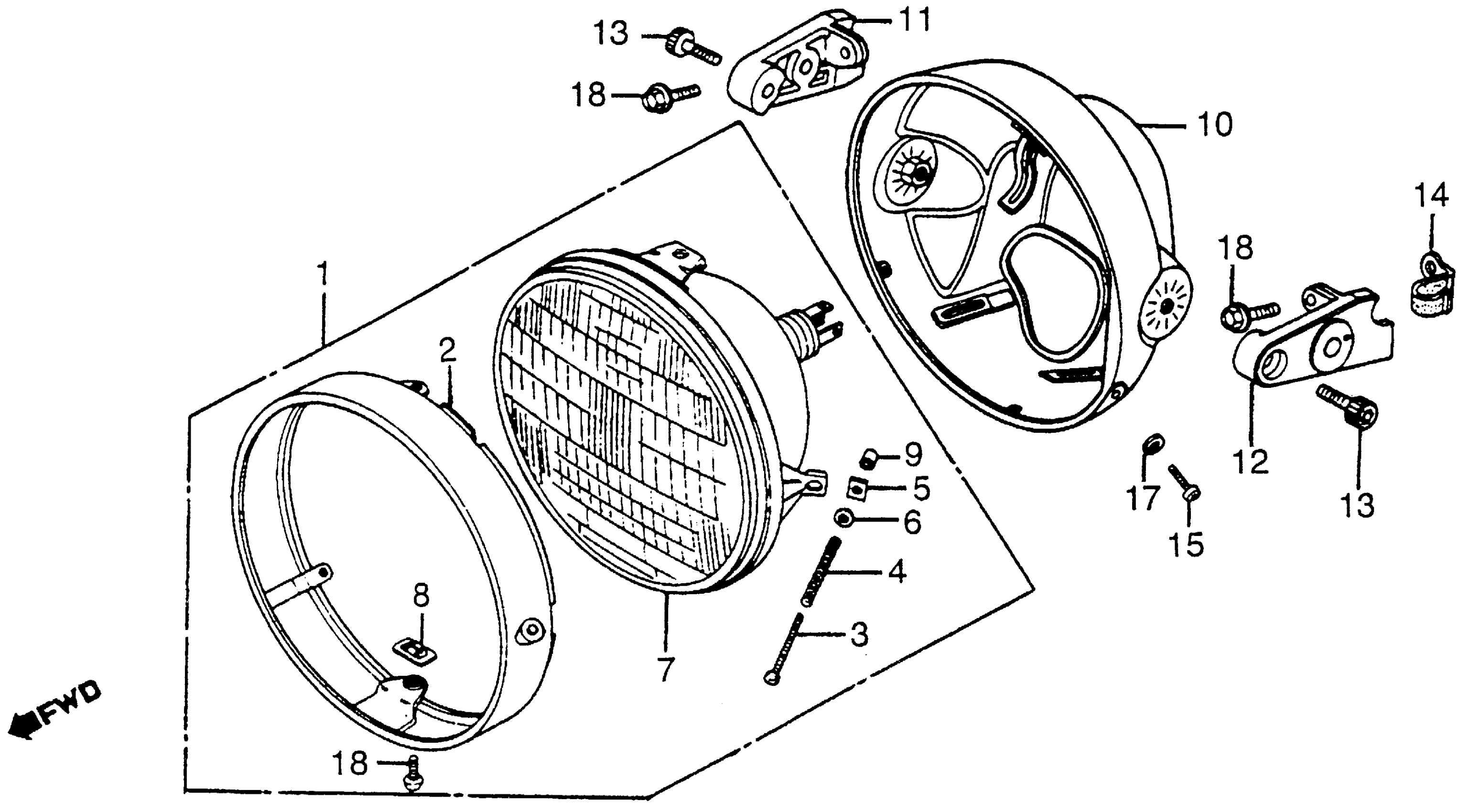

Honda CX650CA (83) CUSTOM, JPN, VIN# JH2RC110-DM000018 TO JH2RC110-DM010120 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY. (12V 60/55W) This part replaces 33100-ME8-670.

33100-MF5-840

Unavailable

1

HEADLIGHT ASSY. (12V 60/55W)

33100-MF5-840

Unavailable

2

RIM, HEADLIGHT

33101-MB1-003

Unavailable

3

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.90

4

SPRING, HEADLIGHT BEAM ADJUSTING This part replaces 33107-MB1-671.

33107-333-000

$2.20

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-333-000

$2.20

5

NUT, BEAM ADJUSTING (STANLEY)

33117-415-003

$2.23

6

WASHER, BEAM ADJUSTING

33119-371-003

$2.84

7

HEADLIGHT UNIT This part replaces 33120-MB1-671.

33120-MF5-751

Unavailable

7

HEADLIGHT UNIT This part replaces 33120-ME9-670.

33120-MF5-751

Unavailable

7

HEADLIGHT UNIT

33120-MF5-751

Unavailable

8

NUT, UNIT HOLDER

33128-292-670

$2.94

9

COVER, SCREW

33136-426-830

$1.89

10

CASE, HEADLIGHT (NOT AVAILABLE)

61301-ME8-000

Unavailable

11

STAY, R. HEADLIGHT (NOT AVAILABLE)

61312-ME8-000

Unavailable

12

STAY, L. HEADLIGHT

61313-ME8-000

Unavailable

13

BOLT, SOCKET (8X22)

90119-KV0-000

Unavailable

13

BOLT, SOCKET (8X22) This part replaces 90119-MB4-000.

90119-KV0-000

Unavailable

14

CLAMP, CLUTCH CABLE

91406-ME8-000

Unavailable

15

SCREW, PAN (5X8)

93500-05008-0H

$1.49

16

SCREW, PAN (5X12)

93500-05012-0B

$1.49

17

WASHER, SPRING (5MM)

94111-05000

$1.49

18

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

18

BOLT, FLANGE (8X20)

95701-08020-00

$1.78
