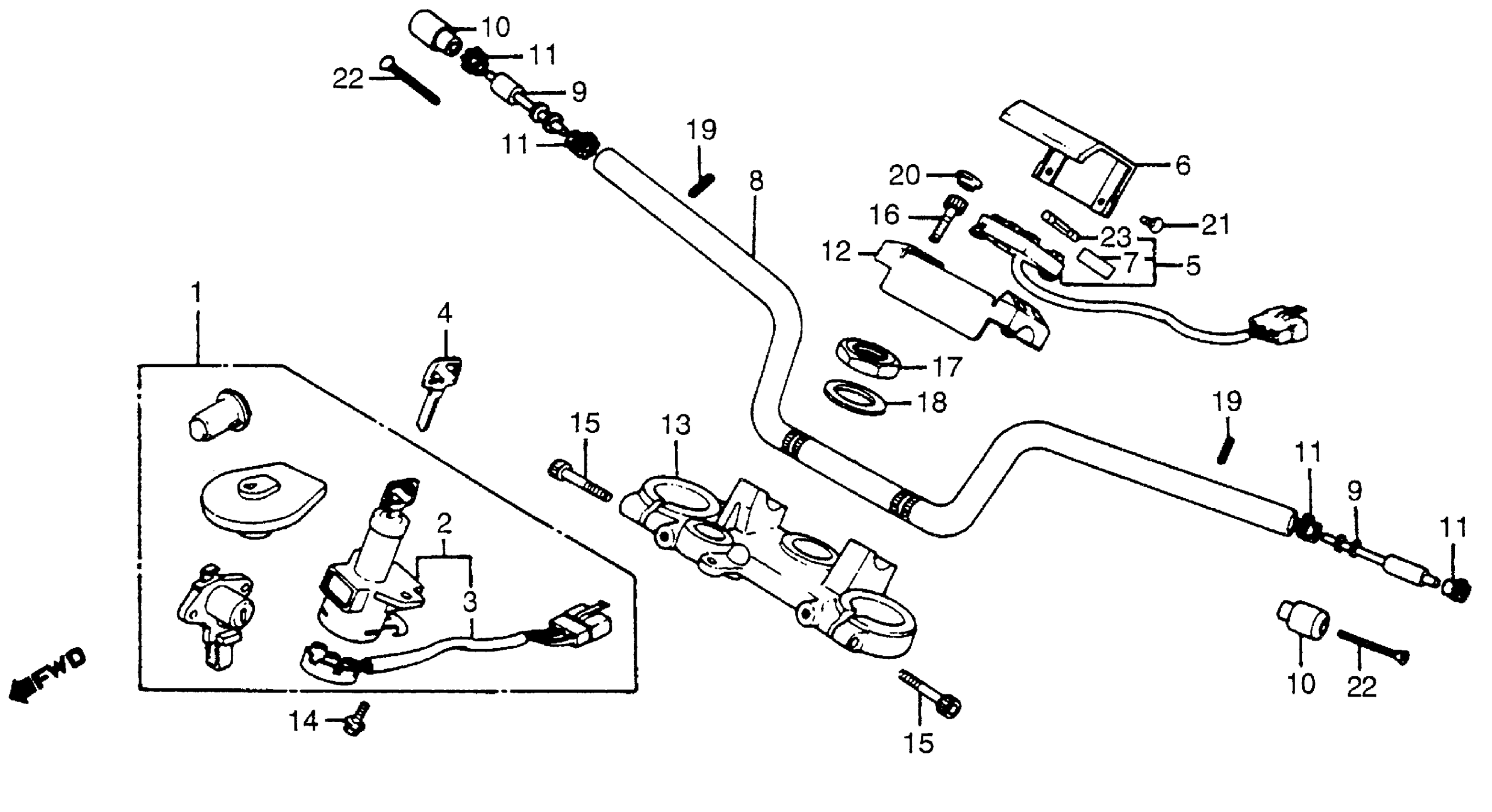

Honda CX650CA (83) CUSTOM, JPN, VIN# JH2RC110-DM000018 TO JH2RC110-DM010120 HANDLEBAR + TOP BRIDGE + KEY SET Diagram

LOCK SET (NOT AVAILABLE) This part replaces 35010-ME8-000.

35010-ME8-010

Unavailable

LOCK SET (NOT AVAILABLE)

35010-ME8-010

Unavailable

SWITCH ASSY., COMBINATION & LOCK (NOT AVAILABLE)

35100-ME8-000

Unavailable

BASE, CONTACT This part replaces 35101-MA6-007.

35101-MC5-000

Unavailable

BASE, CONTACT

35101-MC5-000

Unavailable

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-KW3-771

$10.10

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MA6-811.

35121-KW3-771

$10.10

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-KW3-771

$10.10

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MA6-811.

35122-KW3-771

$10.10

PLATE ASSY., FUSE (NOT AVAILABLE)

38200-ME8-000

Unavailable

COVER, FUSE

38210-ME8-000

Unavailable

LABEL, FUSE (NOT AVAILABLE)

38215-MG5-670

Unavailable

HANDLEBAR (NOT AVAILABLE)

53100-ME8-670

Unavailable

WEIGHT B, HANDLEBAR

53101-MC7-000

Unavailable

WEIGHT, HANDLE (NOT AVAILABLE)

53104-ME8-670

Unavailable

RUBBER, HANDLE WEIGHT

53107-121-730

Unavailable

HOLDER, HANDLEBAR (UPPER) (NOT AVAILABLE) This part replaces 53131-ME8-000.

53131-MF5-750

Unavailable

HOLDER, HANDLEBAR (UPPER) (NOT AVAILABLE)

53131-MF5-750

Unavailable

BRIDGE, FORK TOP

53230-ME8-000

Unavailable

BOLT, FLANGE (8X19) (NOT AVAILABLE)

90105-KB7-000

Unavailable

BOLT, SOCKET (7X32)

90151-MB1-000

$6.52

BOLT, SOCKET (8X32)

90154-ME9-000

$5.73

NUT, STEERING STEM

90304-KA2-000

Unavailable

WASHER, STEERING STEM (NOT AVAILABLE)

90503-428-900

Unavailable

PIN, SPRING (4X21) (NOT AVAILABLE)

90751-ME8-670

Unavailable

CAP, SOCKET BOLT (8MM) This part replaces 91455-MB0-000.

91455-MB0-010

$3.77

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77

SCREW, FLAT (5X8)

93600-05008-0G

$1.49

SCREW, OVAL (6X60)

93700-06060-0B

Unavailable

FUSE B (15A)

98200-21500

$1.49
