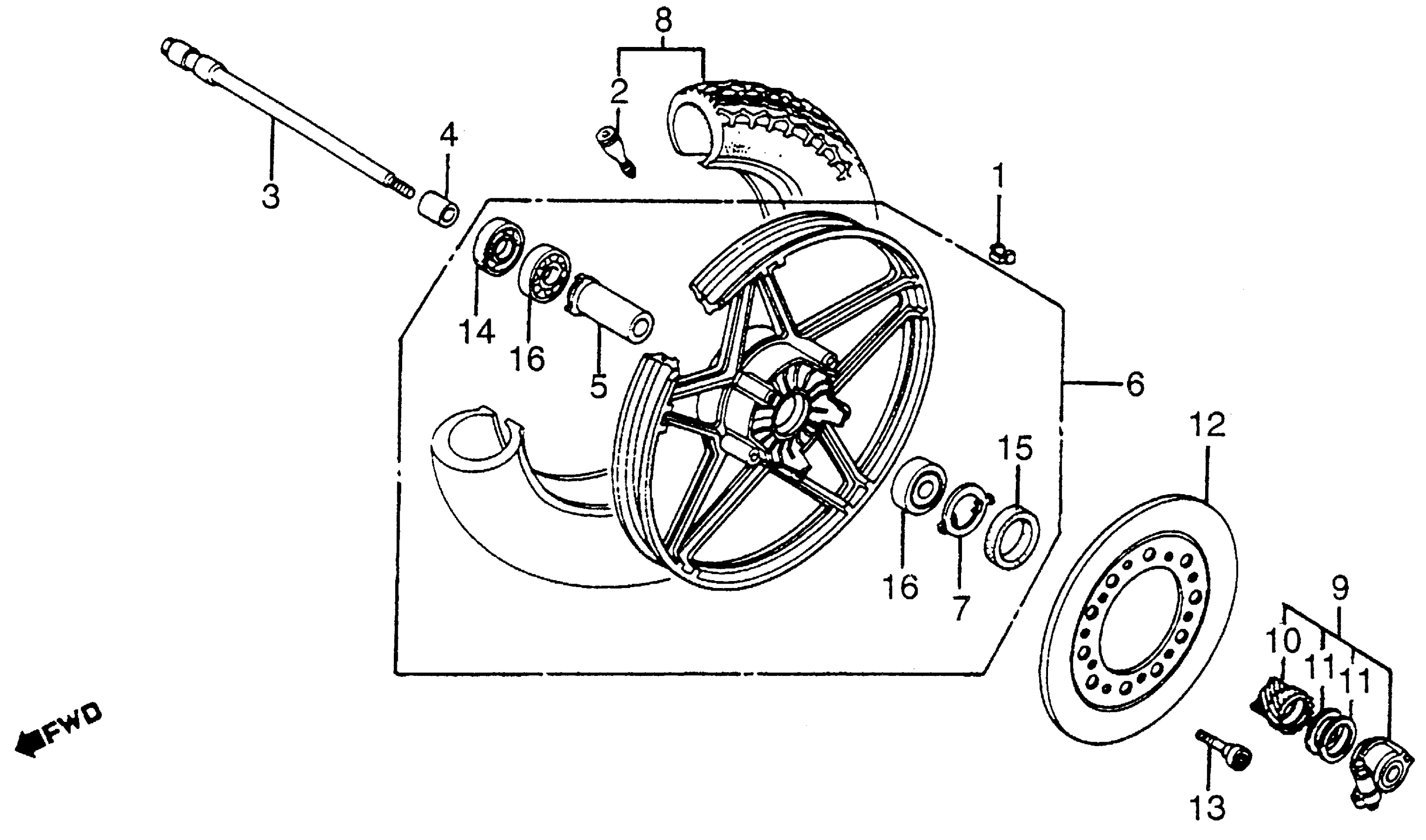

Honda CX650CA (83) CUSTOM, JPN, VIN# JH2RC110-DM000018 TO JH2RC110-DM010120 FRONT WHEEL + DISC Diagram

#

Description
Price

1

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

1

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

1

WEIGHT, BALANCE (20G)

42705-MCF-D60

$15.38

1

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

2

VALVE, RIM (BS)

42753-425-003

$11.00

2

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

3

AXLE, FR. WHEEL

44301-461-770

Unavailable

4

COLLAR, FR. WHEEL SIDE This part replaces 44311-461-770.

44311-460-840

Unavailable

5

COLLAR, FR. AXLE DISTANCE

44620-MB0-000

Unavailable

6

WHEEL, FR.

44650-ME8-305

Unavailable

7

RETAINER, GEAR BOX

44680-410-000

$5.80

8

TIRE ASSY., FR. (100/90-19) (57H) (DUNLOP) (NOT AVAILABLE) This part replaces 44710-ME8-671.

44710-ME8-672

Unavailable

8

TIRE ASSY., FR. (100/90-19) (57H) (DUNLOP) (NOT AVAILABLE)

44710-ME8-672

Unavailable

9

BOX ASSY., SPEEDOMETER GEAR

44800-MB0-013

$115.81

10

GEAR, SPEEDOMETER

44806-MB0-003

$38.85

11

WASHER, SPEEDOMETER GEAR

44809-402-000

$2.34

12

DISK, FR. BRAKE

45251-KW9-970

Unavailable

12

DISK, FR. BRAKE This part replaces 45251-MF5-000.

45251-KW9-970

Unavailable

13

BOLT, FR. DISK (8X33) This part replaces 90105-MB0-000.

90105-MB0-010

Unavailable

13

BOLT, FR. DISK (8X33)

90105-MB0-010

Unavailable

14

DUST SEAL (22X42X7) (ARAI)

91252-MC7-003

$7.46

15

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

16

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
