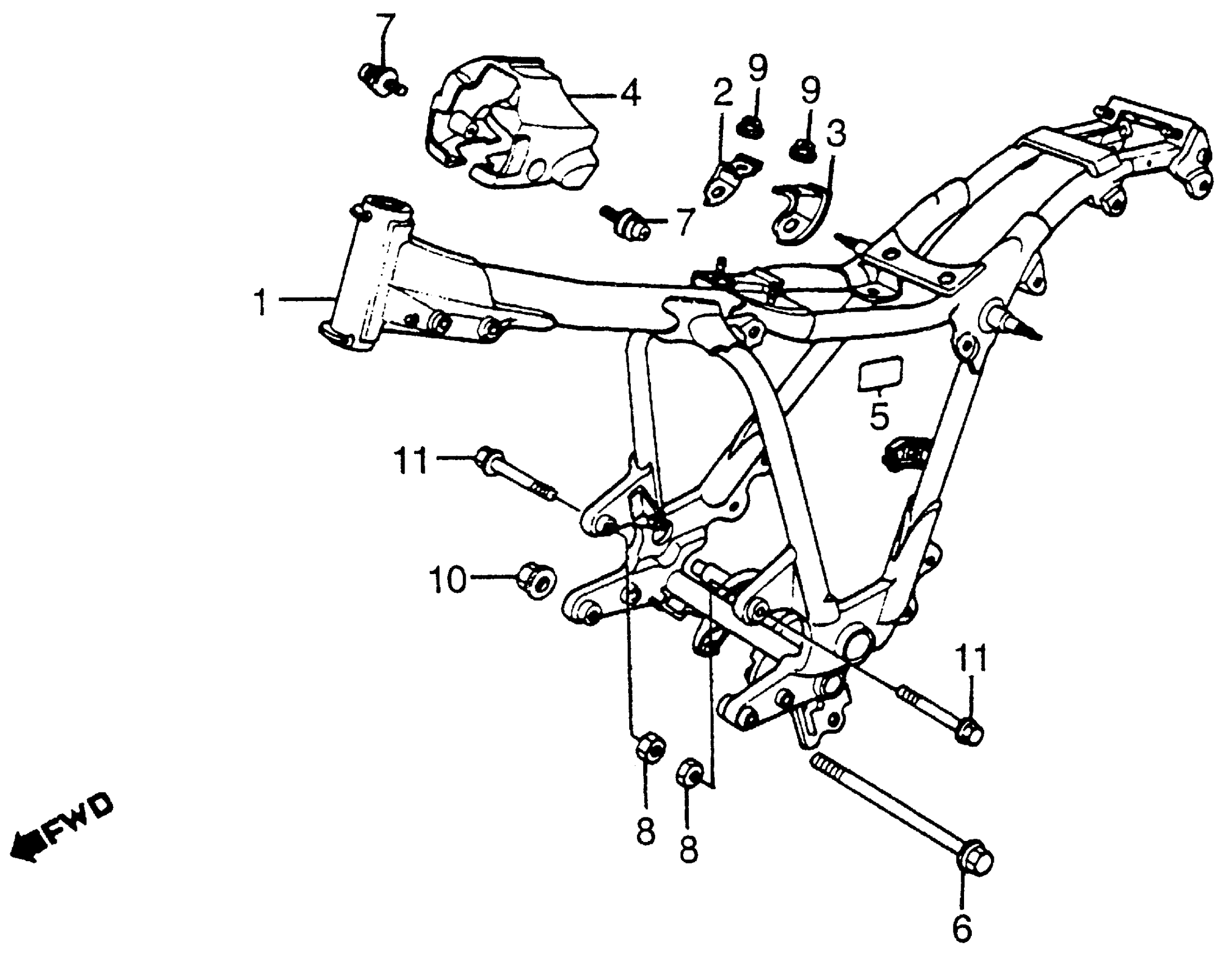

Honda CX650CA (83) CUSTOM, JPN, VIN# JH2RC110-DM000018 TO JH2RC110-DM010120 FRAME Diagram

#

Description
Price

1

FRAME

50100-ME8-670

Unavailable

2

STAY, R. SIDE COVER

50128-ME8-000

Unavailable

3

STAY, L. SIDE COVER

50129-ME8-000

Unavailable

4

COVER, FR. SIDE

63500-ME8-000

Unavailable

5

LABEL, BATTERY CAUTION (NOT AVAILABLE)

87506-ME8-670

Unavailable

6

BOLT, FLANGE (12X308)

90110-415-000

Unavailable

7

SCREW-WASHER (5X16)

93893-05016-07

$1.30

8

NUT, HEX. (10MM)

94030-10000

$1.29

9

NUT, FLANGE (6MM)

94050-06080

$0.59

10

NUT, FLANGE (12MM)

94050-12000

$0.94

11

BOLT, FLANGE (10X70) This part replaces 95800-10070-00.

95801-10070-00

$1.64

11

BOLT, FLANGE (10X70)

95801-10070-00

$1.64
