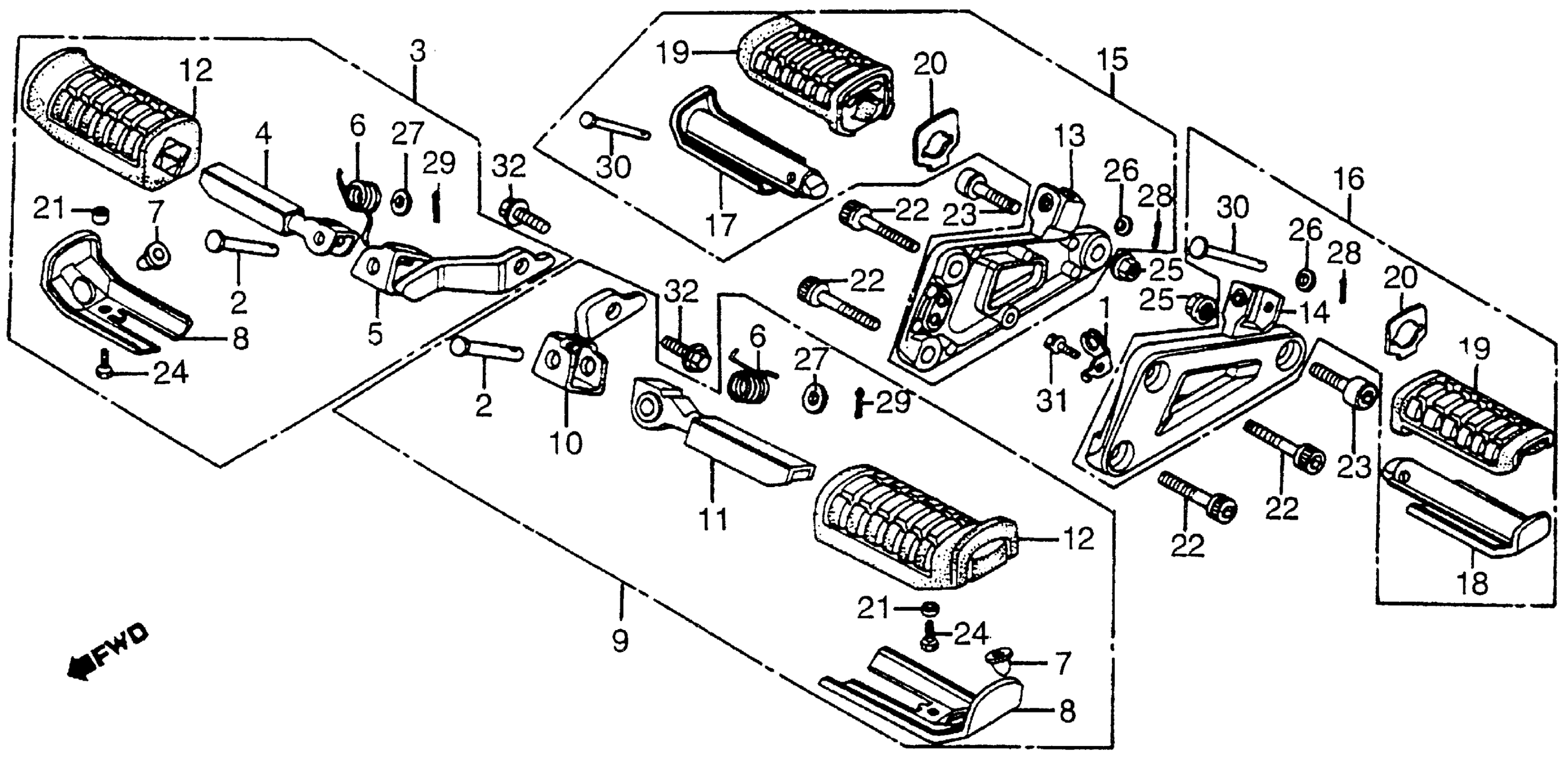

Honda CX650CA (83) CUSTOM, JPN, VIN# JH2RC110-DM000018 TO JH2RC110-DM010120 FOOTPEGS Diagram

#

Description
Price

1

STAY, STOP SWITCH

35358-ME8-000

Unavailable

2

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

2

PIN, STEP BAR JOINT

50603-033-010

$3.30

3

FOOTPEG ASSY., R. MAIN

50610-ME8-000

Unavailable

3

FOOTPEG ASSY., R. MAIN | Use up to Frame SN DM009600

50610-ME8-000

Unavailable

3

FOOTPEG ASSY., R. MAIN | Use up to Frame SN DM009600 This part replaces 50610-ME8-305.

50610-ME8-000

Unavailable

4

BAR, R. FOOTPEG | Use from Frame SN DM009601

50612-ME8-000

Unavailable

4

BAR, R. FOOTPEG | Use up to Frame SN DM009600

50612-ME8-305

Unavailable

5

ARM, R. FOOTPEG

50615-ME8-000

Unavailable

6

SPRING, FOOTPEG RETURN (NOT AVAILABLE)

50617-438-000

Unavailable

7

SLIDER, STEP

50618-MB1-000

$4.13

8

STOPPER, STEP RUBBER

50619-MB0-000

Unavailable

9

FOOTPEG ASSY., L. MAIN | Use from Frame SN DM009601

50620-ME8-000

Unavailable

9

FOOTPEG ASSY., L. MAIN | Use up to Frame SN DM009600

50620-ME8-305

Unavailable

10

ARM, L. FOOTPEG (NOT AVAILABLE)

50625-ME8-000

Unavailable

11

BAR, L. FOOTPEG | Use from Frame SN DM009601

50642-ME8-000

Unavailable

11

BAR, L. FOOTPEG | Use up to Frame SN DM009600

50642-ME8-305

Unavailable

12

RUBBER, FOOTPEG (NOT AVAILABLE) | Use from Frame SN DM009601

50661-ME8-000

Unavailable

12

RUBBER, MAIN FOOTPEG | Use up to Frame SN DM009600

50661-ME8-305

Unavailable

13

HOLDER, R. PILLION FOOTPEG

50680-ME8-000

Unavailable

14

HOLDER, L. PILLION FOOTPEG

50690-ME8-000

Unavailable

15

FOOTPEG ASSY., R. PILLION

50700-ME8-000

Unavailable

16

FOOTPEG ASSY., L. PILLION

50705-ME8-000

Unavailable

17

BAR, R. PILLION STEP

50711-MB1-000

Unavailable

18

BAR, L. PILLION FOOTPEG

50712-MB1-000

Unavailable

19

RUBBER, PILLION STEP

50713-MB1-000

$15.82

20

WASHER, PILLION STEP

50714-MB1-000

Unavailable

21

COLLAR, BUZZER SETTING

61309-303-810

$5.17

22

BOLT, SOCKET (8X28)

90105-MA6-750

$5.43

22

BOLT, SOCKET (8X28) This part replaces 90105-422-000.

90105-MA6-750

$5.43

23

BOLT, SOCKET (10X25)

90117-ME8-000

Unavailable

24

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

24

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

25

NUT, FLANGE (10MM)

94050-10000

$1.59

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

WASHER, PLAIN (8MM)

94101-08000

$1.49

28

PIN, COTTER (1.6X10)

94201-16100

$1.49

29

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

29

PIN, COTTER (1.6X25)

94201-16250

$1.49

30

PIN C, PILLION STEP

95015-83000

$2.41

31

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

31

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

32

BOLT, FLANGE (10X20) This part replaces 95700-10020-00.

95701-10020-00

$2.23

32

BOLT, FLANGE (10X20)

95701-10020-00

$2.23
