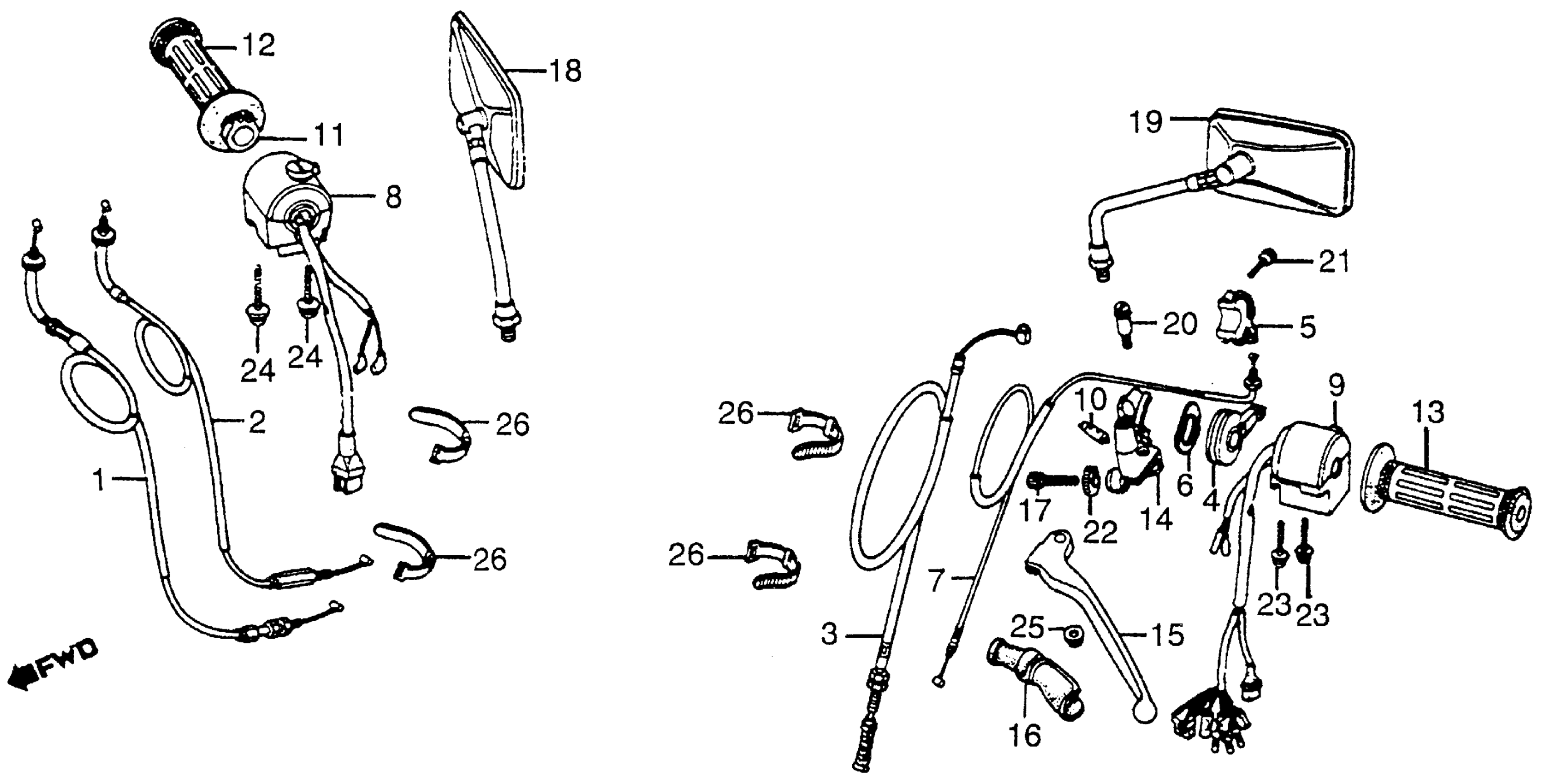

Honda CX650CA (83) CUSTOM, JPN, VIN# JH2RC110-DM000018 TO JH2RC110-DM010120 CONTROL LEVERS + SWITCHES + CABLES Diagram

CABLE A, THROTTLE This part replaces 17910-ME8-000.

17910-KK9-950

Unavailable

CABLE B, THROTTLE (NOT AVAILABLE)

17920-ME8-000

Unavailable

CABLE, CHOKE

17950-ME8-000

Unavailable

LEVER, CHOKE (NOT AVAILABLE)

17962-ME8-000

Unavailable

HOLDER, CHOKE LEVER (NOT AVAILABLE)

17963-ME8-000

Unavailable

WASHER, WAVE (22MM) (NOT AVAILABLE)

17964-ME9-000

Unavailable

CABLE, CLUTCH

22870-ME8-000

Unavailable

SWITCH ASSY., STAR This part replaces 35130-ME8-670.

35130-ME8-305

Unavailable

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-ME8-670

Unavailable

SWITCH, FR. LEVER

35330-413-003

$21.91

PIPE, THROTTLE GRIP

53141-300-010

$20.93

GRIP, R. HANDLE

53165-KR3-680

$11.25

GRIP, R. HANDLE This part replaces 53165-ME8-000.

53165-KR3-680

$11.25

GRIP, L. HANDLE

53166-KR3-680

$11.23

GRIP, L. HANDLE This part replaces 53166-ME8-000.

53166-KR3-680

$11.23

BRACKET, L. HANDLEBAR (NOT AVAILABLE)

53172-ME8-000

Unavailable

LEVER, L. HANDLEBAR

53178-MA6-000

$15.60

LEVER, L. HANDLEBAR This part replaces 53178-MC3-700.

53178-MA6-000

$15.60

LEVER, L. HANDLEBAR This part replaces 53178-422-020.

53178-MA6-000

$15.60

BOOT, HANDLE LEVER

53180-425-010

$18.53

BOLT, CABLE ADJUSTING

53192-422-000

Unavailable

BOLT, CABLE ADJUSTING This part replaces 53192-425-000.

53192-422-000

Unavailable

MIRROR, R. (NOT AVAILABLE)

88110-ME8-003

Unavailable

MIRROR, L. (NOT AVAILABLE)

88120-ME8-003

Unavailable

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

BOLT, SOCKET (6X23)

90117-MB0-000

Unavailable

NUT, FIXING

90321-422-000

Unavailable

SCREW-WASHER (5X30)

93891-05030-07

$1.49

SCREW-WASHER (5X35)

93891-05035-07

$1.49

SCREW-WASHER (5X35) This part replaces 93891-05035-17.

93891-05035-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BAND B1, WIRE

95014-62100

$1.64
