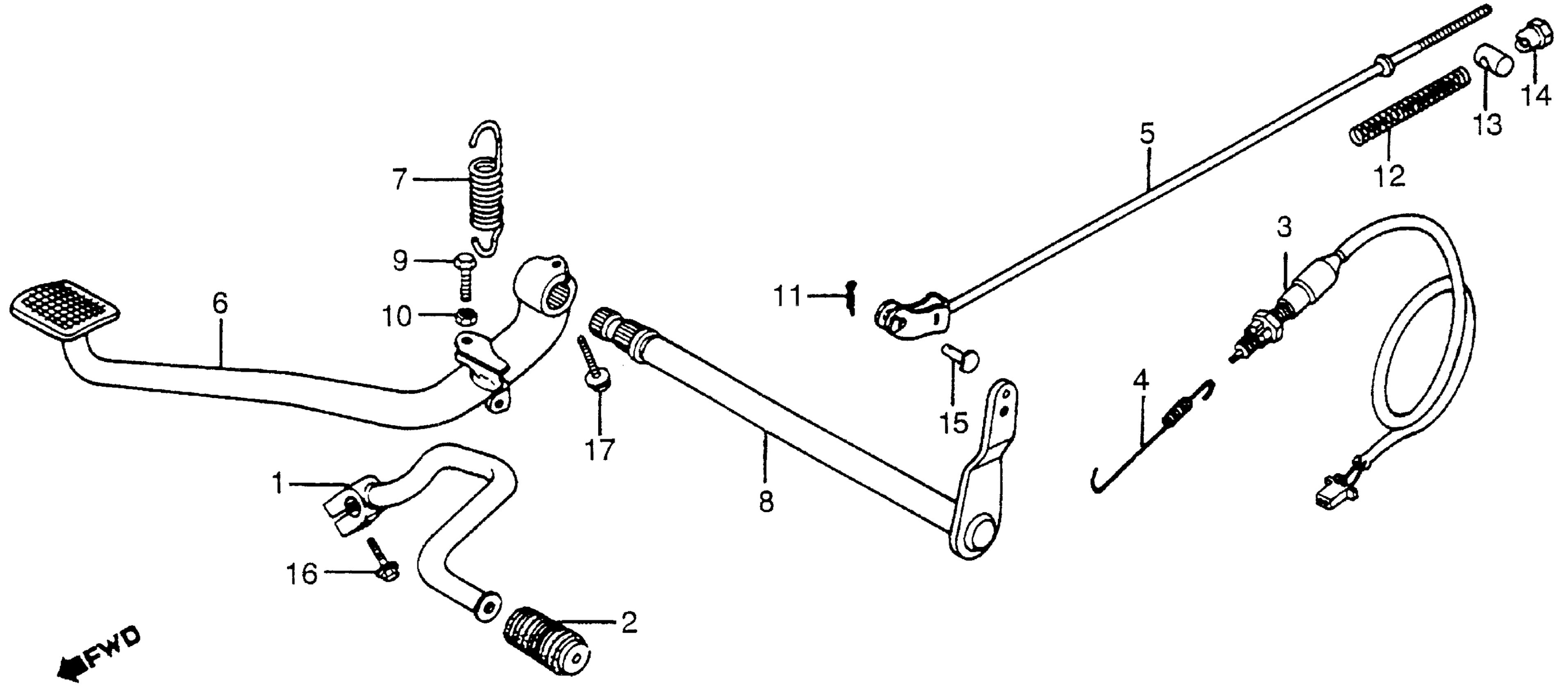

Honda CX650CA (83) CUSTOM, JPN, VIN# JH2RC110-DM000018 TO JH2RC110-DM010120 BRAKE PEDAL + GEARSHIFT PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-ME8-000

Unavailable

2

RUBBER, GEARSHIFT

24781-449-000

$3.57

3

SWITCH ASSY., RR. STOP

35350-KA2-405

$16.22

3

SWITCH ASSY., RR. STOP This part replaces 35350-ME8-000.

35350-KA2-405

$16.22

3

SWITCH ASSY., RR. STOP This part replaces 35350-438-000.

35350-KA2-405

$16.22

4

SPRING, STOP SWITCH (NOT AVAILABLE)

35357-ME8-000

Unavailable

5

ROD, RR. BRAKE

43450-ME8-000

Unavailable

6

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-ME8-000

Unavailable

7

SPRING, BRAKE RETURN This part replaces 46514-ME8-000.

46514-MR1-770

Unavailable

7

SPRING, BRAKE RETURN

46514-MR1-770

Unavailable

8

SHAFT, RR. BRAKE PIVOT

46515-ME8-000

Unavailable

9

BOLT, HEX. (6X40)

92040-06040-0H

Unavailable

10

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

10

NUT, HEX. (6MM)

94001-06200-0S

$1.49

10

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

11

PIN, SPLIT (1.6X12)

94201-16120

$1.49

12

SPRING A, BRAKE ROD

95014-73100

$1.49

13

JOINT B, BRAKE ARM

95015-32001

$1.49

14

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

15

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

16

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

16

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

17

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

17

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
