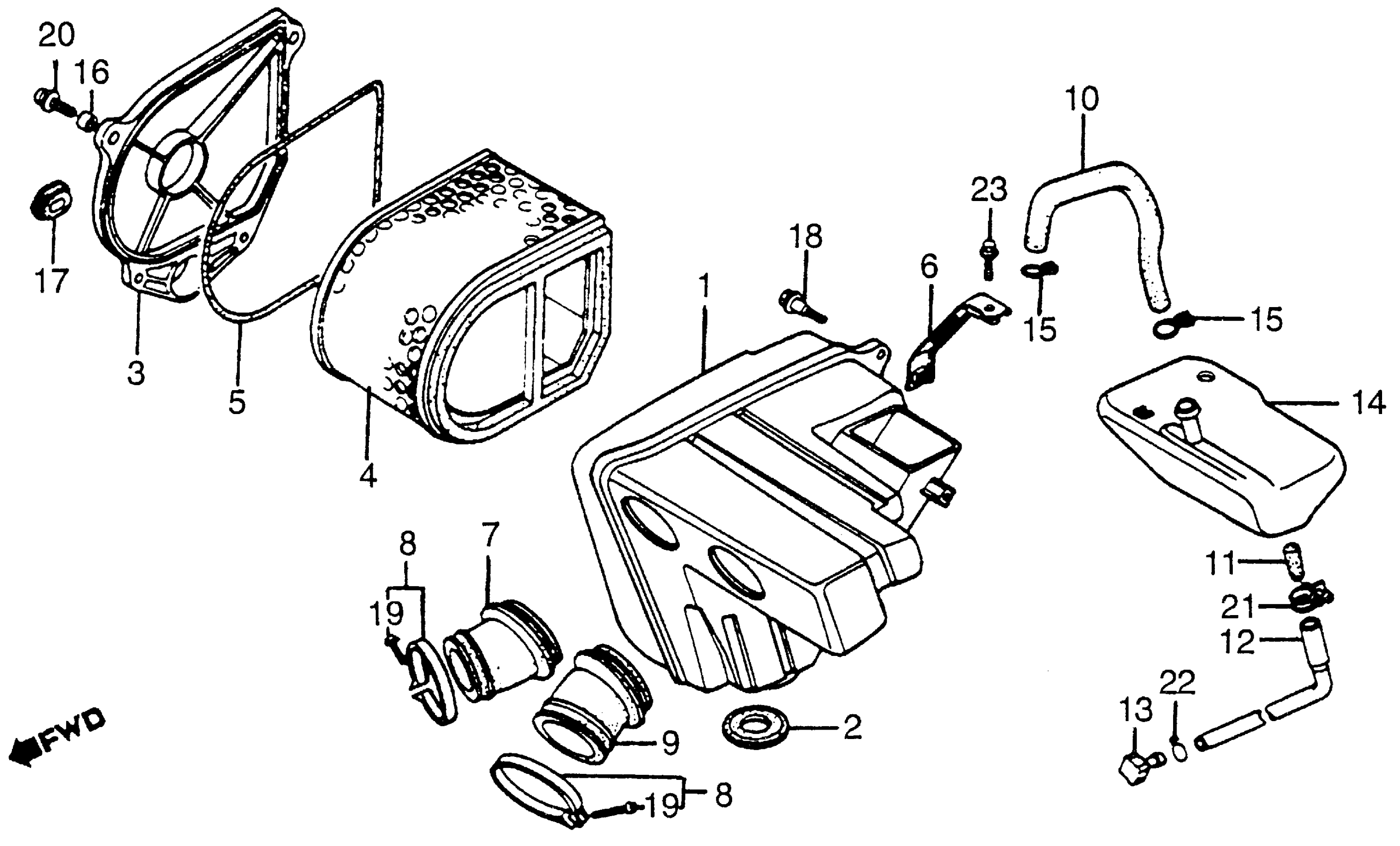

Honda CX650CA (83) CUSTOM, JPN, VIN# JH2RC110-DM000018 TO JH2RC110-DM010120 AIR CLEANER Diagram

#

Description
Price

1

HOUSING, AIR CLEANER (NOT AVAILABLE)

17205-ME8-000

Unavailable

2

RUBBER, BREATHER TANK (NOT AVAILABLE) This part replaces 17211-ME8-000.

17212-MF5-000

Unavailable

2

RUBBER, BREATHER TANK (NOT AVAILABLE)

17212-MF5-000

Unavailable

3

COVER, AIR CLEANER HOUSING (NOT AVAILABLE)

17212-ME8-000

Unavailable

4

ELEMENT, AIR CLEANER

17220-ME8-000

Unavailable

5

SEAL, AIR CLEANER COVER

17222-MN4-405

$7.31

5

SEAL, AIR CLEANER COVER This part replaces 17226-ME8-000.

17222-MN4-405

$7.31

6

STAY, AIR CLEANER HOUSING SETTING

17231-ME8-000

Unavailable

7

TUBE, R. AIR CLEANER CONNECTING (NOT AVAILABLE)

17254-ME8-300

Unavailable

8

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-358-000.

95018-60250

$6.25

8

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-425-010.

95018-60250

$6.25

9

TUBE, L. AIR CLEANER CONNECTING (NOT AVAILABLE)

17264-ME8-300

Unavailable

10

TUBE, BREATHER

17336-ME8-000

Unavailable

11

FILTER (NOT AVAILABLE)

17337-323-300

Unavailable

12

TUBE (NOT AVAILABLE)

17338-ME8-300

Unavailable

13

PLUG, BREATHER TUBE

17370-419-700

$3.74

14

TANK, STORAGE

17551-ME8-000

Unavailable

15

CLIP, AIR HOSE (16MM)

18534-634-670

$5.76

16

COLLAR, CHAIN GUARD (NOT AVAILABLE)

40523-958-000

Unavailable

17

GROMMET, SIDE COVER

83551-MA6-000

$3.35

18

BOLT, FLANGE (6X20)

90113-449-000

$3.19

19

SCREW, PAN (4X25)

93500-04025-0A

$1.93

20

SCREW-WASHER (6X20) (NOT AVAILABLE)

93891-06020-00

Unavailable

21

CLIP, TUBE (A15) (NOT AVAILABLE)

95002-01150

Unavailable

22

CLIP, TUBE (B12.5)

95002-02130

$1.49

23

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

23

BOLT, FLANGE (6X12)

95701-06012-08

$1.67
