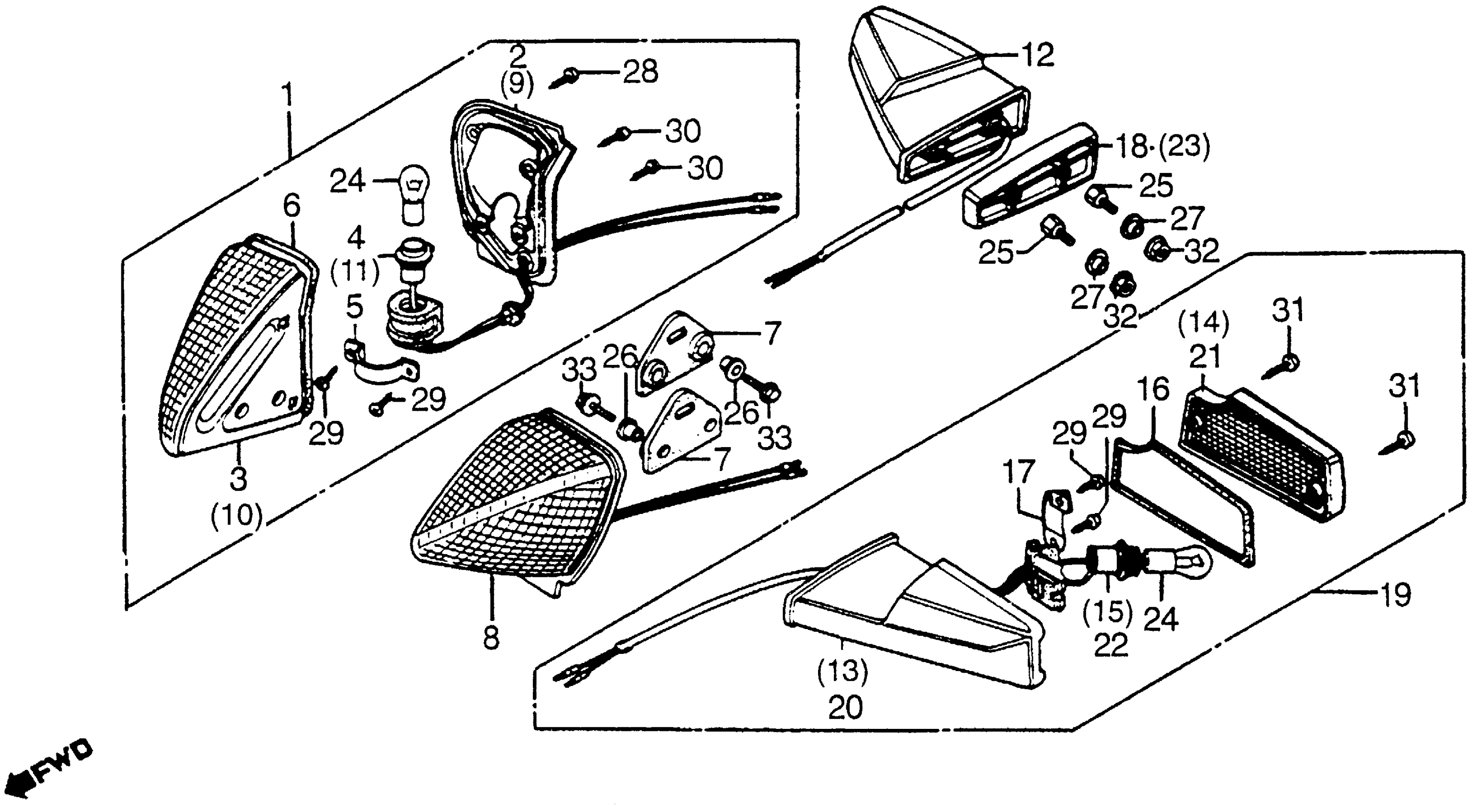

Honda CX500TCA (82) 500 TURBO, JPN, VIN# JH2PC030-CM000017 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR. (NOT AVAILABLE)

33400-MC7-671

Unavailable

2

BASE, R. (NOT AVAILABLE)

33401-MC7-611

Unavailable

3

LENS, R. (NOT AVAILABLE)

33402-MC7-671

Unavailable

4

CABLE, R. (NOT AVAILABLE)

33403-MC7-611

Unavailable

5

HOLDER, SOCKET (NOT AVAILABLE)

33404-MC7-611

Unavailable

6

GASKET, TURN SIGNAL (NOT AVAILABLE)

33405-MC7-611

Unavailable

7

RUBBER, TURN SIGNAL SETTING

33445-MC7-000

Unavailable

8

TURN SIGNAL ASSY., L. FR. (NOT AVAILABLE)

33450-MC7-671

Unavailable

9

BASE, L. (NOT AVAILABLE)

33451-MC7-611

Unavailable

10

LENS, L. (NOT AVAILABLE)

33452-MC7-671

Unavailable

11

CABLE, L. (NOT AVAILABLE)

33453-MC7-611

Unavailable

12

TURN SIGNAL ASSY., R. RR. (NOT AVAILABLE)

33600-MC7-671

Unavailable

13

BASE, R. TURN SIGNAL (NOT AVAILABLE)

33601-MC7-611

Unavailable

14

LENS, R. TURN SIGNAL (NOT AVAILABLE)

33602-MC7-671

Unavailable

15

SOCKET, R. TURN SIGNAL (NOT AVAILABLE)

33603-MC7-671

Unavailable

16

GASKET, TURN SIGNAL (NOT AVAILABLE)

33604-MC7-611

Unavailable

17

HOLDER, SOCKET

33605-MC7-601

Unavailable

17

HOLDER, SOCKET This part replaces 33605-MC7-611.

33605-MC7-601

Unavailable

18

SPACER, R. RR. TURN SIGNAL (NOT AVAILABLE)

33611-MC7-670

Unavailable

19

TURN SIGNAL ASSY., L. RR. (NOT AVAILABLE)

33650-MC7-671

Unavailable

20

BASE, L. TURN SIGNAL (NOT AVAILABLE)

33651-MC7-611

Unavailable

21

LENS, L. TURN SIGNAL (NOT AVAILABLE)

33652-MC7-671

Unavailable

22

SOCKET, L. TURN SIGNAL (NOT AVAILABLE)

33653-MC7-671

Unavailable

23

SPACER, L. RR. TURN SIGNAL (NOT AVAILABLE)

33661-MC7-670

Unavailable

24

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

25

BOLT, RR. TURN SIGNAL (NOT AVAILABLE)

90122-MC7-670

Unavailable

26

COLLAR (6.2X13)

90501-MA3-720

$4.78

27

COLLAR, GEARSHIFT LEVER SETTING

90522-170-700

$1.84

28

SCREW, PAN (4X14)

93500-04014-0G

$1.49

29

SCREW, TAPPING (4X12)

93901-34320

$1.49

30

SCREW, TAPPING (4X16)

93901-34480

$1.49

31

SCREW, TAPPING (4X25)

93901-34680

Unavailable

32

NUT, FLANGE (6MM)

94050-06000

$1.49

33

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

33

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
