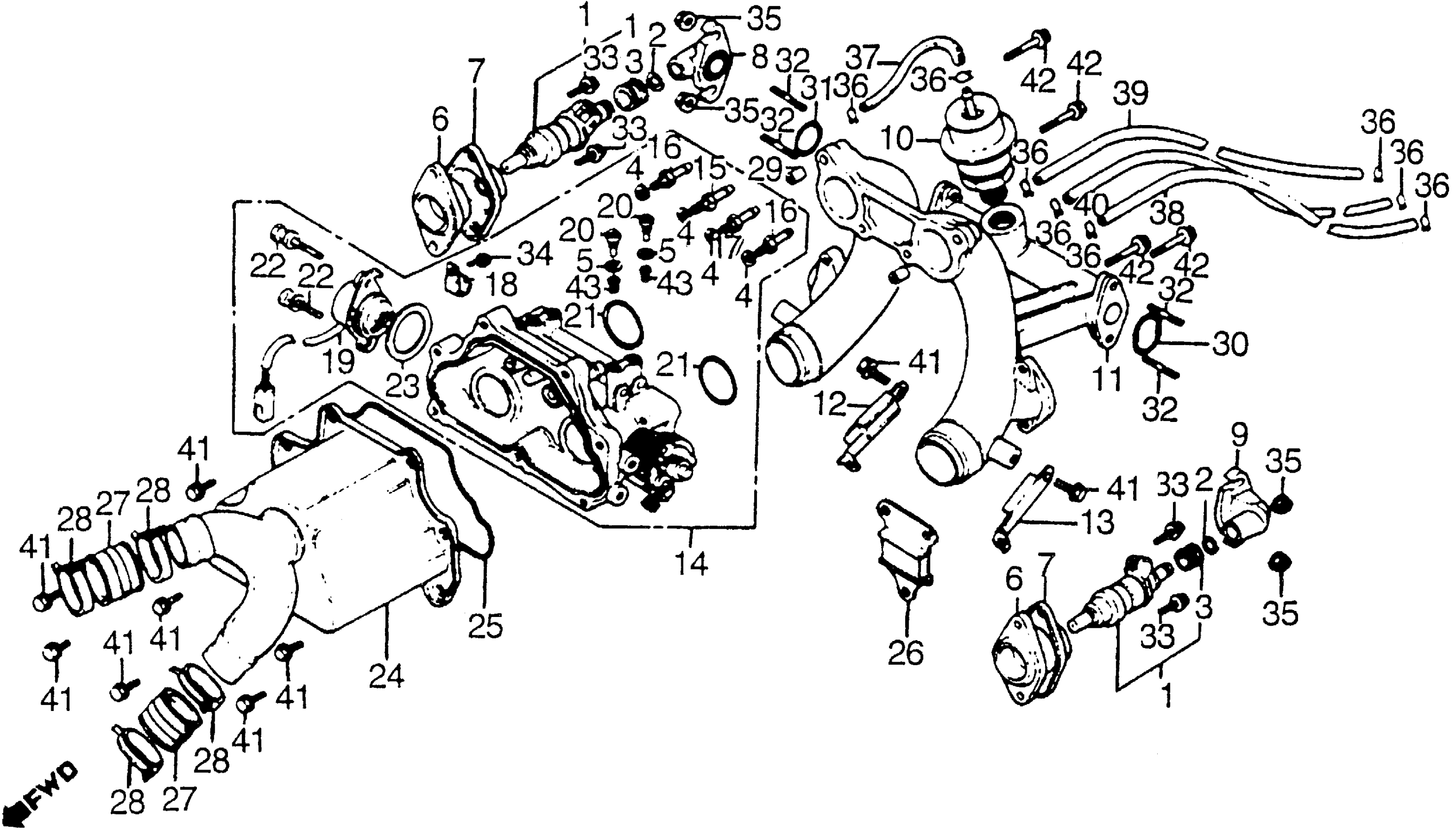

Honda CX500TCA (82) 500 TURBO, JPN, VIN# JH2PC030-CM000017 THROTTLE BODY + INTAKE MANIFOLD Diagram

#

Description
Price

1

INJECTOR ASSY., FUEL (NOT AVAILABLE)

16110-MC7-003

Unavailable

2

O-RING, INJECTOR (7.8X1.7) (NOT AVAILABLE)

16111-MC7-004

Unavailable

3

GROMMET (NOT AVAILABLE)

16112-MC7-003

Unavailable

4

WASHER (NOT AVAILABLE)

16170-300-004

Unavailable

5

WASHER, FIBER

16189-056-004

Unavailable

6

FLANGE, HOLDER (NOT AVAILABLE)

16220-MC7-003

Unavailable

7

COVER, HOLDER (NOT AVAILABLE)

16221-MC7-000

Unavailable

8

CAP, R. INJECTOR

16312-MC7-000

Unavailable

9

CAP, L. INJECTOR

16313-MC7-000

Unavailable

10

REGULATOR ASSY., PRESSURE (NOT AVAILABLE)

16850-MC7-003

Unavailable

11

MANIFOLD, IN.

17110-MC7-000

Unavailable

12

MOUNT, R. IN. SETTING (NOT AVAILABLE)

17123-MC7-000

Unavailable

13

MOUNT, L. IN. SETTING (NOT AVAILABLE)

17124-MC7-000

Unavailable

14

BODY, THROTTLE (NOT AVAILABLE)

17130-MC7-671

Unavailable

15

JOINT, PRESSURE IGNITION SENSOR (NOT AVAILABLE)

17131-MC7-003

Unavailable

16

JOINT, PB SENSOR

17132-MC7-003

Unavailable

17

JOINT, SENSOR (P2) (NOT AVAILABLE)

17133-MC7-003

Unavailable

18

CLIP, THROTTLE SENSOR (NOT AVAILABLE)

17134-MC7-003

Unavailable

19

SENSOR, THROTTLE (NOT AVAILABLE)

17135-MC7-671

Unavailable

20

SCREW, PLUG

17145-MC7-003

Unavailable

21

O-RING (38.8X2.4)

17146-MC7-003

Unavailable

22

BOLT (6X16)

17147-MC7-003

Unavailable

23

GASKET, SENSOR This part replaces 17149-MC7-003.

17149-PH3-005

Unavailable

24

PRE CHAMBER

17150-MC7-000

Unavailable

25

O-RING, CHAMBER (NOT AVAILABLE)

17152-MC7-003

Unavailable

26

RUBBER, CHAMBER SETTING (NOT AVAILABLE)

17161-MC7-000

Unavailable

27

TUBE, RESONATOR CONNECTING (NOT AVAILABLE)

17171-MC7-003

Unavailable

28

BAND, RESONATOR TUBE (NOT AVAILABLE)

17172-MC7-003

Unavailable

29

PIN, DOWEL (8X10)

91103-429-000

$2.56

30

O-RING, SPECIAL (NOT AVAILABLE) This part replaces 91256-MC7-004.

91256-MC7-003

Unavailable

31

O-RING (16.8X2.4)

91256-166-003

$2.39

32

BOLT, STUD (6X16) This part replaces 92700-06028-0B.

92900-06016-0B

$1.49

33

SCREW, PAN (5X18)

93500-05018-0A

$1.49

34

SCREW-WASHER (5X12)

93892-05012-08

$1.49

35

NUT, FLANGE (6MM)

94050-06080

$1.49

36

CLIP, TUBE (B7)

95002-02070

$1.80

37

BULK HOSE, VACUUM (3.5X1000) (3.5X85)

95005-35001-20M

$9.67

38

BULK HOSE, VACUUM (3.5X8000) (3.5X380)

95005-35008-10M

$105.82

39

BULK HOSE, VACUUM (3.5X8000) (3.5X540)

95005-35008-10M

$105.82

40

BULK HOSE, VACUUM (3.5X8000) (3.5X550)

95005-35008-10M

$105.82

41

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

41

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

42

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

42

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

43

JET,MAIN #70 This part replaces 99101-116-0700.

99101-KFV-0700

Unavailable

43

JET,MAIN #70 This part replaces 99102-GHB-0700.

99101-KFV-0700

Unavailable
