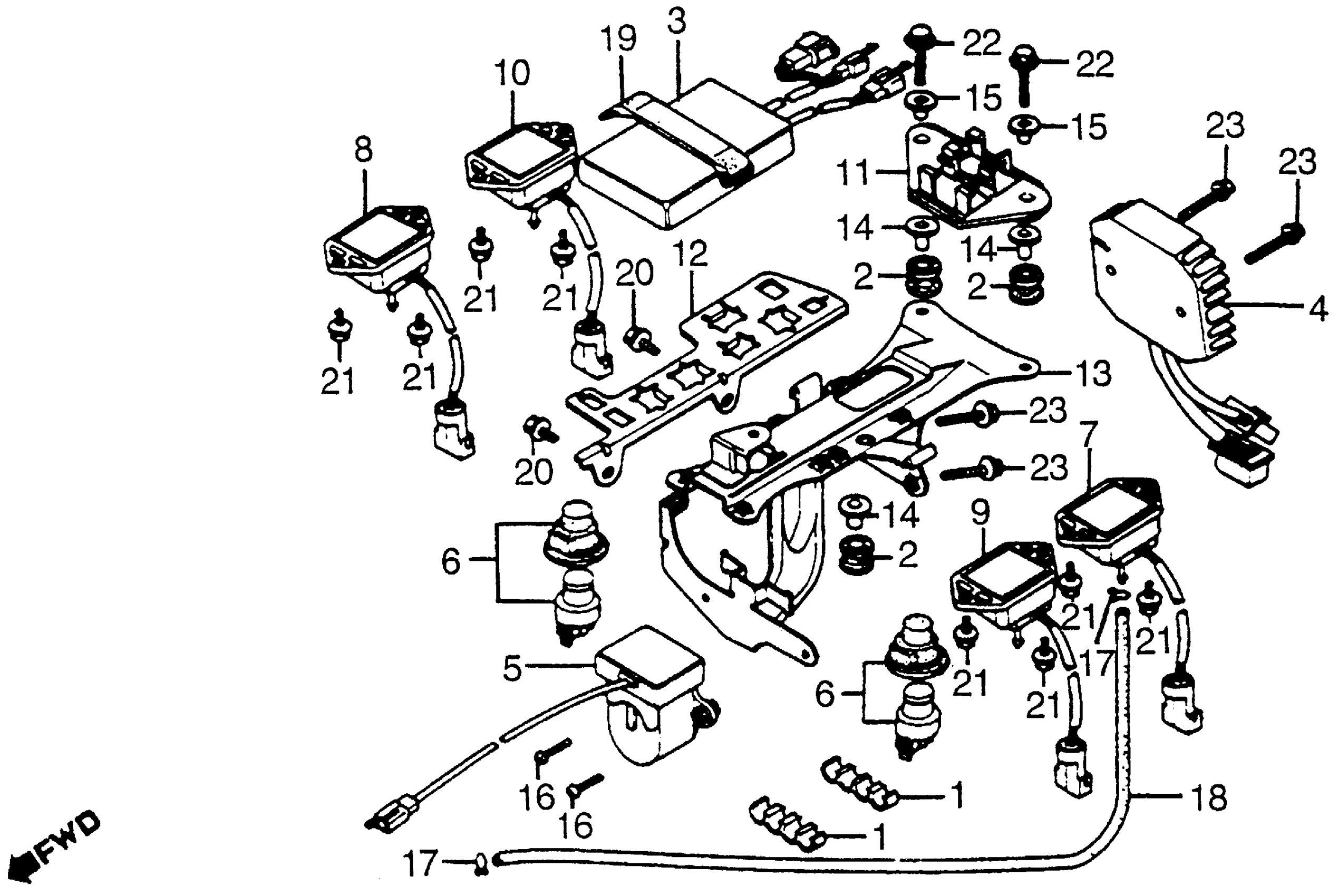

Honda CX500TCA (82) 500 TURBO, JPN, VIN# JH2PC030-CM000017 SPARK UNIT + SENSOR Diagram

#

Description
Price

1

CLIP, SENSOR TUBE

16961-MC7-000

Unavailable

2

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

3

MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)

30400-MC7-005

Unavailable

4

RECTIFIER ASSY. (NOT AVAILABLE)

31600-MC7-008

Unavailable

5

SENSOR ASSY., ENGINE STOP SWITCH (NOT AVAILABLE)

35160-MC7-003

Unavailable

6

RELAY, MAIN

36130-MC7-003

Unavailable

7

SENSOR 1, PRESSURE

36161-MC7-003

Unavailable

8

SENSOR 2, PRESSURE (NOT AVAILABLE)

36171-MC7-003

Unavailable

9

SENSOR, PRESSURE BOOST

36181-MC7-003

Unavailable

10

SENSOR, PRESSURE IGNITION (NOT AVAILABLE)

36191-MC7-003

Unavailable

11

STAY, CONNECTOR IGNITION

50324-MC7-000

Unavailable

12

STAY, CONNECTOR

50326-MC7-000

Unavailable

13

STAY, ELECTRIC

50327-MC7-000

Unavailable

14

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

14

COLLAR, RR. FENDER

61105-428-000

Unavailable

15

COLLAR (NOT AVAILABLE)

80112-443-850

Unavailable

16

SCREW, PAN (4X18)

93500-04018-0A

$1.49

17

CLIP, TUBE (B7)

95002-02070

$1.80

18

BULK HOSE, VACUUM (3.5X1000) (3.5X940)

95005-35001-20M

$9.67

19

BAND B2, BATTERY This part replaces 95012-13000.

95012-13001

$5.28

19

BAND B2, BATTERY

95012-13001

$5.28

20

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

20

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

21

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

21

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

22

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

22

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

23

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

23

BOLT, FLANGE (6X35)

95701-06035-00

$1.80
