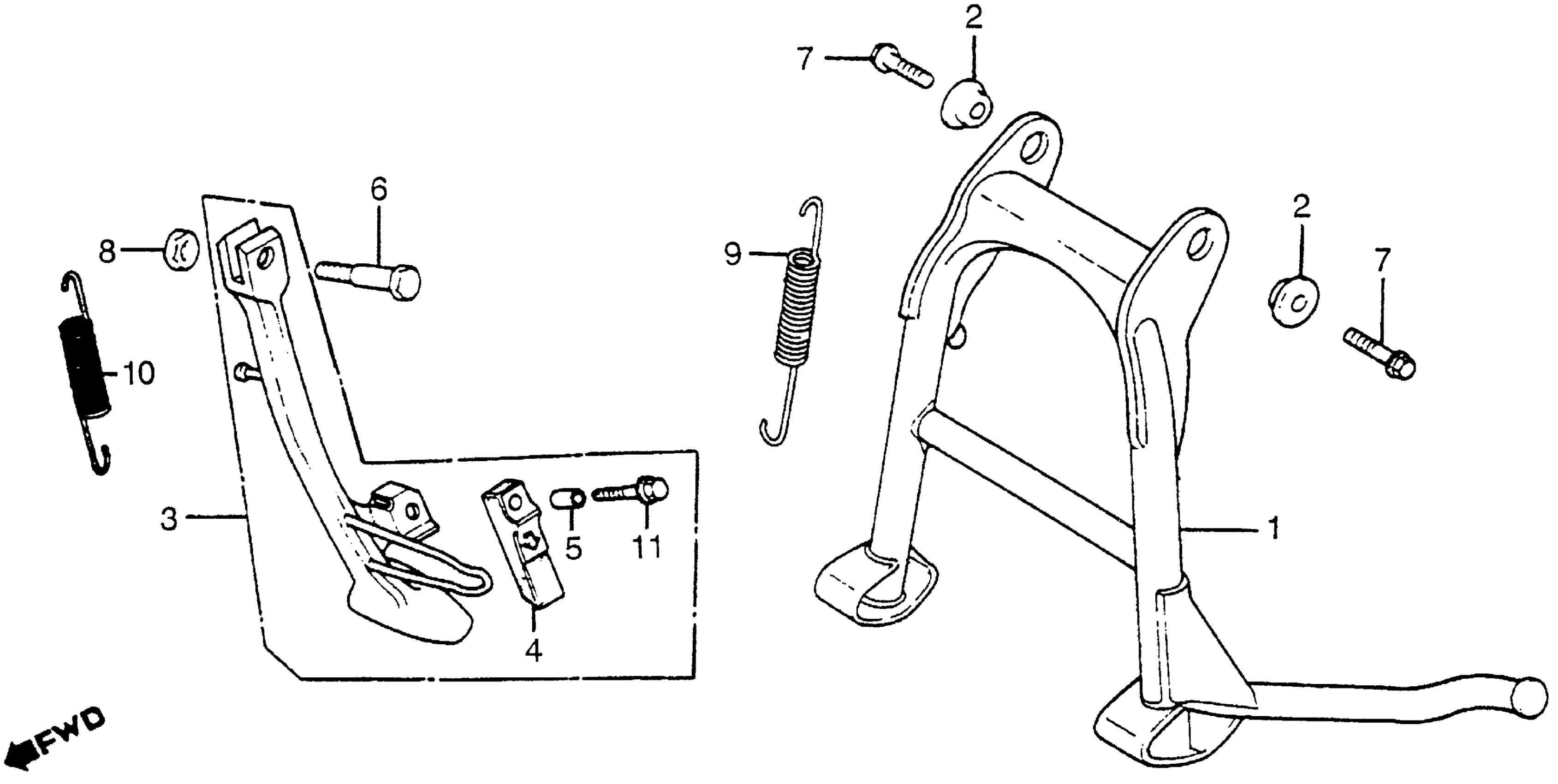

Honda CX500TCA (82) 500 TURBO, JPN, VIN# JH2PC030-CM000017 SIDE STAND + MAIN STAND Diagram

#

Description

Price

1

STAND, MAIN (NOT AVAILABLE)

50500-MC7-000

Unavailable

2

COLLAR, MAIN STAND

50503-MA1-000

$11.58

3

STAND ASSY., SIDE (NOT AVAILABLE)

50540-MC7-000

Unavailable

4

RUBBER, STAND

50548-356-700

$10.50

5

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

6

BOLT, SIDE STAND PIVOT

90108-223-000

$5.13

7

BOLT, FLANGE (10X25)

95701-10025-08

$2.19

7

BOLT, FLANGE (10X25) This part replaces 95800-10025-08.

95701-10025-08

$2.19

7

BOLT, FLANGE (10X25) This part replaces 95801-10025-08.

95701-10025-08

$2.19

8

NUT, HEX. (10MM)

94031-10000

$1.49

9

SPRING J, MAIN STAND

95014-71902

Unavailable

10

SPRING D, SIDE STAND

95014-72402

$2.92

11

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

11

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
