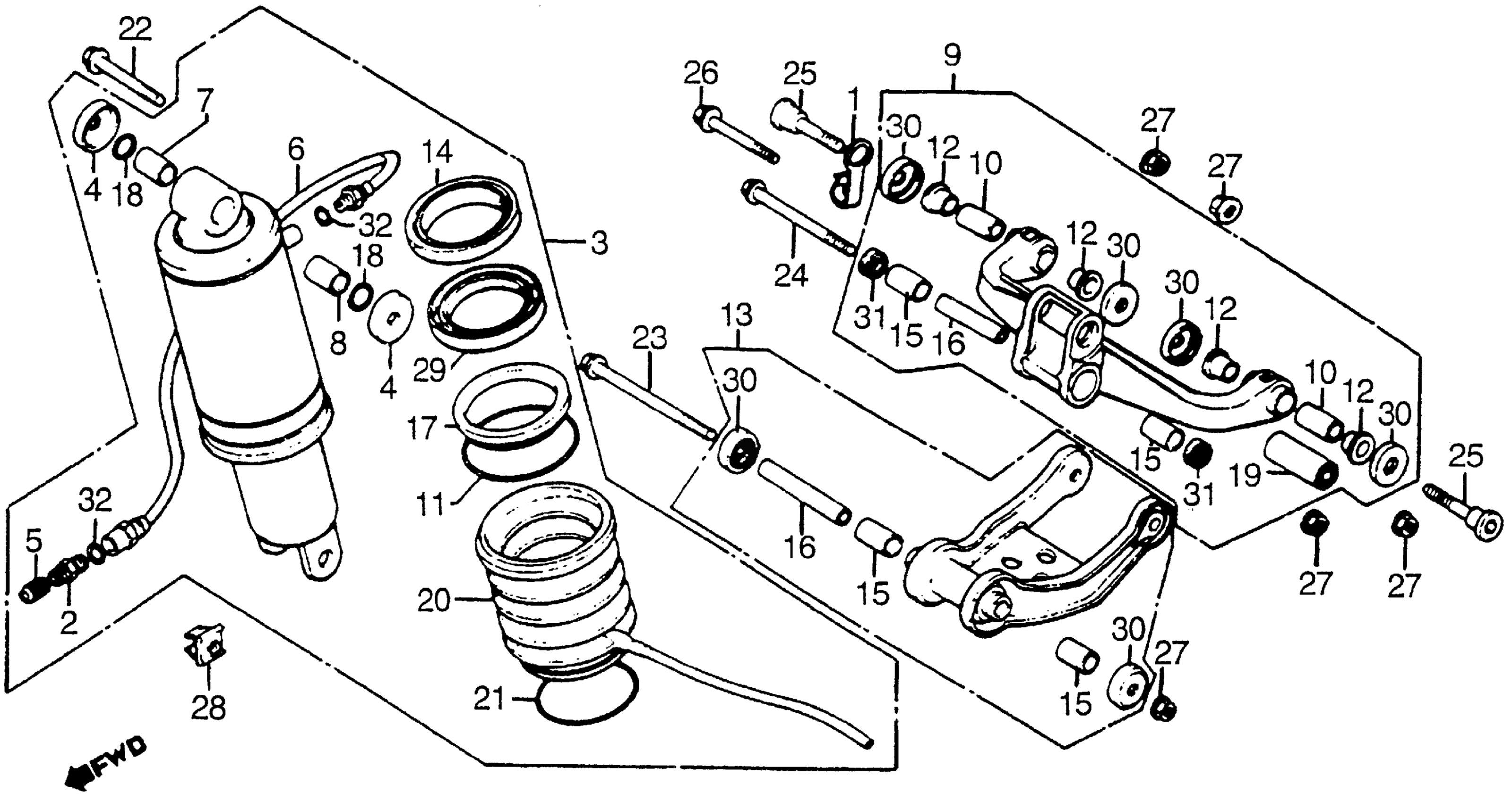

Honda CX500TCA (82) 500 TURBO, JPN, VIN# JH2PC030-CM000017 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

CLAMP, OIL HOSE

45156-MC7-000

Unavailable

2

VALVE, AIR (SHOWA)

51456-469-013

$33.69

3

SHOCK ABSORBER ASSY., RR. | Use up to Frame SN 001611 This part replaces 52400-MC7-003.

52400-MC7-023

Unavailable

3

SHOCK ABSORBER ASSY., RR. | Use up to Frame SN 001611 This part replaces 52400-MC7-013.

52400-MC7-023

Unavailable

3

SHOCK ABSORBER ASSY., RR. | Use up to Frame SN 001893 This part replaces 52400-MC7-013.

52400-MC7-023

Unavailable

3

SHOCK ABSORBER ASSY., RR. | Use up to Frame SN 001611

52400-MC7-023

Unavailable

3

SHOCK ABSORBER ASSY., RR. | Use up to Frame SN 001893

52400-MC7-023

Unavailable

3

SHOCK ABSORBER ASSY., RR.

52400-MC7-023

Unavailable

4

CAP | Use from Frame SN 001894

52406-MA1-611

Unavailable

4

CAP | Use up to Frame SN 001893

52406-MC7-003

Unavailable

5

CAP, AIR VALVE (SHOWA)

52425-169-003

$4.94

6

HOSE, RR. SHOCK ABSORBER (SHOWA) (NOT AVAILABLE)

52432-MA1-003

Unavailable

7

METAL, BUSH | Use from Frame SN 001894

52452-MA1-611

Unavailable

7

METAL, BUSH (NOT AVAILABLE) | Use up to Frame SN 001893

52452-MA1-731

Unavailable

8

COLLAR, BUSH

52453-MA1-731

Unavailable

9

ARM ASSY., SHOCK ABSORBER

52460-MC7-000

Unavailable

10

COLLAR, CONNECTING ROD PIVOT

52462-MA2-000

Unavailable

11

RING B, STOPPER This part replaces 52463-MC7-003.

52463-MC7-013

Unavailable

11

RING B, STOPPER

52463-MC7-013

Unavailable

12

BUSH, CONNECTING ROD

52465-MC7-300

Unavailable

13

ROD ASSY., DAMPER CONNECTING | Use from Frame SN 002260

52470-MA1-010

Unavailable

13

ROD ASSY., DAMPER CONNECTING | Use up to Frame SN 002259

52470-MC7-000

Unavailable

14

CASE, GUIDE

52472-MC7-003

Unavailable

15

BUSH, DAMPER CONNECTING ROD

52474-MA1-003

Unavailable

16

COLLAR, CONNECTING ROD

52475-MA1-000

$16.02

17

RING, BACK-UP This part replaces 52477-MC7-003.

52477-MC7-013

Unavailable

17

RING, BACK-UP

52477-MC7-013

Unavailable

18

O-RING (14.5X1.5) This part replaces 52478-MC7-003.

91312-PC9-004

Unavailable

18

O-RING (14.5X1.5)

91312-PC9-004

Unavailable

19

BUSH, SHOCK ABSORBER (NOT AVAILABLE)

52485-MA2-003

Unavailable

20

BOOT, RR. DAMPER (NOT AVAILABLE)

52611-MC7-003

Unavailable

21

BAND, BOOT

52612-MA2-003

$5.98

22

BOLT, FLANGE (10X65)

90101-KBS-900

$6.34

22

BOLT, FLANGE (10X65) This part replaces 90152-MA1-000.

90101-KBS-900

$6.34

23

BOLT, FLANGE (10X100)

90108-MR8-000

Unavailable

23

BOLT, FLANGE (10X100) This part replaces 90153-MA1-000.

90108-MR8-000

Unavailable

24

BOLT, FLANGE (10X95)

90154-KW7-870

Unavailable

24

BOLT, FLANGE (10X95) This part replaces 90154-MA1-000.

90154-KW7-870

Unavailable

24

BOLT, FLANGE (10X95) This part replaces 90187-MG7-003.

90154-KW7-870

Unavailable

25

BOLT, CUSHION ARM (NOT AVAILABLE)

90186-MC7-000

Unavailable

26

BOLT D, FLANGE (NOT AVAILABLE)

90189-MA2-000

Unavailable

27

NUT, AXLE (10MM)

90304-GA6-003

$2.89

28

CLIP, ROD HOLDER This part replaces 90662-MA1-003.

90671-ZC6-003

Unavailable

28

CLIP, ROD HOLDER

90671-ZC6-003

Unavailable

29

OIL SEAL (65X80X10.5)

91257-MC7-003

Unavailable

30

SEAL, RR. CUSHION CONNECTING ROD PIVOT (NOK) This part replaces 91262-MA0-013.

91262-MA0-015

$11.15

30

SEAL, RR. SHOCK ABSORBER CONNECTING ROD PIVOT (NOK)

91262-MA0-015

$11.15

31

DUST SEAL, CONNECTING ROD PIVOT This part replaces 91262-MA1-005.

91262-MB2-005

$3.83

31

DUST SEAL, CONNECTING ROD PIVOT

91262-MB2-005

$3.83

32

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

32

O-RING (5.8X1.9)

91305-323-000

$2.92

32

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67
