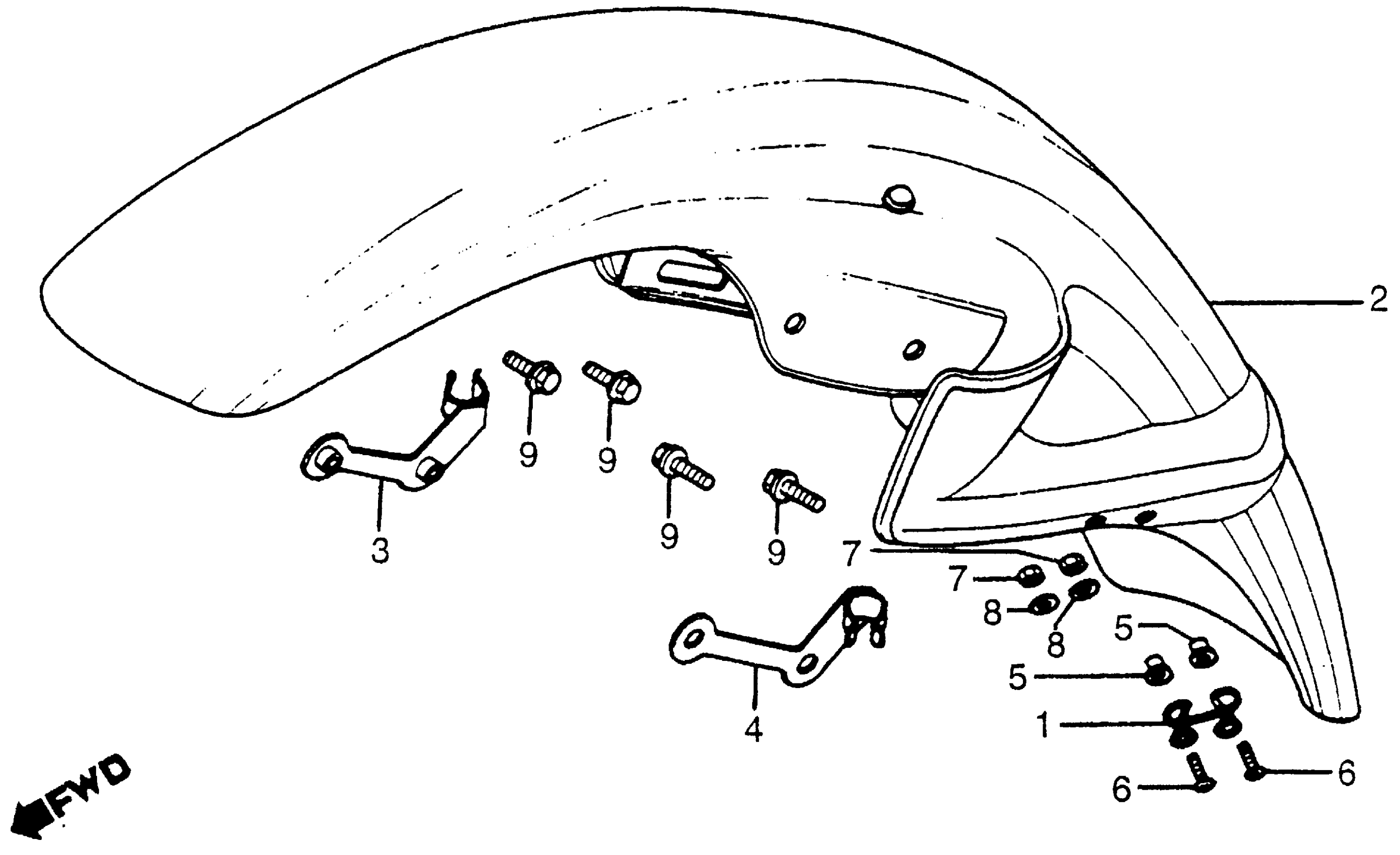

Honda CX500TCA (82) 500 TURBO, JPN, VIN# JH2PC030-CM000017 FRONT FENDER Diagram

#

Description

Price

1

GUIDE, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-MC7-000

Unavailable

2

FENDER, FR. NH113PA (PEARL ALTAIR WHITE-A) (NOT AVAILABLE)

61100-MC7-000ZA

Unavailable

3

CLAMP, R. FR. BRAKE HOSE (NOT AVAILABLE)

61108-MC7-000

Unavailable

4

CLAMP, L. FR. BRAKE HOSE (NOT AVAILABLE)

61109-MC7-000

Unavailable

5

COLLAR, RR. FENDER

80114-MC7-000

Unavailable

6

SCREW, PAN (5X16)

93500-05016-0B

$1.31

7

NUT, HEX. (5MM)

94001-050800S

$0.96

8

WASHER, PLAIN (5MM)

94101-05800

$0.91

9

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.34

9

BOLT, FLANGE (6X16)

95701-06016-08

$1.34
