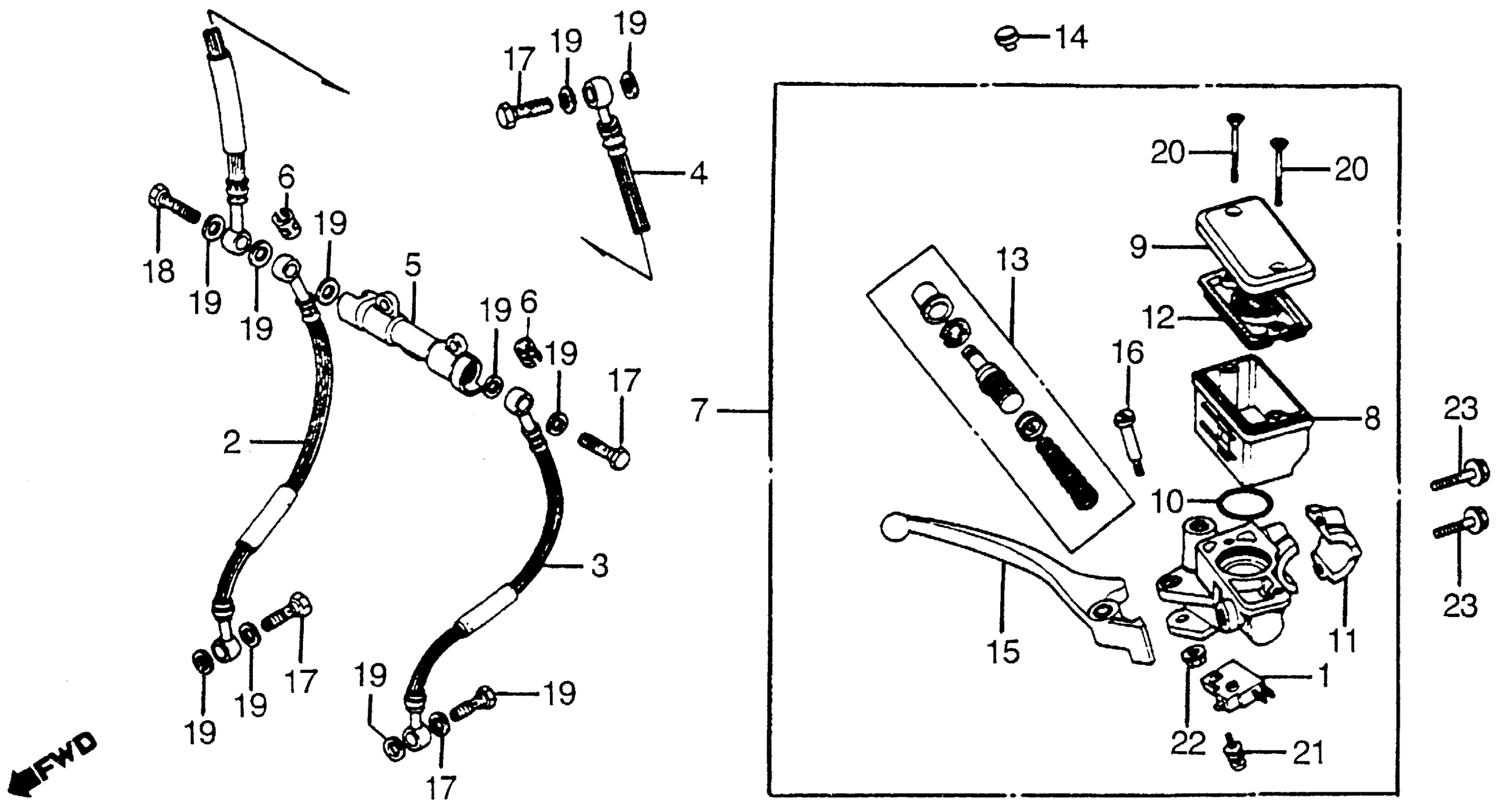

Honda CX500TCA (82) 500 TURBO, JPN, VIN# JH2PC030-CM000017 FRONT BRAKE MASTER + CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

2

HOSE A, R. FR. BRAKE This part replaces 45124-MC7-003.

45124-MC7-013

Unavailable

3

HOSE A, L. FR. BRAKE This part replaces 45125-MC7-003.

45125-MC7-013

Unavailable

4

HOSE ASSY., FR. BRAKE This part replaces 45126-MC7-003.

45126-MC7-013

Unavailable

4

HOSE ASSY., FR. BRAKE

45126-MC7-013

Unavailable

5

JOINT (TWO-WAY) (NISSIN) (NOT AVAILABLE)

45127-MA1-003

Unavailable

6

SPACER, BRAKE HOSE END

45154-MC7-000

Unavailable

7

MASTER CYLINDER ASSY., FR. (NA USE ALT:45510-445-406)

45500-445-632

Unavailable

8

CUP, OIL

45511-MA5-671

$44.69

9

CAP, OIL CUP

45513-MA5-671

Unavailable

10

O-RING (26.7X2.4)

45516-166-006

$6.81

11

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

12

DIAPHRAGM This part replaces 45520-MA5-671.

45520-MA5-672

$18.13

12

DIAPHRAGM

45520-MA5-672

$18.13

13

MASTER CYLINDER SET

45530-MA5-671

$71.69

14

PLUG, HANDLEBAR BRACKET

53174-116-670

$2.48

14

PLUG, HANDLE LEVER BRACKET This part replaces 53174-463-770.

53174-116-670

$2.48

15

LEVER, R. HANDLEBAR

53175-MA5-671

Unavailable

16

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

17

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

17

BOLT, OIL

90145-300-010

$9.68

18

BOLT, OIL This part replaces 90145-422-010.

90145-422-020

Unavailable

19

WASHER, OIL BOLT

90545-300-000

$3.99

20

SCREW, FLAT (4X45)

93600-04045-1G

$1.49

21

SCREW-WASHER (4X12)

93893-04012-08

$1.49

21

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

22

NUT, FLANGE (6MM)

94050-06000

$1.49

23

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

23

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
