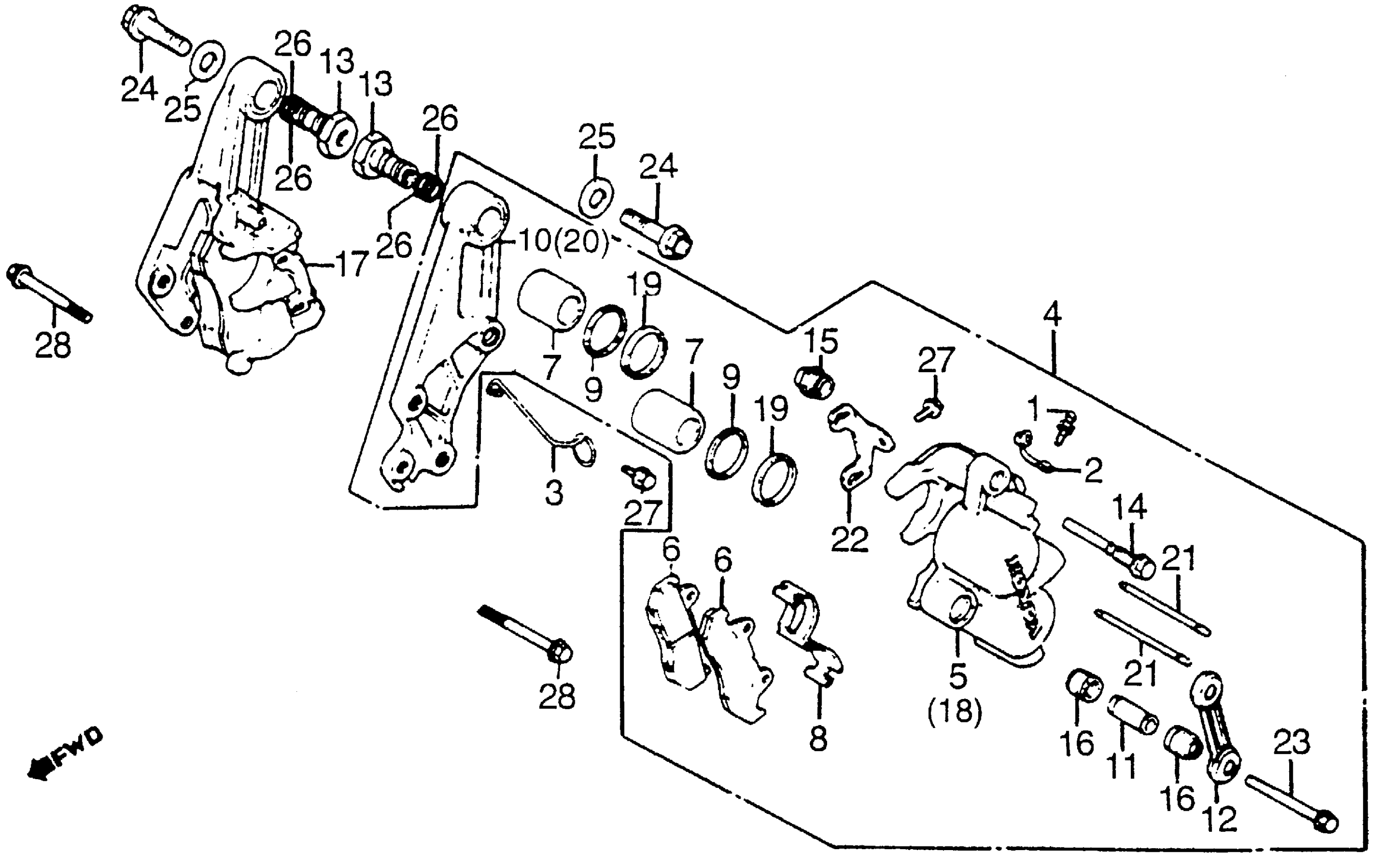

Honda CX500TCA (82) 500 TURBO, JPN, VIN# JH2PC030-CM000017 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET This part replaces 451A0-MC7-670.

06435-MC7-405

Unavailable

1

SCREW, BLEEDER

43352-568-003

$7.95

2

CAP, BLEEDER

43353-461-771

$5.05

3

CLAMP, SPEEDOMETER CABLE

44833-MC7-000

Unavailable

4

CALIPER ASSY., L. FR. This part replaces 45100-MC7-006.

45100-MC7-016

Unavailable

4

CALIPER ASSY., L. FR. This part replaces 45100-MC7-007.

45100-MC7-016

Unavailable

4

CALIPER ASSY., L. FR.

45100-MC7-016

Unavailable

5

CALIPER, L.

45101-MA3-006

Unavailable

6

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-KL8-004.

45105-KL8-014

Unavailable

6

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45105-KL8-014

Unavailable

6

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MC7-004.

45105-KL8-014

Unavailable

6

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MC7-014.

45105-KL8-014

Unavailable

7

PISTON

45107-MA3-006

$50.26

8

SPRING, PAD

45108-MA3-006

$6.28

9

DUST SEAL

45109-166-006

$6.41

10

BRACKET, L. FR.

45110-MC7-006

Unavailable

11

SLEEVE

45111-MA3-006

$13.38

12

BRIDGE, CALIPER BRACKET (NOT AVAILABLE)

45113-MC7-610

Unavailable

13

SLEEVE, FR. CALIPER BRACKET (NOT AVAILABLE)

45114-MC7-611

Unavailable

14

PIN, BOLT

45131-MA3-006

$17.59

15

BOOT B

45133-MA3-006

$5.46

16

BOOT, PIN

45133-166-016

$3.85

17

CALIPER ASSY., R. FR. This part replaces 45200-MC7-006.

45200-MC7-016

Unavailable

17

CALIPER ASSY., R. FR. This part replaces 45200-MC7-007.

45200-MC7-016

Unavailable

17

CALIPER ASSY., R. FR.

45200-MC7-016

Unavailable

18

CALIPER, R. (NOT AVAILABLE)

45201-MA3-006

Unavailable

19

SEAL, PISTON

45209-166-006

$8.64

20

BRACKET, R. FR.

45210-MC7-006

Unavailable

21

PIN, HANGER

45215-MA3-006

$12.77

22

PLATE

45217-MA3-006

$4.45

23

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

24

BOLT, FLANGE (10X50) This part replaces 90185-MC7-003.

90185-MC7-013

Unavailable

24

BOLT, FLANGE (10X50) This part replaces 90185-MC7-010.

90185-MC7-013

Unavailable

24

BOLT, FLANGE (10X50)

90185-MC7-013

Unavailable

25

WASHER (10.3X25)

90501-MC7-000

$2.90

26

O-RING (16.8X1.9) This part replaces 91302-MC7-611.

91347-PY3-000

$2.68

26

O-RING (16.8X1.9)

91347-PY3-000

$2.68

27

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

27

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

28

BOLT, FLANGE (8X55) This part replaces 95800-08055-07.

95801-08055-07

$1.64

28

BOLT, FLANGE (8X55)

95801-08055-07

$1.64
