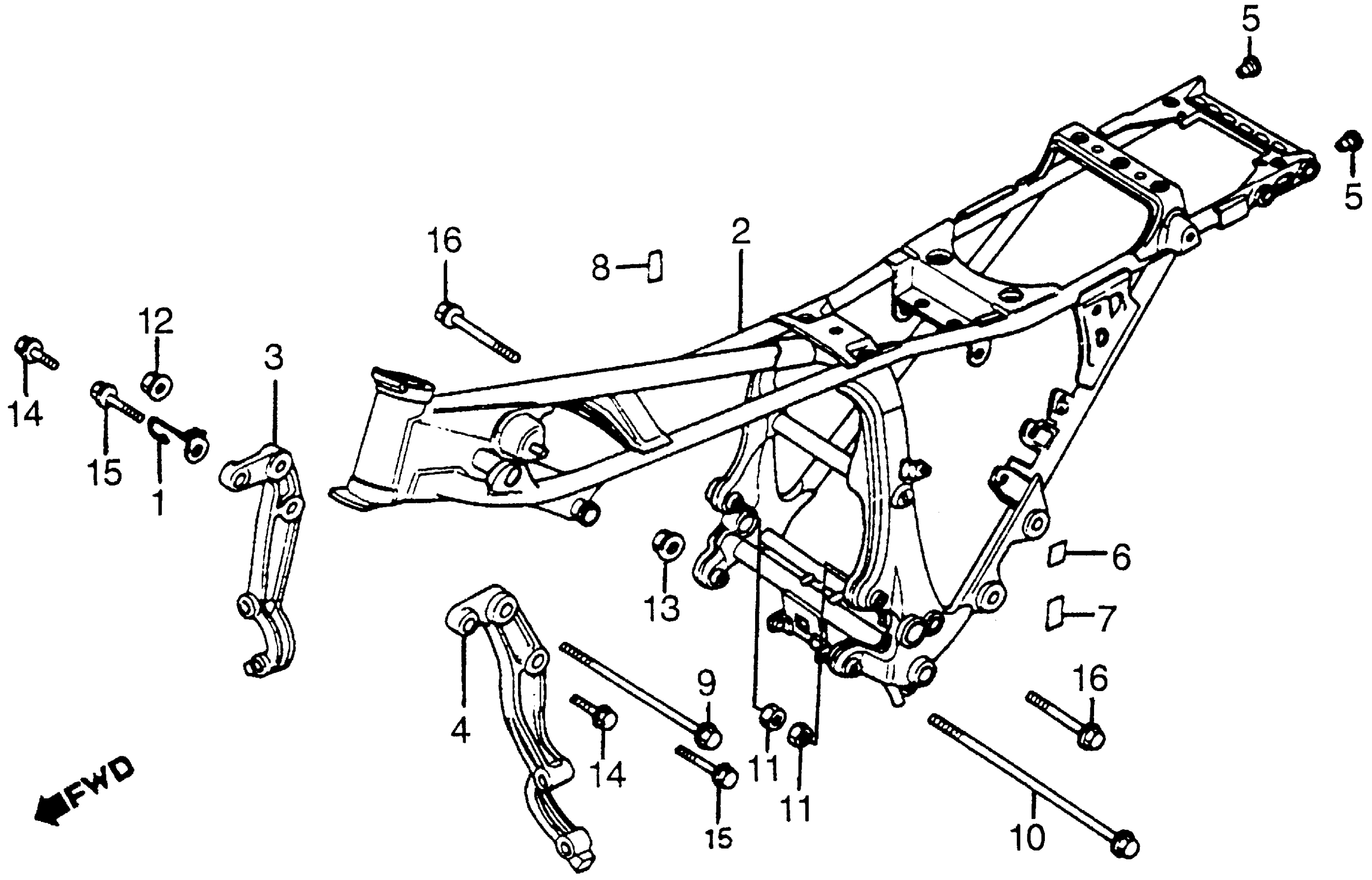

Honda CX500TCA (82) 500 TURBO, JPN, VIN# JH2PC030-CM000017 FRAME Diagram
#
Description
Price
1
CLIP B, BREATHER TUBE (NOT AVAILABLE)
17356-MC7-000
Unavailable
2
FRAME *NH1* (BLACK)
50100-MC7-000ZA
Unavailable
3
BRACKET, R. FR. ENGINE HANGER (NOT AVAILABLE)
50311-MC7-000
Unavailable
4
BRACKET, L. FR. ENGINE HANGER
50321-MC7-000
Unavailable
5
CAP, PIPE (UPPER)
84105-MC7-000
Unavailable
6
LABEL, BATTERY CAUTION (NOT AVAILABLE)
87506-MC7-610
Unavailable
7
LABEL, RADIATOR CAUTION (NOT AVAILABLE)
87508-MA1-770
Unavailable
8
LABEL, RR. RUBBER CAUTION (NOT AVAILABLE)
87518-MC7-610
Unavailable
9
BOLT, HEX. (10X212) (NOT AVAILABLE)
90109-MC7-000
Unavailable
10
BOLT, FLANGE (12X308)
90110-415-000
Unavailable
15
BOLT, FLANGE (10X35)
96400-10040-08
Unavailable
