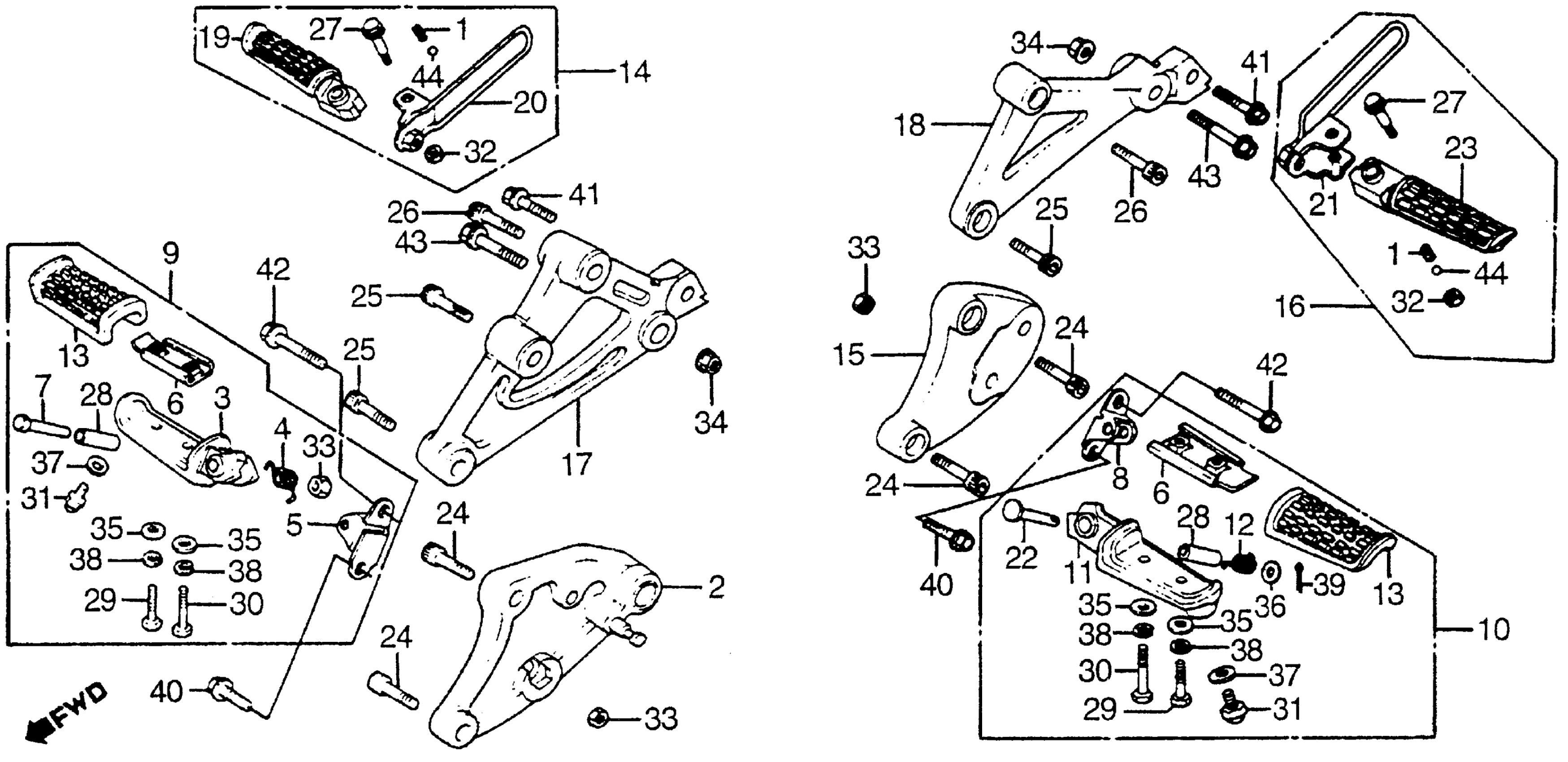

Honda CX500TCA (82) 500 TURBO, JPN, VIN# JH2PC030-CM000017 FOOTPEG Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

2

HOLDER, R. FOOTPEG (NOT AVAILABLE)

50601-MC7-000

Unavailable

3

ARM, R. FOOTPEG (NOT AVAILABLE)

50612-445-840

Unavailable

4

SPRING, R. STEP RETURN

50617-445-840

$5.44

5

BRACKET, R. FOOTPEG (NOT AVAILABLE)

50618-445-840

Unavailable

6

PLATE, FOOTPEG STOPPER (NOT AVAILABLE)

50619-MC7-000

Unavailable

7

BOLT, FOOTPEG ARM PIVOT (NOT AVAILABLE)

50621-438-000

Unavailable

8

BRACKET, L. FOOTPEG (NOT AVAILABLE)

50628-445-840

Unavailable

9

FOOTPEG ASSY., R. MAIN

50630-MC7-000

Unavailable

10

FOOTPEG ASSY., L. MAIN

50640-MC7-000

Unavailable

11

ARM, L. FOOTPEG (NOT AVAILABLE)

50642-445-840

Unavailable

12

SPRING, L. STEP RETURN

50644-445-840

$5.44

13

RUBBER, FOOTPEG

50661-425-700

Unavailable

14

FOOTPEG ASSY., R. PILLION

50700-MC7-000

Unavailable

15

HOLDER, L. FOOTPEG (NOT AVAILABLE)

50701-MC7-000

Unavailable

16

FOOTPEG ASSY., L. PILLION

50705-MC7-000

Unavailable

17

BRACKET, R. PILLION FOOTPEG (NOT AVAILABLE)

50711-MC7-000

Unavailable

18

BRACKET, L. PILLION FOOTPEG

50712-MC7-000

Unavailable

19

ARM, R. PILLION FOOTPEG (NOT AVAILABLE)

50714-MC7-000

Unavailable

20

BRACKET, R. PILLION FOOTPEG

50715-MC7-000

Unavailable

21

BRACKET, L. PILLION FOOTPEG

50716-MC7-000

Unavailable

22

PIN, FOOTPEG BAR JOINT (NOT AVAILABLE)

50716-438-000

Unavailable

23

ARM, L. PILLION FOOTPEG (NOT AVAILABLE)

50717-MC7-000

Unavailable

24

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-MC7-000.

90116-383-721

$5.13

24

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-000.

90116-383-721

$5.13

24

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

24

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

25

BOLT, SOCKET (8X40)

90117-MC7-000

Unavailable

26

BOLT, SOCKET (8X45) (NOT AVAILABLE)

90125-MC7-000

Unavailable

27

BOLT, PILLION STEP (NOT AVAILABLE)

90187-MC7-000

Unavailable

28

COLLAR, FOOTPEG PIVOT

90501-445-840

Unavailable

29

BOLT, HEX. (5X25) This part replaces 92000-05025-0A.

92101-05025-0A

$1.49

29

BOLT, HEX. (5X25)

92101-05025-0A

$1.49

30

BOLT, HEX. (5X28) This part replaces 92000-05028-0A.

92101-05028-0A

Unavailable

30

BOLT, HEX. (5X28)

92101-05028-0A

Unavailable

31

BOLT, CAP (8X12) This part replaces 92500-08012-0A.

92501-08012-0A

$3.05

31

BOLT, CAP (8X12)

92501-08012-0A

$3.05

32

NUT, HEX. (6MM)

94001-06020-0S

$1.49

33

NUT, HEX. (8MM)

94002-08000-0S

$1.49

34

NUT, FLANGE (10MM)

94050-10080

$3.24

35

WASHER, PLAIN (5MM)

94101-05000

$1.49

36

WASHER, PLAIN (8MM)

94101-08000

$1.49

37

WASHER, PLAIN (8MM)

94102-08000

$1.49

38

WASHER, SPRING (5MM)

94111-05000

$1.49

39

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

39

PIN, COTTER (1.6X25)

94201-16250

$1.49

40

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

40

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

41

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

41

BOLT, FLANGE (8X32)

95701-08032-00

$1.49

42

BOLT, FLANGE (8X40) This part replaces 95700-08040-00.

95701-08040-00

$1.49

42

BOLT, FLANGE (8X40)

95701-08040-00

$1.49

43

BOLT, FLANGE (10X40) This part replaces 95700-10040-00.

95701-10040-00

$1.51

43

BOLT, FLANGE (10X40)

95701-10040-00

$1.51

44

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
