- CX500TCA (82) 500 TURBO, JPN, VIN# JH2PC030-CM000017
FAIRING

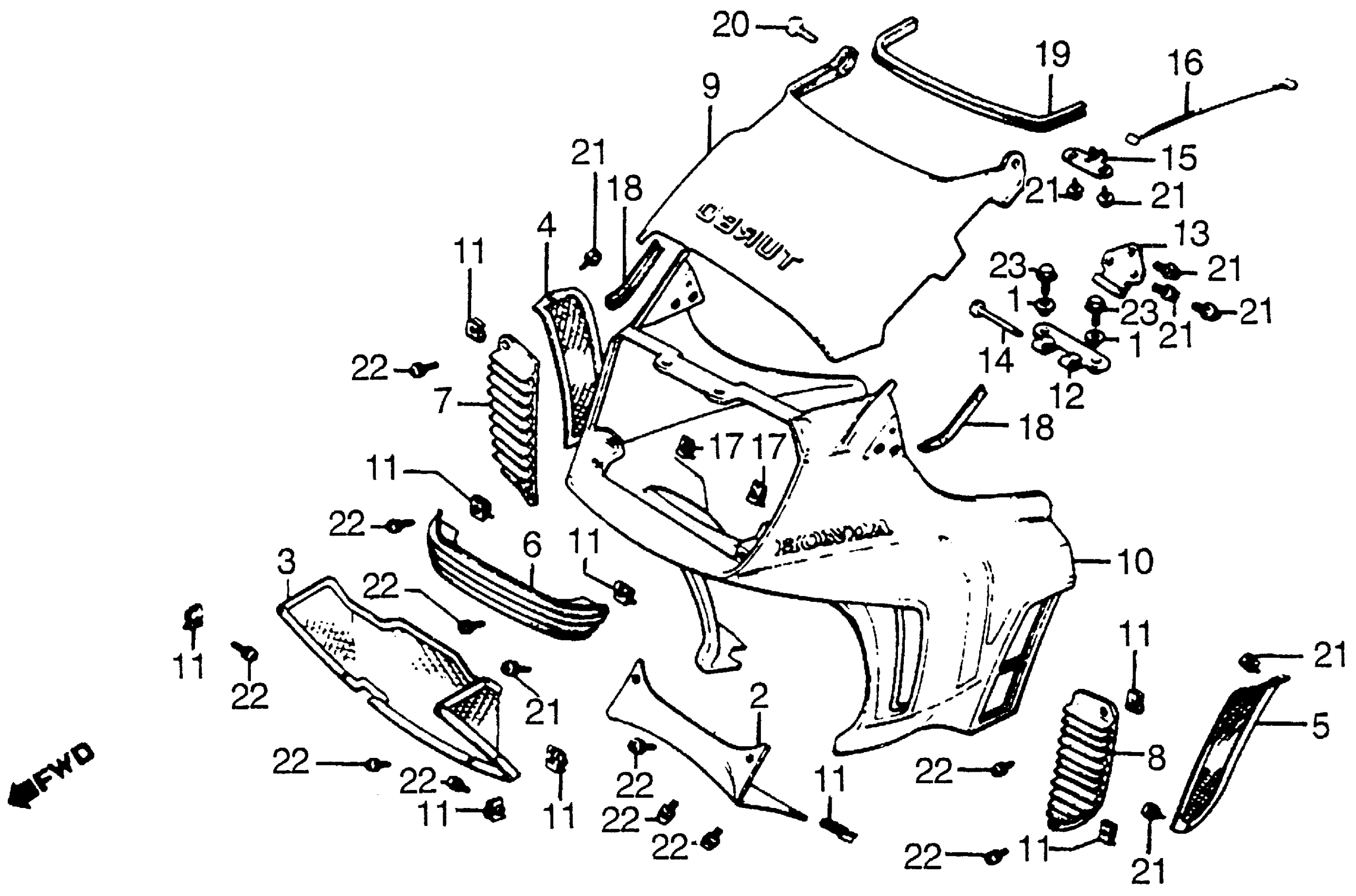

Honda CX500TCA (82) 500 TURBO, JPN, VIN# JH2PC030-CM000017 FAIRING Diagram
#
Description
Price
1
COLLAR, WINDSCREEN
64106-MC7-000
Unavailable
2
COVER, FAIRING (LOWER) *NH113PA* (PEARL ALTAIR WHITE-A) (NOT AVAILABLE)
64214-MC7-000ZA
Unavailable
3
GRILLE, RADIATOR
64230-MC7-000
Unavailable
4
GRILLE, R. OUTLET (NOT AVAILABLE)
64231-MC7-000
Unavailable
5
GRILLE, L. OUTLET (NOT AVAILABLE)
64232-MC7-000
Unavailable
6
GRILLE, FR. FAIRING
64233-MC7-000
Unavailable
7
GRILLE, R. FAIRING SIDE (NOT AVAILABLE) | Use up to Frame SN 002811
64234-MC7-000
Unavailable
7
GRILLE, R. FAIRING SIDE (NOT AVAILABLE) | Use from Frame SN 002812
64234-MC7-010
Unavailable
8
GRILLE, L. FAIRING SIDE (NOT AVAILABLE) | Use up to Frame SN 002811
64235-MC7-000
Unavailable
8
GRILLE, L. FAIRING SIDE (NOT AVAILABLE) | Use from Frame SN 002812
64235-MC7-010
Unavailable
9
HOOD SUB-ASSY., FAIRING *NH113PA* (PEARL ALTAIR WHITE-A)
64270-MC7-670ZA
Unavailable
10
BODY SUB-ASSY., FAIRING *NH113PA* (PEARL ALTAIR WHITE-A) (NOT AVAILABLE) This part replaces 64280-MC7-000ZA.
64280-MC7-305ZA
Unavailable
10
BODY SUB-ASSY., FAIRING *NH113PA* (PEARL ALTAIR WHITE-A) (NOT AVAILABLE)
64280-MC7-305ZA
Unavailable
12
HINGE A, HOOD (NOT AVAILABLE)
64522-MC7-000
Unavailable
13
HINGE B, HOOD
64523-MC7-000
Unavailable
14
PIN, HOOD HINGE
64524-MC7-000
Unavailable
15
STAY, HOOD STOPPER (NOT AVAILABLE)
64527-MC7-000
Unavailable
16
STOPPER, FAIRING HOOD (NOT AVAILABLE)
64528-MC7-000
Unavailable
17
NUT, CLIP (6MM)
64529-MC7-000
Unavailable
18
RUBBER, FAIRING SEAL (NOT AVAILABLE)
64531-MC7-000
Unavailable
19
RUBBER, SEAL (NOT AVAILABLE)
64533-MC7-000
Unavailable
20
SCREW, FAIRING SETTING (INNER) (NOT AVAILABLE)
90111-MC7-000
Unavailable
