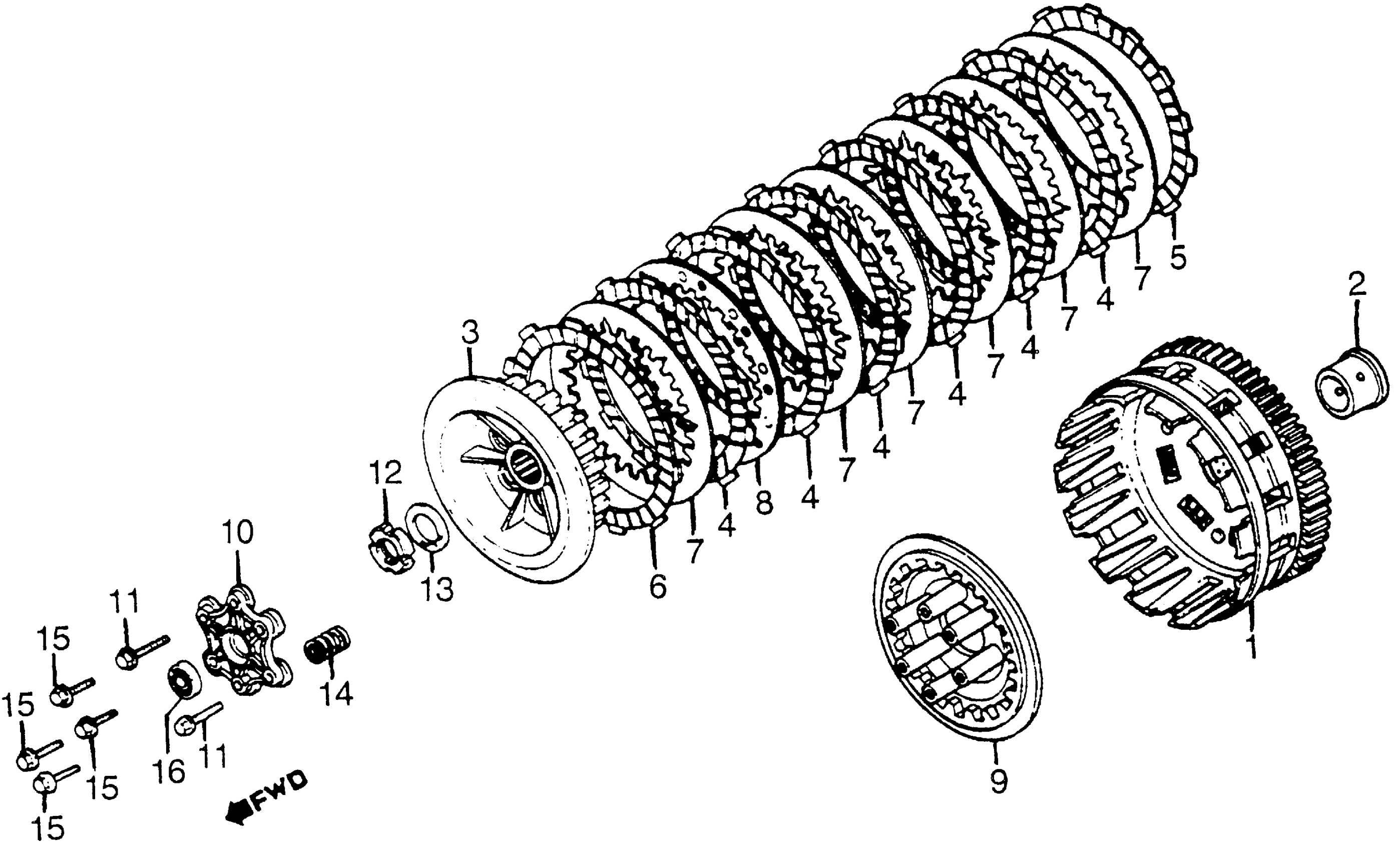

Honda CX500TCA (82) 500 TURBO, JPN, VIN# JH2PC030-CM000017 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER)

22100-MC7-010

Unavailable

2

GUIDE, CLUTCH (OUTER)

22116-MC7-000

Unavailable

3

CENTER, CLUTCH

22120-MC7-000

Unavailable

4

DISK, CLUTCH FRICTION

22201-MC7-000

Unavailable

5

DISK A, CLUTCH FRICTION

22201-MG9-000

$22.51

5

DISK A, CLUTCH FRICTION This part replaces 22201-463-000.

22201-MG9-000

$22.51

6

DISK B, CLUTCH FRICTION

22202-463-000

Unavailable

7

PLATE A, CLUTCH This part replaces 22321-MG9-000.

22321-371-010

$26.21

7

PLATE A, CLUTCH

22321-371-010

$26.21

7

PLATE A, CLUTCH This part replaces 22321-463-000.

22321-371-010

$26.21

8

PLATE B, CLUTCH

22322-463-000

Unavailable

9

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22350-MC7-000

Unavailable

10

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22360-463-000

Unavailable

11

BOLT, FLANGE (6X32) (NOT AVAILABLE)

90008-422-000

Unavailable

12

NUT, LOCK (20MM)

90204-426-000

Unavailable

13

WASHER, LOCK

90432-121-000

$4.21

14

SPRING, CLUTCH

95014-75140

$3.06

15

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

15

BOLT, FLANGE (6X25) This part replaces 95720-06025-08.

95701-06025-08

$1.72

16

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
