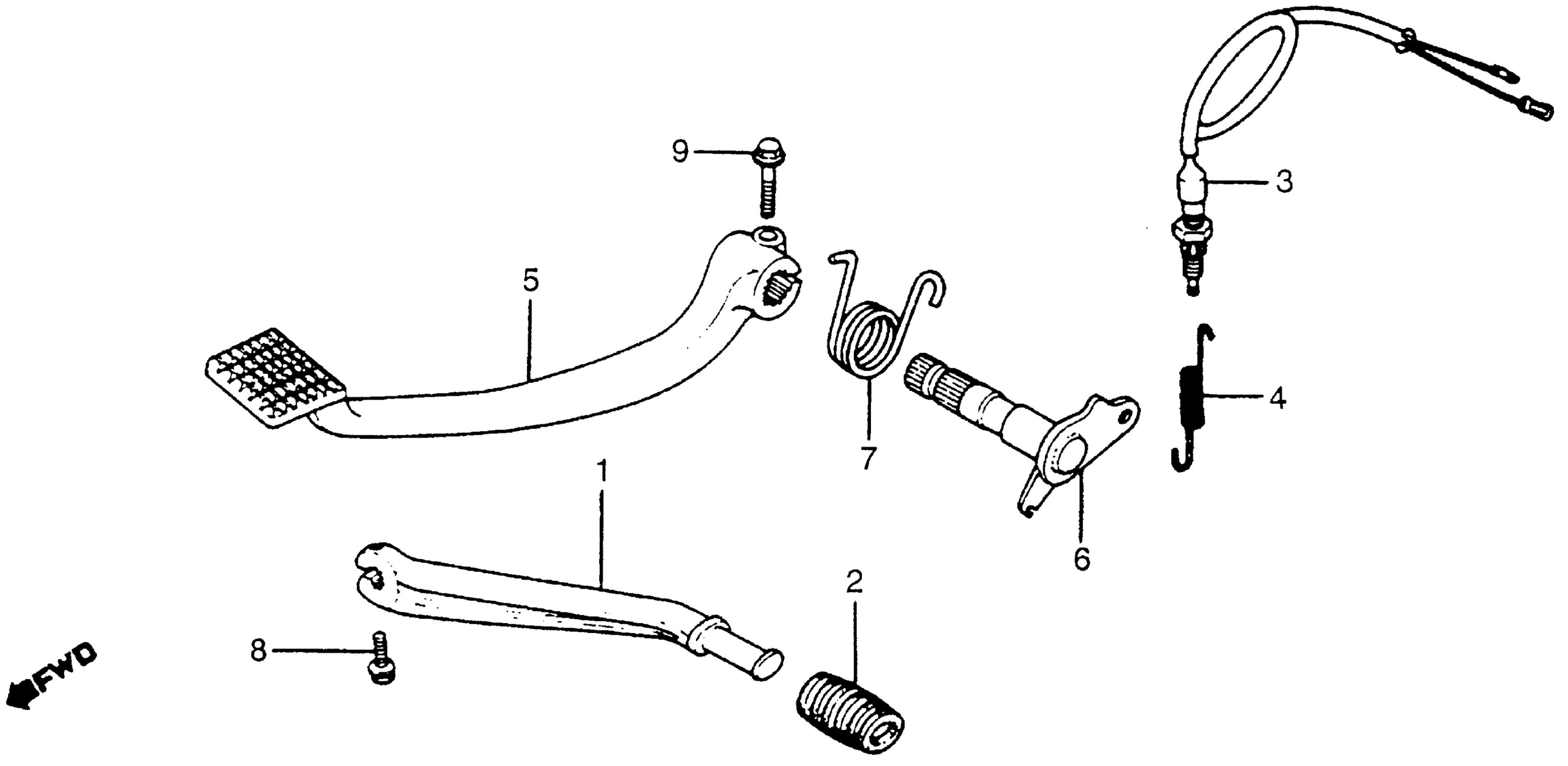

Honda CX500TCA (82) 500 TURBO, JPN, VIN# JH2PC030-CM000017 BRAKE PEDAL + GEARSHIFT PEDAL Diagram

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-MC7-000

Unavailable

RUBBER, GEARSHIFT PEDAL (NOT AVAILABLE)

24781-MC7-000

Unavailable

SWITCH ASSY., RR. STOP This part replaces 35350-415-000.

35350-415-405

Unavailable

SWITCH ASSY., RR. STOP

35350-415-405

Unavailable

SPRING, STOP SWITCH This part replaces 35357-MA1-000.

35357-MJ1-000

Unavailable

SPRING, STOP SWITCH

35357-MJ1-000

Unavailable

PEDAL, BRAKE

46500-MC7-000

Unavailable

SPINDLE, RR. BRAKE (NOT AVAILABLE)

46510-MC7-000

Unavailable

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-MC7-000

Unavailable

BOLT, FLANGE (6X22) This part replaces 95700-06022-08.

95701-06022-08

$1.72

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
