- CX500TCA (82) 500 TURBO, JPN, VIN# JH2PC030-CM000017
AIR CLEANER

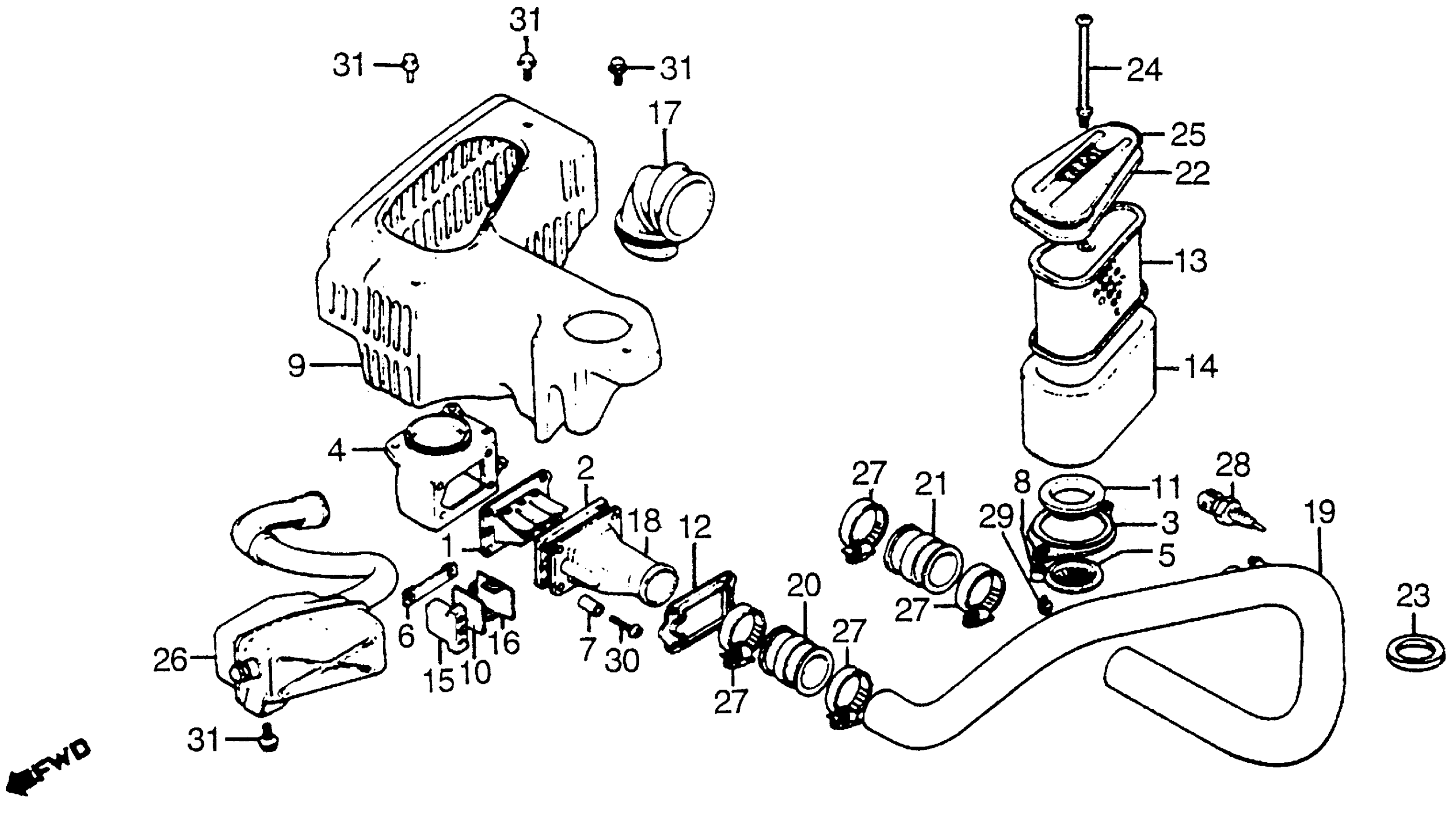

Honda CX500TCA (82) 500 TURBO, JPN, VIN# JH2PC030-CM000017 AIR CLEANER Diagram
#
Description
Price
1
VALVE ASSY., REED
14200-MC7-000
Unavailable
2
GASKET, REED VALVE (NOT AVAILABLE)
14203-MC7-000
Unavailable
3
RING, REED VALVE (NOT AVAILABLE)
17202-MC7-000
Unavailable
4
CHAMBER, REED VALVE (NOT AVAILABLE)
17203-MC7-000
Unavailable
5
NET, AIR CLEANER (NOT AVAILABLE)
17204-MC7-000
Unavailable
6
PATCH, REED VALVE (NOT AVAILABLE)
17205-MC7-000
Unavailable
7
COLLAR
17207-MC7-000
Unavailable
8
COLLAR B
17208-MC7-000
Unavailable
9
HOUSING, AIR CLEANER (NOT AVAILABLE)
17210-MC7-000
Unavailable
10
GASKET, MUFFLER (NOT AVAILABLE)
17211-MC7-000
Unavailable
11
GASKET, AIR CLEANER ELEMENT (NOT AVAILABLE)
17212-MC7-000
Unavailable
12
HOLDER, REED VALVE (NOT AVAILABLE)
17213-MC7-000
Unavailable
13
TRAP, FLAME (NOT AVAILABLE)
17216-MC7-000
Unavailable
14
ELEMENT, AIR CLEANER
17217-MC7-000
Unavailable
15
CHAMBER, MUFFLER (NOT AVAILABLE)
17218-MC7-000
Unavailable
16
CAP, MUFFLER
17219-MC7-000
Unavailable
17
DUCT, AIR CLEANER
17221-MC7-000
Unavailable
18
JOINT, AIR CLEANER HOUSING
17222-MC7-000
Unavailable
19
TUBE, AIR CLEANER CONNECTING
17223-MC7-000
Unavailable
20
JOINT, CONNECTING TUBE (NOT AVAILABLE)
17224-MC7-000
Unavailable
21
JOINT B, CONNECTING TUBE (NOT AVAILABLE)
17225-MC7-000
Unavailable
22
GASKET, AIR CLEANER HOUSING (NOT AVAILABLE)
17226-MC7-000
Unavailable
23
RING, CONNECTING TUBE
17227-MC7-000
Unavailable
24
BOLT, AIR CLEANER ELEMENT (NOT AVAILABLE)
17228-MC7-000
Unavailable
25
COVER, AIR CLEANER
17229-MC7-000
Unavailable
26
CHAMBER, RESONANCE (NOT AVAILABLE)
17230-MC7-000
Unavailable
27
BAND, AIR CLEANER TUBE (NOT AVAILABLE)
17256-MC7-000
Unavailable
28
SENSOR, AIR TEMPERATURE (NOT AVAILABLE)
36152-MC7-003
Unavailable
