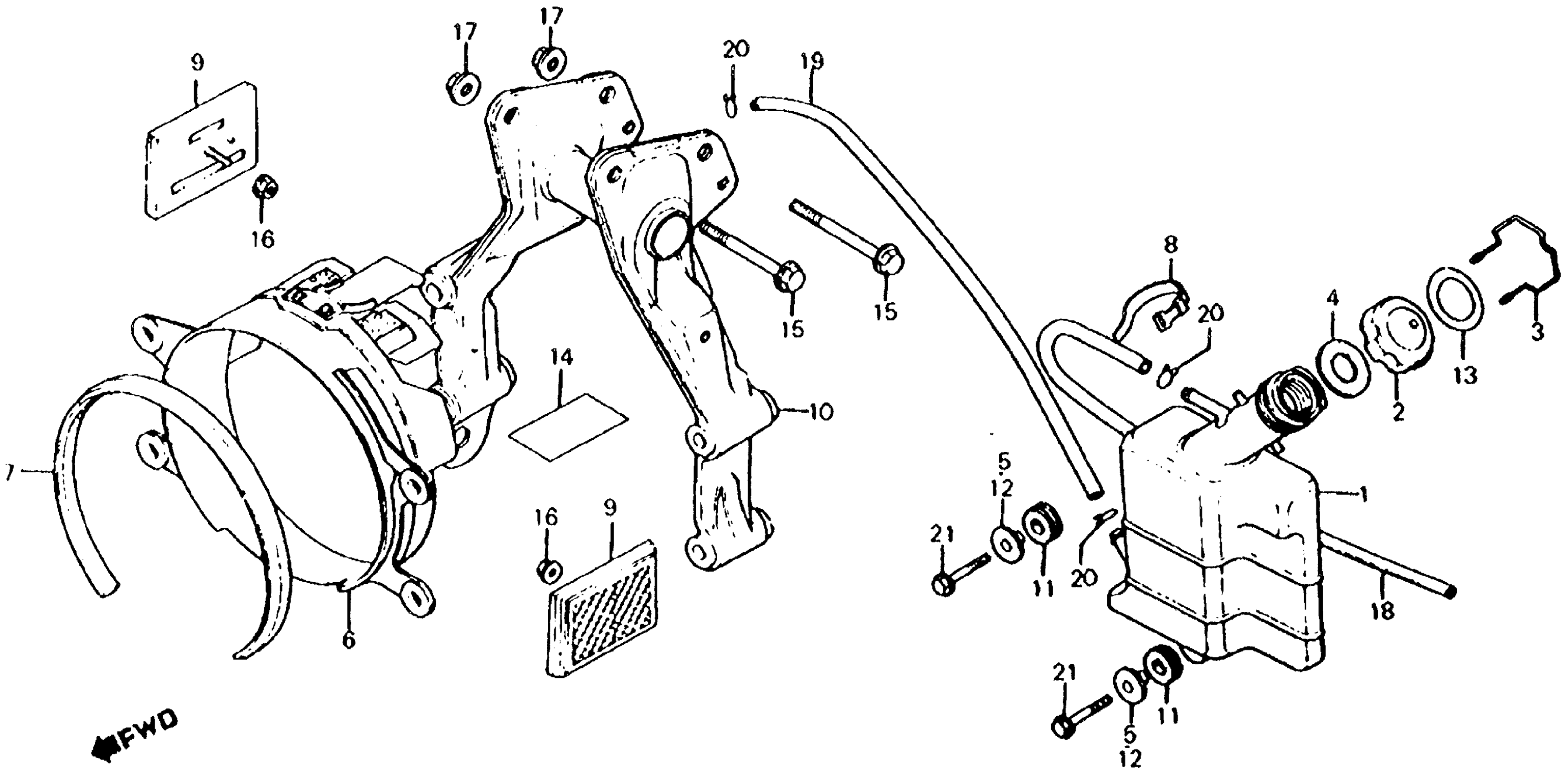

Honda CX500DA (81) DELUXE, JPN, VIN# JH2PC011-BM200011 TO JH2PC011-BM205030 RADIATOR SHROUD + RESERVE TANK Diagram

TANK, RESERVE (NOT AVAILABLE)

19103-415-000

Unavailable

CAP, RESERVE TANK (NOT AVAILABLE)

19104-415-000

Unavailable

CABLE, CAP LOCK (NOT AVAILABLE)

19105-415-000

Unavailable

GASKET, RESERVE TANK (NOT AVAILABLE)

19106-415-000

Unavailable

COLLAR, RESERVE TANK SETTING

19107-415-000

$3.10

SHROUD, RADIATOR (NOT AVAILABLE) This part replaces 19113-415-010.

19113-415-020

Unavailable

GASKET, RADIATOR SHROUD (NOT AVAILABLE)

19114-415-000

Unavailable

BAND B1, CABLE

32161-404-000

$2.23

REFLECTOR, FR. REFLEX

33741-449-000

Unavailable

BRACKET, FR. ENGINE HANGER

50310-415-000

Unavailable

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

LABEL, RESERVE TANK (NOT AVAILABLE)

87507-415-670

Unavailable

MARK, RADIATOR CAUTION (NOT AVAILABLE)

87508-415-670

Unavailable

BOLT, FLANGE (10X117)

90120-449-770

Unavailable

NUT, FLANGE (6MM)

94050-06080

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

BULK HOSE, FUEL (7.5X8000) (7.3X500)

95001-75008-60M

$103.82

BULK HOSE, FUEL (7.5X8000) (7.5X850)

95001-75008-60M

$103.82

CLIP, TUBE (B12)

95002-02120

$2.00

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
