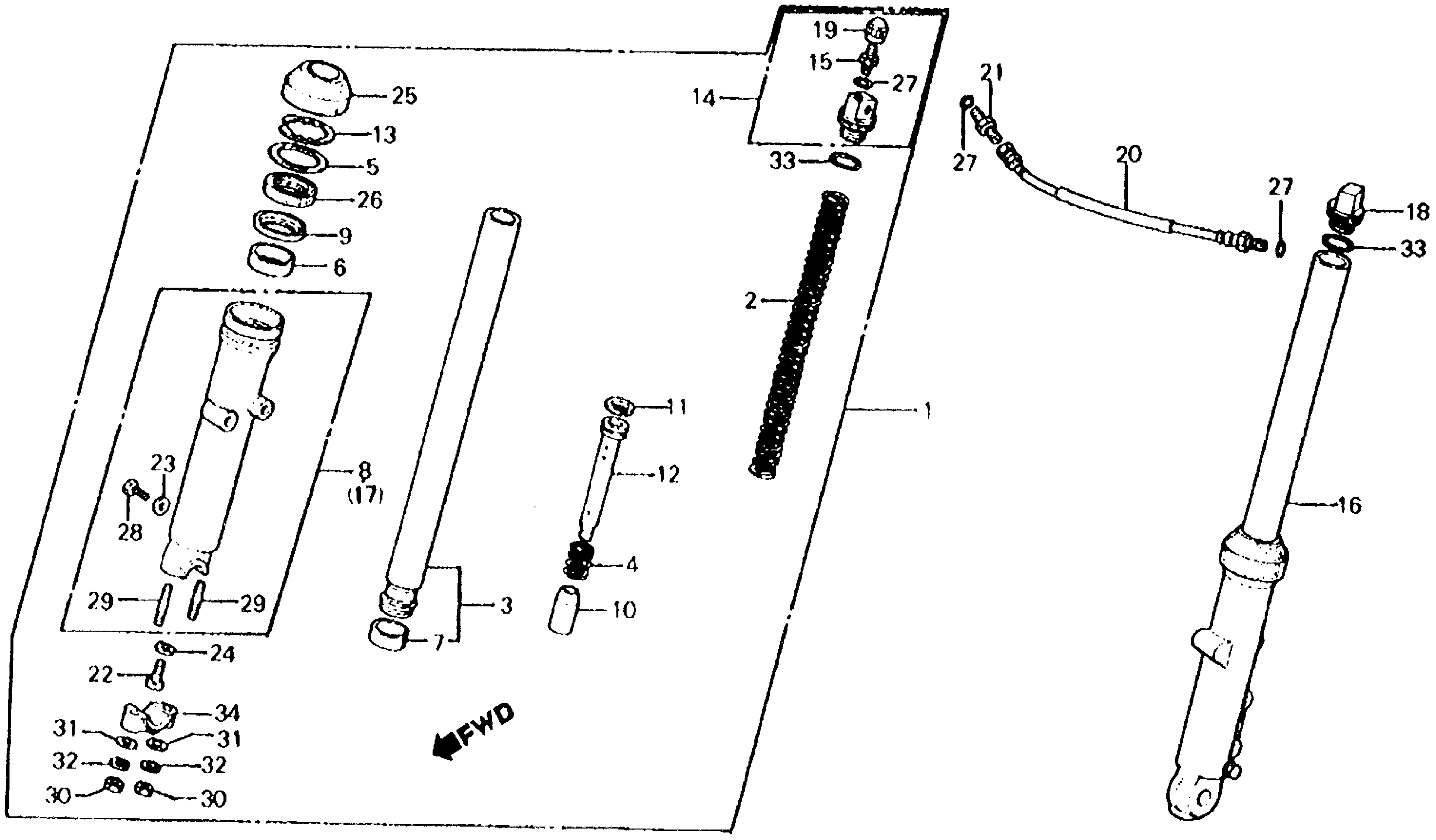

Honda CX500DA (81) DELUXE, JPN, VIN# JH2PC011-BM200011 TO JH2PC011-BM205030 CX500D FRONT FORK 81 Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA)

51400-470-751

Unavailable

2

SPRING, FR. FORK (NOT AVAILABLE)

51401-470-751

Unavailable

3

PIPE, FR. FORK

51410-470-751

Unavailable

4

SPRING, FR. FORK REBOUND

51412-331-770

$4.51

5

PLATE, BACK-UP

51413-447-731

Unavailable

6

BUSH, GUIDE

51414-447-731

$15.25

7

BUSH, SLIDER

51415-447-731

Unavailable

8

CASE, R. (LOWER) This part replaces 51421-447-731.

51421-447-732

Unavailable

8

CASE, R. (LOWER)

51421-447-732

Unavailable

9

RING, BACK-UP This part replaces 51422-376-003.

51422-376-305

Unavailable

9

RING, BACK-UP

51422-376-305

Unavailable

10

PIECE, OIL LOCKING

51432-447-731

$27.42

11

RING, PISTON

51437-373-781

Unavailable

12

PIPE, SEAT (NOT AVAILABLE)

51440-470-751

Unavailable

13

CIRCLIP (INNER)

51447-447-731

Unavailable

14

BOLT ASSY., FR. FORK (NOT AVAILABLE)

51450-470-751

Unavailable

15

VALVE, AIR (SHOWA)

51456-469-013

$33.69

16

FORK ASSY., L. FR. (SHOWA)

51500-470-751

Unavailable

17

CASE, L. (LOWER) (SHOWA) (NOT AVAILABLE)

51521-447-731

Unavailable

18

BOLT, L. FR. FORK (NOT AVAILABLE)

51555-470-751

Unavailable

19

CAP, AIR VALVE

52425-381-771

$5.05

20

HOSE, FR. FORK JOINT (NOT AVAILABLE)

53137-449-751

Unavailable

21

CONNECTOR

53139-463-000

Unavailable

22

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

22

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

23

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

24

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

25

DUST SEAL, FR. FORK

91254-413-881

$25.92

26

OIL SEAL (33X46X11)

91255-413-881

$12.17

27

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

27

O-RING (5.8X1.9)

91305-323-000

$2.92

27

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

28

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

28

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

28

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

29

BOLT, STUD (8X50) This part replaces 92700-08050-3B.

92900-08028-3B

$1.59

29

BOLT, STUD (8X50)

92900-08028-3B

$1.59

30

NUT, HEX. (8MM)

94030-08000

$1.49

31

WASHER, PLAIN (8MM)

94101-08000

$1.49

32

WASHER, SPRING (8MM)

94111-08000

$1.49

33

O-RING (23X2.8)

94608-50000

$1.49

34

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38
