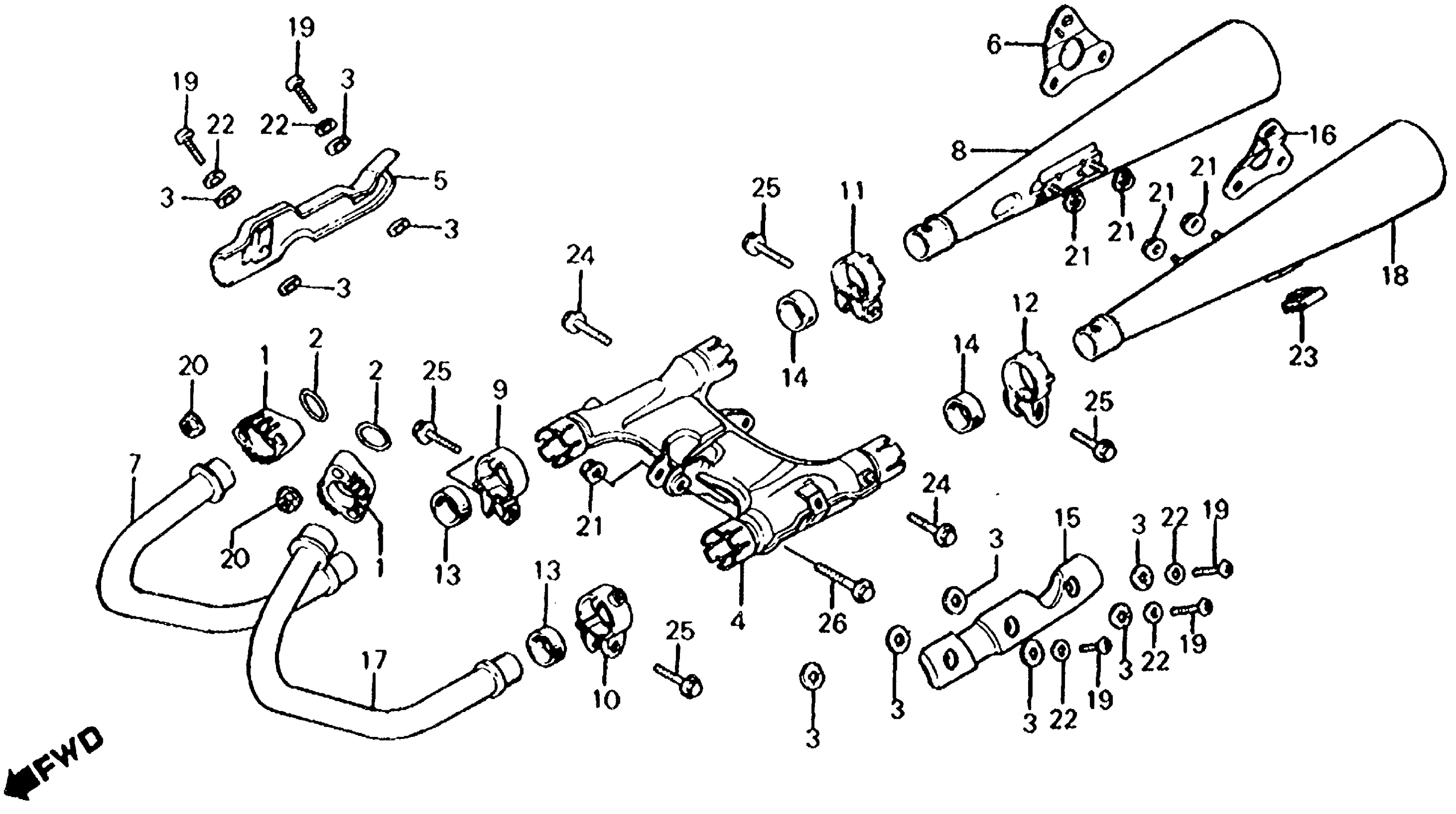

Honda CX500DA (80) DELUXE, JPN, VIN# PC01-4100002 TO PC01-4107865 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE (NOT AVAILABLE)

18231-415-000

Unavailable

2

GASKET, EX. PIPE This part replaces 18291-286-000.

18291-286-306

$6.86

2

GASKET, EX. PIPE

18291-286-306

$6.86

3

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$2.89

3

GASKET, PROTECTOR

18292-MM9-740

$2.89

3

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$2.89

4

PRE CHAMBER (NOT AVAILABLE)

18310-415-003

Unavailable

5

PROTECTOR, R. CHAMBER

18315-415-000

Unavailable

6

STAY, R. MUFFLER

18318-415-000

Unavailable

7

PIPE, R. EX. This part replaces 18320-415-003.

18320-415-610

Unavailable

8

MUFFLER, R. (NOT AVAILABLE) This part replaces 18330-415-023.

18330-415-057

Unavailable

8

MUFFLER, R. (NOT AVAILABLE) This part replaces 18330-415-033.

18330-415-057

Unavailable

8

MUFFLER, R. (NOT AVAILABLE) This part replaces 18330-415-043.

18330-415-057

Unavailable

8

MUFFLER, R. (NOT AVAILABLE) This part replaces 18330-415-053.

18330-415-057

Unavailable

8

MUFFLER, R. (NOT AVAILABLE)

18330-415-057

Unavailable

9

BAND, R. FR. MUFFLER (NOT AVAILABLE)

18373-415-000

Unavailable

10

BAND, L. FR. MUFFLER (NOT AVAILABLE)

18374-415-000

Unavailable

11

BAND, R. RR. MUFFLER

18375-413-000

$37.03

12

BAND, L. RR. MUFFLER

18376-413-000

$33.70

13

GASKET, MUFFLER This part replaces 18391-317-000.

18392-MK4-000

$12.54

13

GASKET, MUFFLER This part replaces 18391-317-010.

18392-MK4-000

$12.54

13

GASKET, MUFFLER

18392-MK4-000

$12.54

14

GASKET, RR. MUFFLER

18392-MG7-750

$12.54

14

GASKET, MUFFLER This part replaces 18392-413-000.

18392-MG7-750

$12.54

15

PROTECTOR, L. CHAMBER (NOT AVAILABLE)

18415-415-000

Unavailable

16

STAY, L. MUFFLER (NOT AVAILABLE)

18418-415-000

Unavailable

17

PIPE, L. EX. This part replaces 18420-415-003.

18420-415-610

Unavailable

18

MUFFLER, L. (NOT AVAILABLE) This part replaces 18430-415-023.

18430-415-053

Unavailable

18

MUFFLER, L. (NOT AVAILABLE) This part replaces 18430-415-033.

18430-415-053

Unavailable

18

MUFFLER, L. (NOT AVAILABLE) This part replaces 18430-415-043.

18430-415-053

Unavailable

18

MUFFLER, L. (NOT AVAILABLE)

18430-415-053

Unavailable

19

SCREW, PAN (6X14)

93500-06014-0B

$1.22

19

SCREW, PAN (6X14)

93500-06014-02

$1.22

20

NUT, FLANGE (6MM)

94050-06000

$0.60

21

NUT, FLANGE (8MM)

94050-08080

$0.87

22

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

22

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

22

WASHER, PLAIN (6MM)

94101-06800

Unavailable

23

RUBBER D, STAND STOPPER

95011-64000

$3.17

24

BOLT, FLANGE (8X16) This part replaces 95700-08016-08.

95701-08016-08

$1.62

24

BOLT, FLANGE (8X16)

95701-08016-08

$1.62

24

BOLT, FLANGE (8X16) This part replaces 95900-08016-0B.

95701-08016-08

$1.62

24

BOLT, FLANGE (8X16) This part replaces 95900-08016-08.

95701-08016-08

$1.62

24

BOLT, FLANGE (8X16) This part replaces 96500-08016-08.

95701-08016-08

$1.62

25

BOLT, FLANGE (8X35) This part replaces 95700-08035-00.

95701-08035-00

$2.78

25

BOLT, FLANGE (8X35)

95701-08035-00

$2.78

26

BOLT, FLANGE (8X40) This part replaces 95700-08040-08.

95701-08040-08

$2.04

26

BOLT, FLANGE (8X40)

95701-08040-08

$2.04
