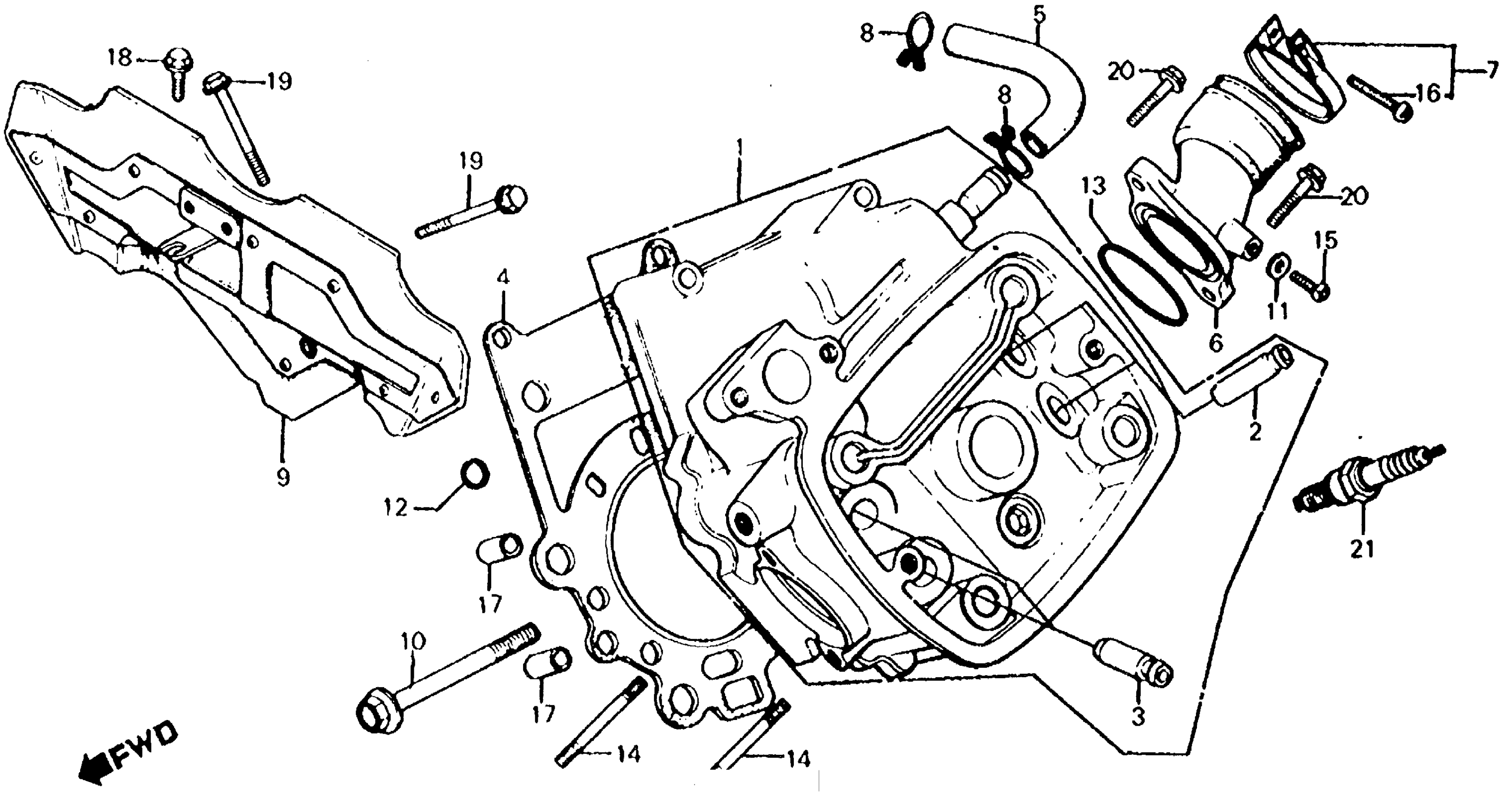

Honda CX500DA (80) DELUXE, JPN, VIN# PC01-4100002 TO PC01-4107865 LEFT CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD, L. (NOT AVAILABLE) This part replaces 12210-449-000.

12210-449-610

Unavailable

1

CYLINDER HEAD, L. (NOT AVAILABLE)

12210-449-610

Unavailable

2

GUIDE, IN VALVE This part replaces 12231-415-305.

12233-MG8-405

Unavailable

2

GUIDE, IN VALVE

12233-MG8-405

Unavailable

3

GUIDE, IN VALVE

12233-MG8-405

Unavailable

3

GUIDE, IN VALVE This part replaces 12241-415-305.

12233-MG8-405

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-415-004.

12251-415-306

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-415-014.

12251-415-306

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-415-024.

12251-415-306

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-415-034.

12251-415-306

Unavailable

4

GASKET, CYLINDER HEAD

12251-415-306

Unavailable

5

TUBE, L. BREATHER

15773-415-000

Unavailable

6

INSULATOR, L. CARBURETOR

16221-415-000

Unavailable

6

INSULATOR, L. CARBURETOR This part replaces 16221-449-003.

16221-415-000

Unavailable

7

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17255-356-000.

95018-56200

$9.55

7

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 90651-GHB-710.

95018-56200

$9.55

7

BAND, AIR CLEANER CONNECTING TUBE (56)

95018-56200

$9.55

8

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

9

SPOILER, AIR (NOT AVAILABLE)

19530-449-010

Unavailable

10

BOLT, FLANGE (10X75) This part replaces 90025-449-000.

95801-10075-00

$2.11

10

BOLT, FLANGE (10X75)

95801-10075-00

$2.11

11

WASHER, SEALING (5MM)

90452-323-000

$1.59

12

O-RING (6.9X1.5)

91302-044-013

Unavailable

13

O-RING (40X2.4)

91325-413-830

$8.72

13

O-RING (40X2.4) This part replaces 91325-567-005.

91325-413-830

$8.72

14

BOLT, STUD (6X55) This part replaces 92700-06055.

92700-06055-0B

$1.54

14

BOLT, STUD (6X55)

92700-06055-0B

$1.54

15

SCREW, PAN (5X8)

93500-05008-0A

$1.49

16

SCREW, PAN (5X20)

93500-05020-0G

$1.49

17

PIN A, DOWEL (8X14)

94301-08140

$2.25

18

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

18

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

19

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

19

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

20

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.49

20

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

21

SPARK PLUG (DR8ES-L) (NGK) This part replaces 98069-38716.

98069-38719

$2.62

21

SPARK PLUG (DR8ES-L) (NGK)

98069-38719

$2.62

21

SPARK PLUG (X24ESR-U) (DENSO)

98069-58726

$2.54
