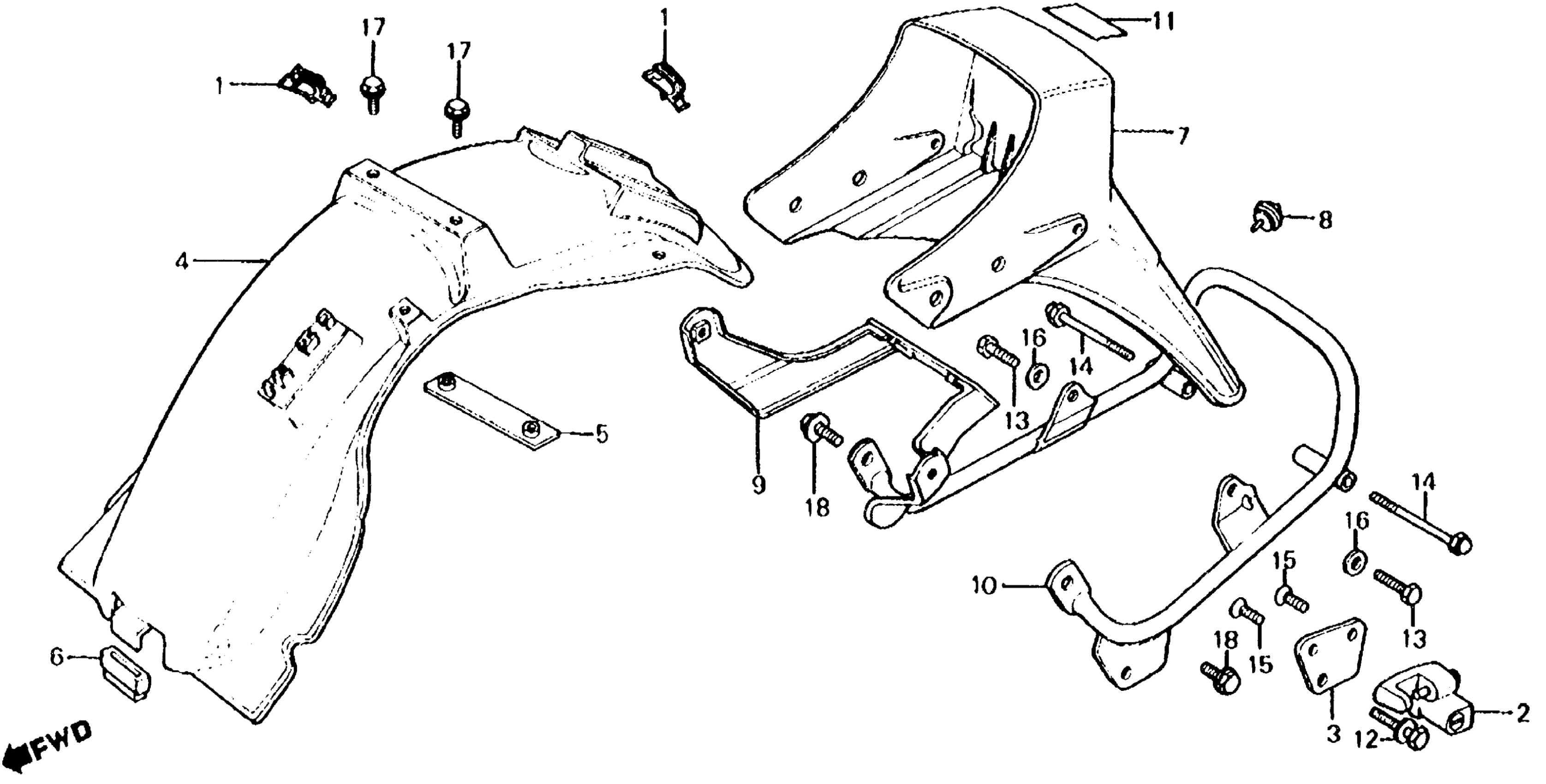

Honda CX500DA (80) DELUXE, JPN, VIN# PC01-4100002 TO PC01-4107865 CX500D REAR FENDER Diagram

#

Description
Price

1

CLIP, WIRE HARNESS

32161-393-003

$3.07

2

HOLDER ASSY., HELMET (HONDALOCK)

50710-086-007

$70.34

2

HOLDER ASSY., HELMET (HONDALOCK) This part replaces 50710-371-007.

50710-086-007

$70.34

3

PLATE, HELMET HOLDER (NOT AVAILABLE)

50715-415-000

Unavailable

4

FENDER, RR. (NOT AVAILABLE)

80100-415-880

Unavailable

5

PLATE, RR. FENDER (NOT AVAILABLE)

80110-415-000

Unavailable

6

RUBBER, FENDER CUSHION (NOT AVAILABLE)

80115-415-000

Unavailable

7

COWL, RR. *R8CS* (CANDY PRESTO RED)

80500-415-000ZE

Unavailable

8

PLUG, RR. COWL (NOT AVAILABLE)

80501-415-000

$2.64

9

STAY, RR. COWL

80510-415-000

Unavailable

10

BUMPER, RR. (NOT AVAILABLE)

84101-415-000

Unavailable

11

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-415-880

Unavailable

12

BOLT, SPECIAL (8X16MM) (NOT AVAILABLE)

90105-413-000

Unavailable

13

BOLT,HEX(8X20) This part replaces 92000-08020-0B.

92101-08020-0B

$1.66

14

BOLT, CAP (6X70) (NOT AVAILABLE)

92600-06070-0B

Unavailable

15

SCREW, FLAT (6X10) This part replaces 93600-06010.

93600-06010-0A

$3.90

15

SCREW, FLAT (6X10)

93600-06010-0A

$3.90

16

WASHER, PLAIN (8MM)

94101-08200

$1.49

17

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

17

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

17

BOLT, FLANGE (6X16) This part replaces 95900-06016-08.

95701-06016-08

$1.49

18

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

18

BOLT, FLANGE (8X16)

95701-08016-00

$1.80
