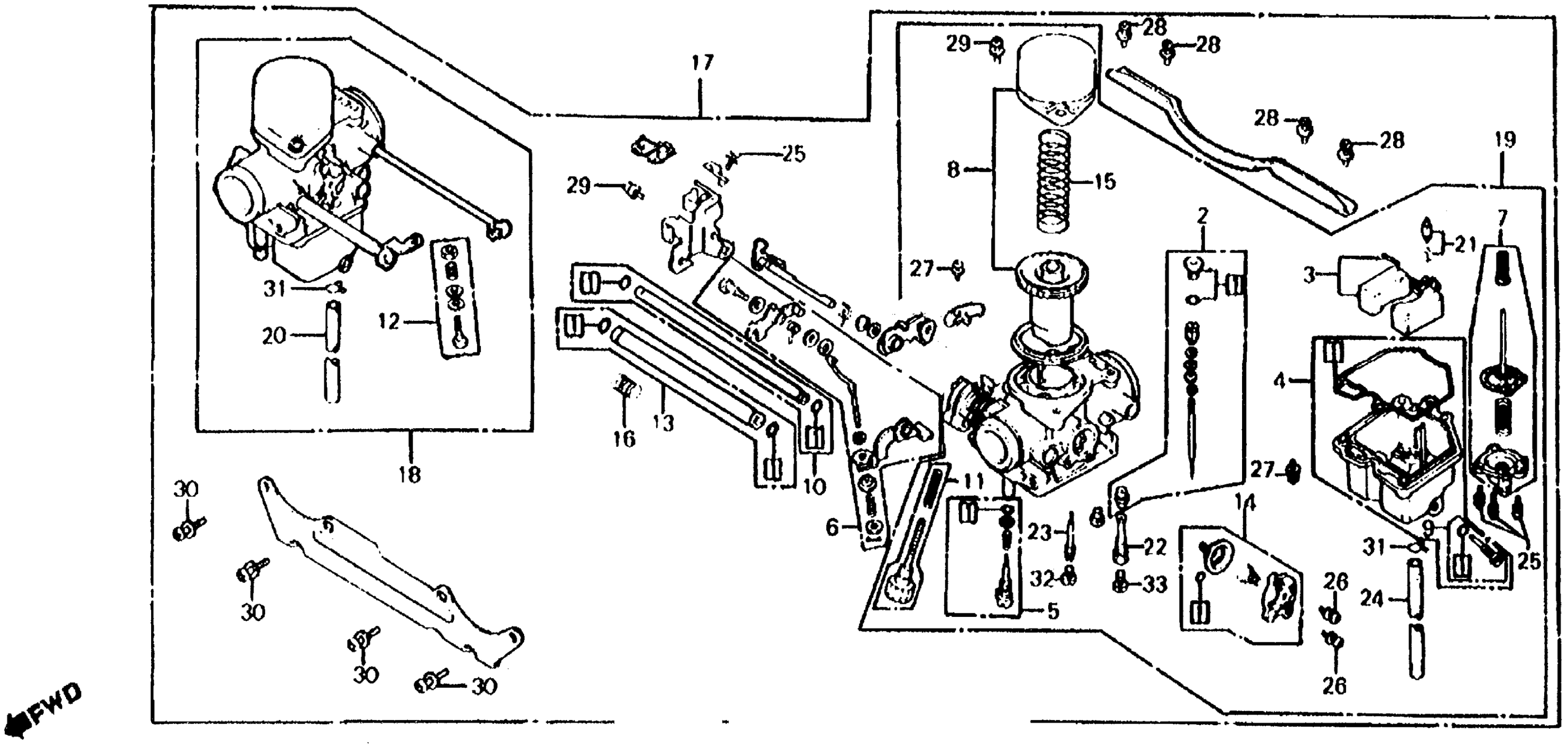

Honda CX500DA (80) DELUXE, JPN, VIN# PC01-4100002 TO PC01-4107865 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-MA4-305

$57.50

1

GASKET SET This part replaces 16010-449-771.

16010-MA4-305

$57.50

2

NEEDLE SET, JET (NOT AVAILABLE)

16012-449-771

Unavailable

3

FLOAT SET This part replaces 16013-413-751.

16013-413-851

$90.77

3

FLOAT SET

16013-413-851

$90.77

4

CHAMBER SET, FLOAT This part replaces 16015-413-004.

16015-425-871

Unavailable

4

CHAMBER SET, FLOAT

16015-425-871

Unavailable

5

SCREW SET A

16016-KC2-970

$25.35

5

SCREW SET A This part replaces 16016-413-751.

16016-KC2-970

$25.35

6

ROD SET, PUMP (NOT AVAILABLE)

16019-413-751

$50.74

7

DIAPHRAGM SET, PUMP

16021-413-751

Unavailable

8

PISTON SET, VACUUM (NOT AVAILABLE) This part replaces 16022-470-671.

16022-449-771

Unavailable

9

CHAMBER SET B, FLOAT (NOT AVAILABLE) This part replaces 16023-425-671.

16023-425-871

Unavailable

10

JOINT SET, FUEL (NOT AVAILABLE)

16026-413-751

Unavailable

11

SCREW SET B (NOT AVAILABLE)

16028-425-671

Unavailable

12

SCREW SET C

16029-PC6-005

Unavailable

12

SCREW SET C This part replaces 16029-413-004.

16029-PC6-005

Unavailable

13

JOINT SET, FUEL (NOT AVAILABLE)

16037-449-771

Unavailable

14

VALVE SET, AIR CUT This part replaces 16048-429-671.

16048-443-901

Unavailable

14

VALVE SET, AIR CUT This part replaces 16048-429-771.

16048-443-901

Unavailable

15

SPRING, VACUUM PISTON (NOT AVAILABLE)

16050-415-003

Unavailable

16

SPRING, COMPRESSION COIL (NOT AVAILABLE)

16051-413-004

Unavailable

17

CARBURETOR ASSY. (NOT AVAILABLE)

16100-470-672

Unavailable

18

CARBURETOR ASSY., R. (NOT AVAILABLE)

16101-470-672

Unavailable

19

CARBURETOR ASSY., L. (NOT AVAILABLE)

16102-470-672

Unavailable

20

TUBE This part replaces 16144-413-751.

16199-MN5-405

$11.86

20

TUBE This part replaces 16195-449-405.

16199-MN5-405

$11.86

21

VALVE, FLOAT

16155-413-751

$32.50

22

HOLDER, NEEDLE JET

16165-449-771

$31.28

23

NOZZLE, MAIN (NOT AVAILABLE)

16166-415-003

Unavailable

24

TUBE This part replaces 16195-449-405.

16199-MN5-405

$11.86

24

TUBE This part replaces 16195-449-771.

16199-MN5-405

$11.86

26

SCREW-WASHER (4X12)

93892-04012-00

$1.49

27

SCREW-WASHER (4X16)

93892-04016-00

$1.49

28

SCREW-WASHER (5X12)

93892-05012-00

$1.49

29

SCREW-WASHER (5X16)

93892-05016-00

$1.49

30

SCREW-WASHER (6X14)

93892-06014-00

$1.49

31

CLIP, TUBE (B6.5)

95002-02650

$1.49

32

JET, MAIN (#78)

99101-GHB-0780

Unavailable

32

JET, MAIN (#78) This part replaces 99101-393-0780.

99101-GHB-0780

Unavailable

33

JET, MAIN (#115) This part replaces 99101-GHB-1150.

99101-MAZ-1150

$8.77

33

JET, SECONDARY MAIN (#115)

99101-MAZ-1150

$8.77

33

JET, MAIN (#115) This part replaces 99101-393-1150.

99101-MAZ-1150

$8.77

33

JET, MAIN (#115) This part replaces 99102-393-1150.

99101-MAZ-1150

$8.77
