- Partiron
- OEM Parts
- Honda
- MOTORCYCLE
- 1980
- CX500DA (80) DELUXE, JPN, VIN# PC01-4100002 TO PC01-4107865
CAMSHAFT

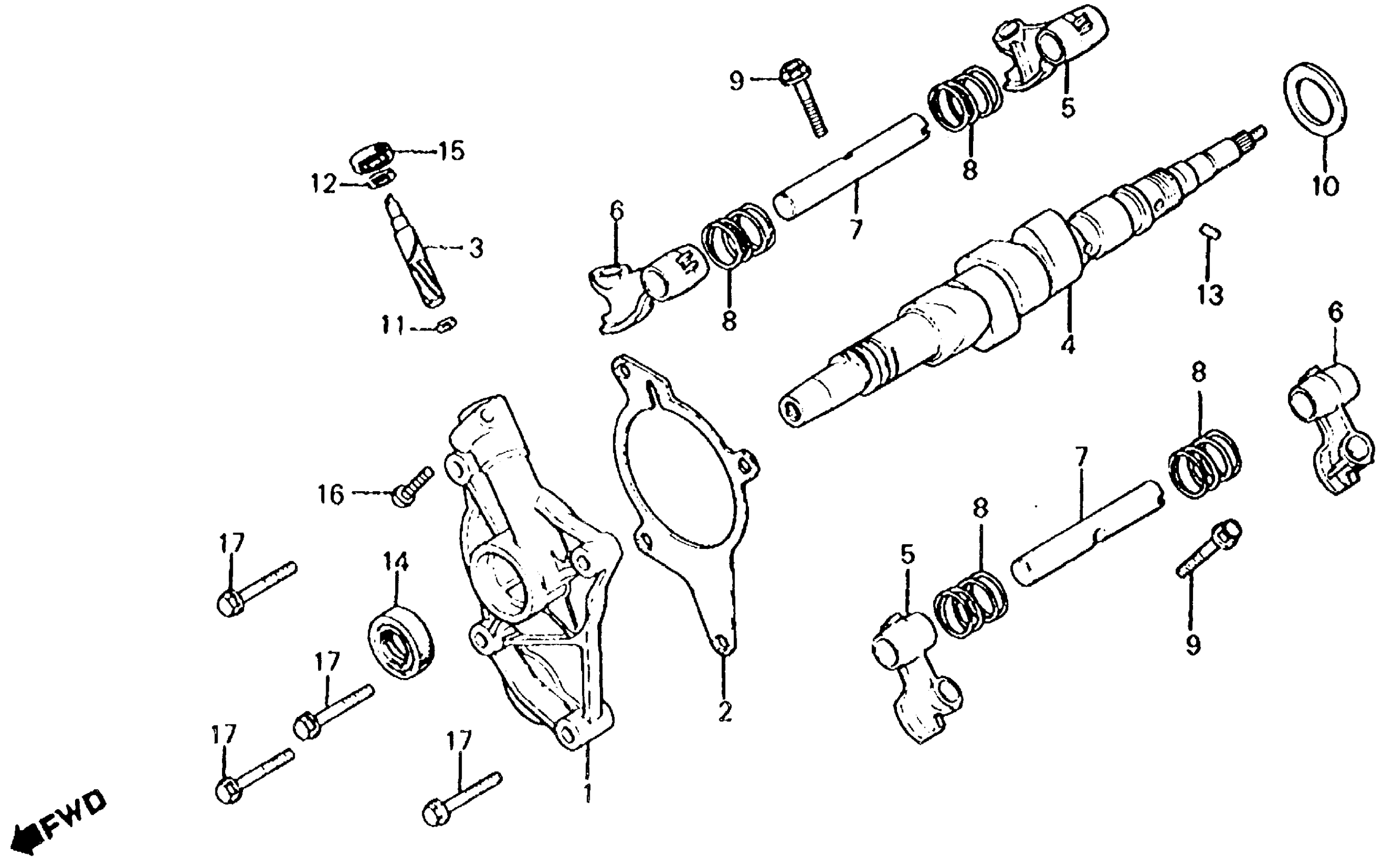

Honda CX500DA (80) DELUXE, JPN, VIN# PC01-4100002 TO PC01-4107865 CAMSHAFT Diagram
#
Description
Price
1
HOLDER, CAMSHAFT (NOT AVAILABLE) This part replaces 12221-415-020.
12221-415-030
Unavailable
1
HOLDER, CAMSHAFT (NOT AVAILABLE)
12221-415-030
Unavailable
2
GASKET, CAMSHAFT HOLDER This part replaces 12230-415-000.
12230-415-306
Unavailable
2
GASKET, CAMSHAFT HOLDER
12230-415-306
Unavailable
2
GASKET, CAMSHAFT HOLDER This part replaces 12230-449-700.
12230-415-306
Unavailable
3
GEAR, TACHOMETER (NOT AVAILABLE) This part replaces 12431-415-000.
12431-415-010
Unavailable
3
GEAR, TACHOMETER (NOT AVAILABLE)
12431-415-010
Unavailable
4
CAMSHAFT (NOT AVAILABLE) | Use up to Engine SN 4103721 This part replaces 14100-415-020.
14100-MA1-000
Unavailable
4
CAMSHAFT (NOT AVAILABLE) This part replaces 14100-415-030.
14100-MA1-000
Unavailable
5
ARM A, ROCKER (LOWER) This part replaces 14441-415-000.
14441-415-010
Unavailable
5
ARM A, ROCKER (LOWER)
14441-415-010
Unavailable
6
ARM B, ROCKER (LOWER) (NOT AVAILABLE) This part replaces 14442-415-000.
14442-415-010
Unavailable
6
ARM B, ROCKER (LOWER) (NOT AVAILABLE)
14442-415-010
Unavailable
7
SHAFT, ROCKER ARM (LOWER) (NOT AVAILABLE) This part replaces 14451-415-000.
14451-ME7-000
Unavailable
8
SPRING A, VALVE ROCKER ARM (NOT AVAILABLE)
14453-415-000
Unavailable
9
BOLT, SPECIAL (6X30) (NOT AVAILABLE)
90008-415-000
Unavailable
11
WASHER
90441-044-300
Unavailable
12
WASHER, THRUST (6.7MM) (NOT AVAILABLE)
90458-324-000
Unavailable
13
ROLLER (5X8.5) (NOT AVAILABLE)
91105-415-000
Unavailable
15
OIL SEAL (6X14.5X5)
91211-415-003
Unavailable
15
OIL SEAL (6X14.5X5) This part replaces 91211-415-004.
91211-415-003
Unavailable
