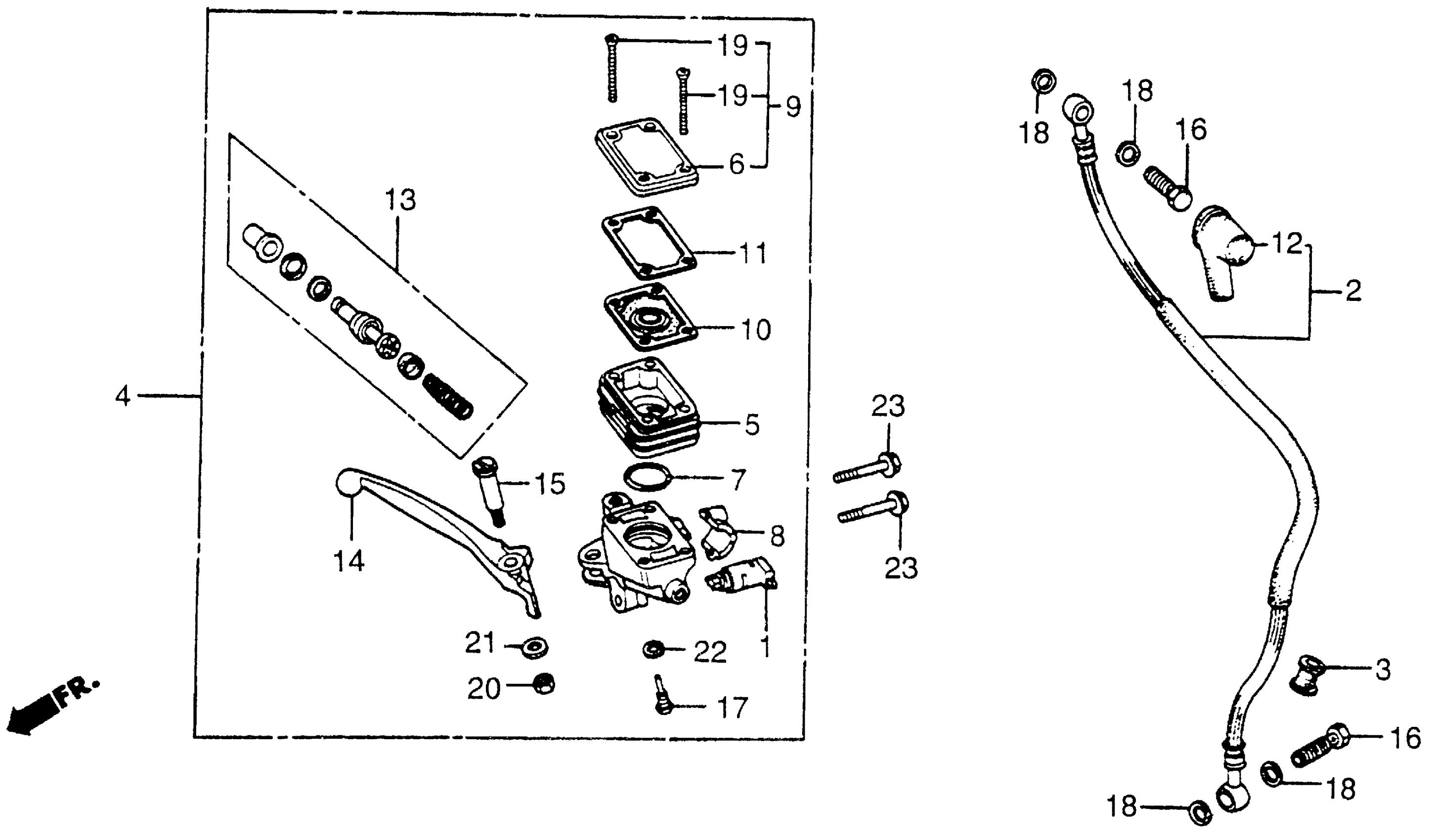

Honda CX500DA (79) DELUXE, JPN, VIN# PC01-4000005 FRONT MASTER CYLINDER II Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP This part replaces 35340-422-003.

35340-422-013

$17.65

1

SWITCH ASSY., FR. STOP

35340-422-013

$17.65

2

HOSE ASSY., FR. BRAKE (NOT AVAILABLE) This part replaces 45126-415-771.

45126-470-671

Unavailable

3

BUSH, BRAKE HOSE

45146-371-000

Unavailable

4

MASTER CYLINDER ASSY. (NOT AVAILABLE) This part replaces 45500-415-770.

45500-415-773

Unavailable

4

MASTER CYLINDER ASSY. (NOT AVAILABLE) This part replaces 45500-415-771.

45500-415-773

Unavailable

4

MASTER CYLINDER ASSY. (NOT AVAILABLE) This part replaces 45500-415-772.

45500-415-773

Unavailable

4

MASTER CYLINDER ASSY. (NOT AVAILABLE)

45500-415-773

Unavailable

5

CUP, OIL This part replaces 45511-422-006.

45511-463-006

Unavailable

5

CUP, OIL This part replaces 45511-422-016.

45511-463-006

Unavailable

5

CUP, OIL

45511-463-006

Unavailable

6

CAP SET, OIL CUP CAP, OIL CUP This part replaces 45513-422-671.

45519-422-671

Unavailable

6

CAP SET, OIL CUP

45519-422-671

Unavailable

7

O-RING (39.7X3.5)

45516-422-006

$9.13

8

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

8

HOLDER, MASTER CYLINDER This part replaces 45517-422-006.

45517-MA5-671

$29.30

9

CAP SET, OIL CUP

45519-422-671

Unavailable

10

DIAPHRAGM This part replaces 45520-422-006.

45520-422-026

Unavailable

10

DIAPHRAGM This part replaces 45520-422-016.

45520-422-026

Unavailable

10

DIAPHRAGM

45520-422-026

Unavailable

11

PLATE, DIAPHRAGM

45521-422-006

Unavailable

12

BOOT, MASTER CYLINDER

45522-422-000

$8.68

13

MASTER CYLINDER SET This part replaces 45530-442-305.

45530-442-315

Unavailable

13

MASTER CYLINDER SET

45530-442-315

Unavailable

14

LEVER, R. HANDLEBAR This part replaces 53175-422-000.

53175-438-010

Unavailable

14

LEVER, R. HANDLEBAR This part replaces 53175-438-000.

53175-438-010

Unavailable

14

LEVER, R. HANDLEBAR

53175-438-010

Unavailable

16

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

16

BOLT, OIL

90145-300-010

$9.68

17

SCREW, PAN (4X13.5) (NOT AVAILABLE)

90183-422-000

Unavailable

18

WASHER, OIL BOLT

90545-300-000

$3.99

19

SCREW, FLAT (4X37)

93600-04037-1G

$1.49

20

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

20

NUT, HEX. (6MM)

94002-06000-0S

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49

22

WASHER, SPRING (4MM)

94111-04000

$1.49
