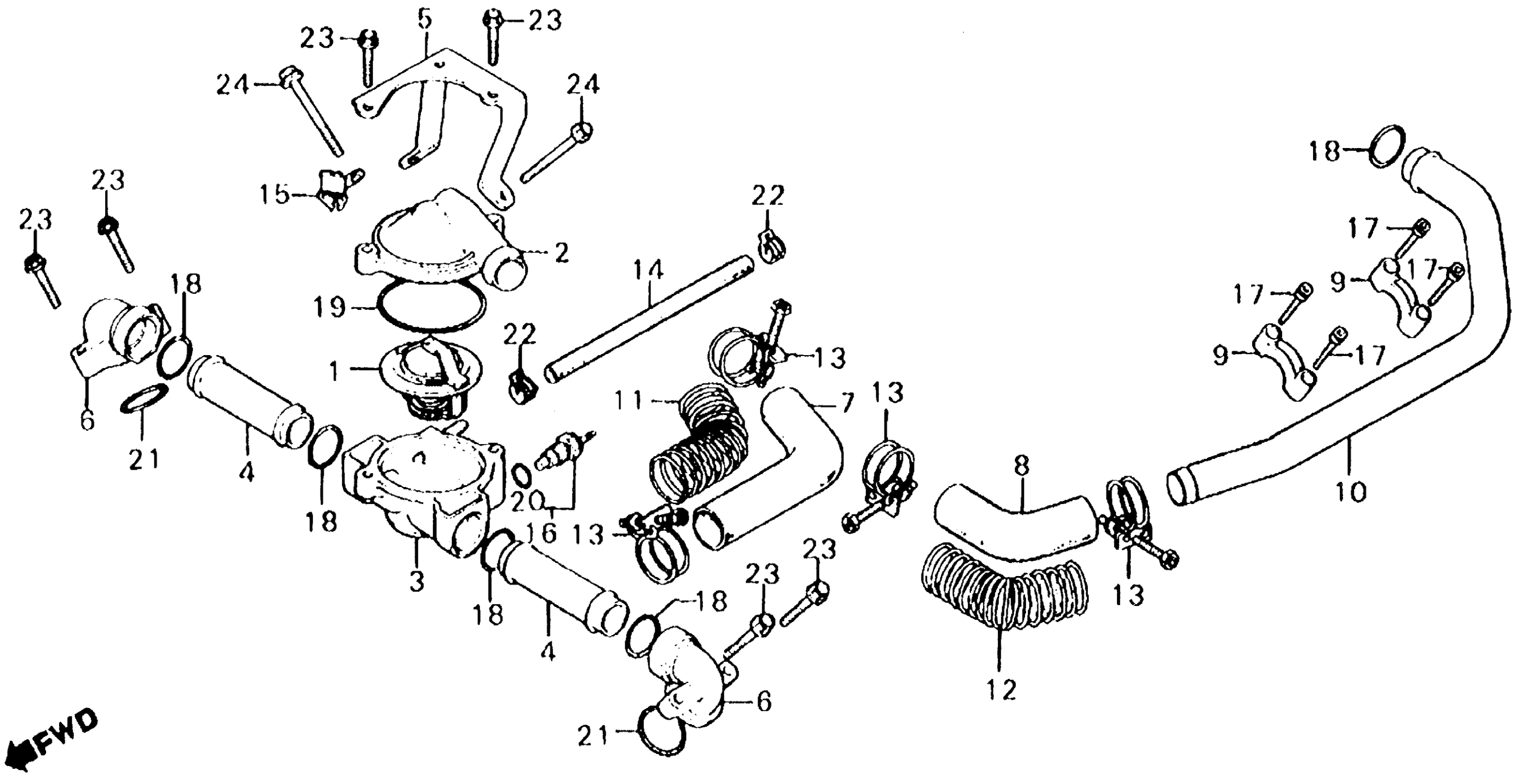

Honda CX500CA (82) CUSTOM, JPN, VIN# JH2PC010-BM300001 TO JH2PC010-BM307398 THERMOSTAT Diagram

THERMOSTAT UNIT

19300-611-005

$45.22

THERMOSTAT UNIT This part replaces 19300-657-003.

19300-611-005

$45.22

COVER, THERMOSTAT (NOT AVAILABLE)

19315-415-000

Unavailable

CASE, THERMOSTAT

19411-415-000

Unavailable

PIPE, WATER (UPPER)

19414-415-000

Unavailable

STAY, THERMOSTAT (NOT AVAILABLE)

19418-415-010

Unavailable

JOINT A, WATER PIPE

19421-415-000

Unavailable

HOSE, WATER (UPPER) (NOT AVAILABLE)

19501-415-000

Unavailable

HOSE, WATER (LOWER)

19502-415-000

Unavailable

CLAMP, WATER PIPE (NOT AVAILABLE)

19503-415-000

Unavailable

PIPE, RR. WATER

19504-415-000

Unavailable

WIRE A, GUARD (NOT AVAILABLE)

19511-449-000

Unavailable

WIRE B, GUARD (NOT AVAILABLE)

19512-449-000

Unavailable

BAND, HOSE (NOT AVAILABLE)

19515-449-000

Unavailable

TUBE (5X240)

19521-415-000

Unavailable

CLAMP A, CABLE (NOT AVAILABLE) This part replaces 32111-333-000.

32117-371-000

Unavailable

SENDING UNIT, WATER TEMPERATURE (DENSO)

37750-611-154

Unavailable

BOLT, SPECIAL (5X22) (NOT AVAILABLE)

90089-415-000

Unavailable

O-RING (21.9X2.3)

91301-MB6-003

$2.11

O-RING (21.9X2.3) This part replaces 91302-371-013.

91301-MB6-003

$2.11

O-RING (21.9X2.3) This part replaces 91302-371-023.

91301-MB6-003

$2.11

O-RING (53.8X3.1)

91302-657-000

$5.01

O-RING (13.5X1.4)

91307-PH7-660

$2.83

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.83

O-RING (23X2.8)

94608-50000

$1.49

CLIP, TUBE (D10.5)

95002-41050-08

$2.34

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

BOLT, FLANGE (6X50)

95701-06050-00

$2.06
