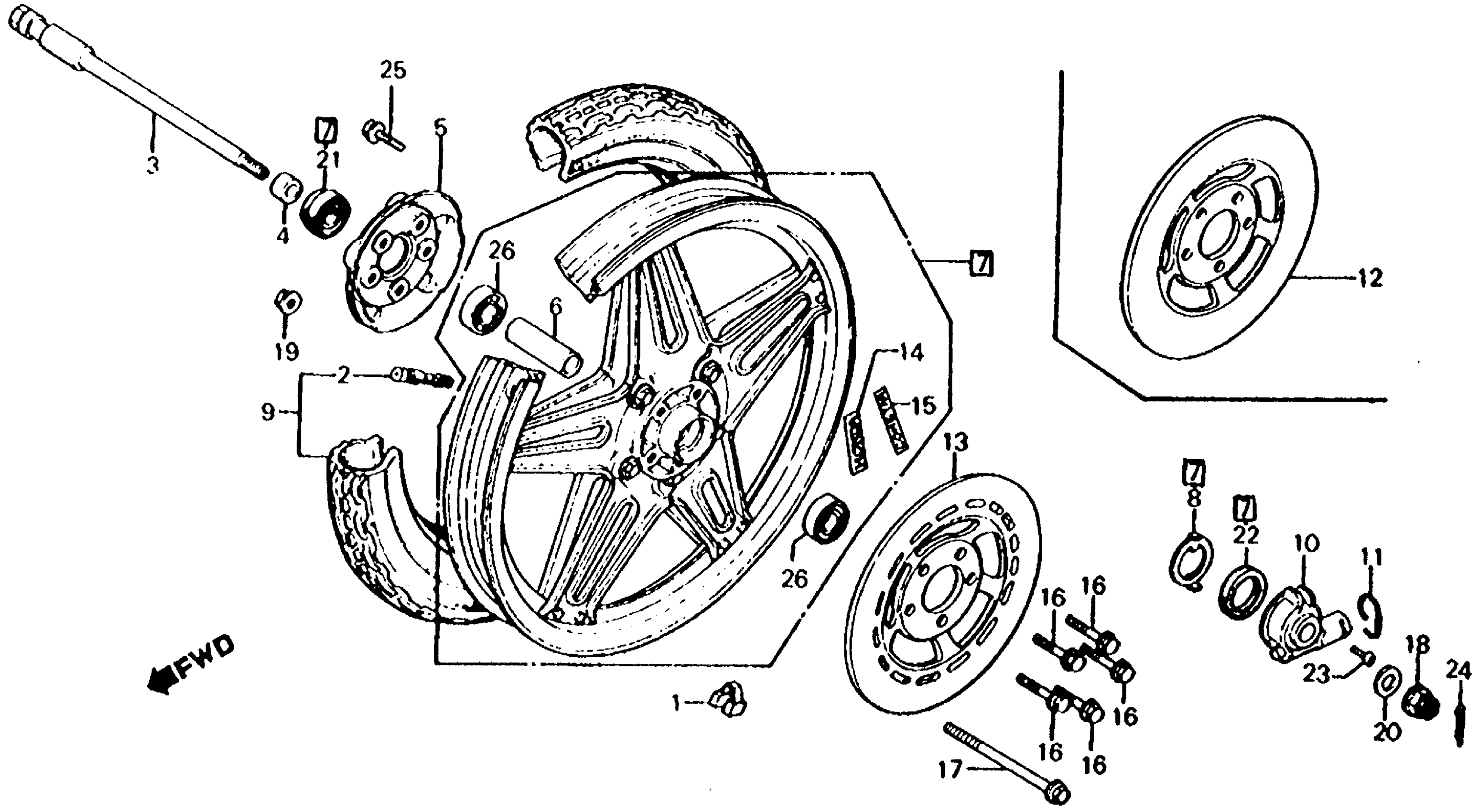

Honda CX500CA (82) CUSTOM, JPN, VIN# JH2PC010-BM300001 TO JH2PC010-BM307398 FRONT WHEEL + DISC Diagram

#

Description
Price

1

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

1

WEIGHT, BALANCE (30G)

42706-410-000

$11.69

2

VALVE, RIM (BS)

42753-425-003

$11.00

2

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

3

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-449-750

Unavailable

5

COVER, FR. WHEEL

44607-449-000

Unavailable

6

COLLAR, FR. AXLE DISTANCE

44620-286-000

Unavailable

7

WHEEL, FR. (NOT AVAILABLE)

44650-413-940

Unavailable

8

RETAINER, GEAR BOX

44680-410-000

$5.80

9

TIRE ASSY., FR. (3.50S19) (4PR) (BS) (NOT AVAILABLE)

44710-MC9-671

Unavailable

9

TIRE ASSY., FR. (3.50S19) (4PR) (BS) (NOT AVAILABLE) This part replaces 44710-449-751.

44710-MC9-671

Unavailable

9

TIRE ASSY., FR. (3.50S19) (DUNLOP) (NOT AVAILABLE) This part replaces 44710-449-752.

44710-460-842

Unavailable

9

TIRE ASSY., FR. (3.50S19) (DUNLOP) (NOT AVAILABLE)

44710-460-842

Unavailable

10

BOX ASSY., SPEEDOMETER GEAR

44800-461-771

Unavailable

11

CLIP, SPEEDOMETER CABLE

44810-461-771

Unavailable

12

DISK, FR. BRAKE (NOT AVAILABLE)

45251-MA1-000

Unavailable

17

BOLT, FLANGE (8X90) (NOT AVAILABLE)

90155-449-750

Unavailable

19

NUT, FLANGE (8MM)

90309-428-731

$3.35

21

OIL SEAL (26X42X7)

91252-230-003

$10.56

21

OIL SEAL (26X42X7) This part replaces 91252-230-005.

91252-230-003

$10.56

22

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-003.

91258-410-013

$9.80

22

DUST SEAL (40X50X5) (ARAI) This part replaces 91258-410-006.

91258-410-013

$9.80

22

DUST SEAL (40X50X5) (ARAI)

91258-410-013

$9.80

26

BEARING, RADIAL BALL (6302Z)

96120-63020-10

Unavailable
