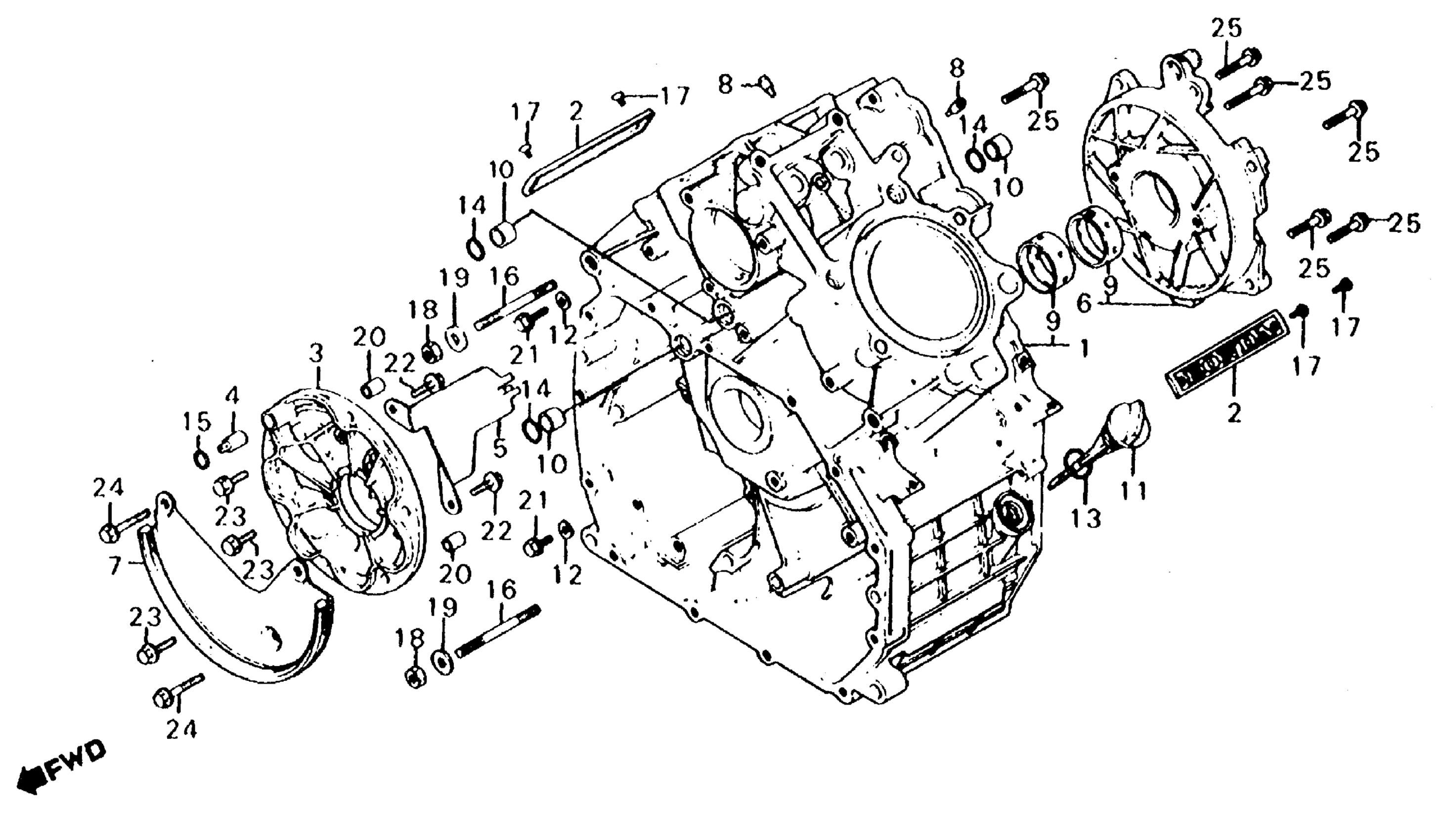

Honda CX500CA (82) CUSTOM, JPN, VIN# JH2PC010-BM300001 TO JH2PC010-BM307398 CYLINDER BLOCK Diagram

#

Description
Price

1

BLOCK ASSY., CYLINDER

11100-449-020

Unavailable

2

EMBLEM, CYLINDER BLOCK (NOT AVAILABLE)

11105-415-670

Unavailable

3

HOLDER, TRANSMISSION (NOT AVAILABLE)

11131-415-000

Unavailable

4

ORIFICE (8MM) (NOT AVAILABLE)

11132-415-000

Unavailable

5

PLATE, TRANSMISSION HOLDER (NOT AVAILABLE)

11133-415-000

Unavailable

6

CAP, CRANKSHAFT (NOT AVAILABLE)

11140-415-000

Unavailable

7

SEPARATOR COMP,OI This part replaces 11365-415-000.

11365-ME2-505

Unavailable

8

VALVE, OIL CONTROL ORIFICE

12901-413-000

Unavailable

9

BEARING A, MAIN (BLUE) (NOT AVAILABLE)

13325-415-305

Unavailable

9

BEARING B, MAIN (BLACK)

13326-415-305

Unavailable

9

BEARING C, MAIN (BROWN)

13327-415-305

Unavailable

10

COLLAR, O-RING

15155-300-000

$3.47

11

DIPSTICK, OIL

15650-MK7-670

Unavailable

11

DIPSTICK, OIL This part replaces 15650-449-000.

15650-MK7-670

Unavailable

12

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.49

13

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.59

13

O-RING (22X3.0)

91307-425-003

$2.59

14

O-RING (13.6X2.4)

91301-268-020

$2.95

15

O-RING (8X1.7) (ARAI) This part replaces 91303-001-000.

91306-HB3-003

$1.81

15

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.81

16

BOLT, STUD (10X90) This part replaces 92700-10090.

92700-10090-0B

Unavailable

16

BOLT, STUD (10X90)

92700-10090-0B

Unavailable

17

SCREW, TAPPING (4X8) (NOT AVAILABLE)

93902-34180

Unavailable

18

NUT, HEX. (10MM)

94001-10000-0S

$1.49

19

WASHER, PLAIN (10MM)

94101-10000

$1.49

20

PIN A, DOWEL (8X14)

94301-08140

$2.25

21

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

21

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

22

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

22

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

23

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

23

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

24

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

24

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

25

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

25

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
