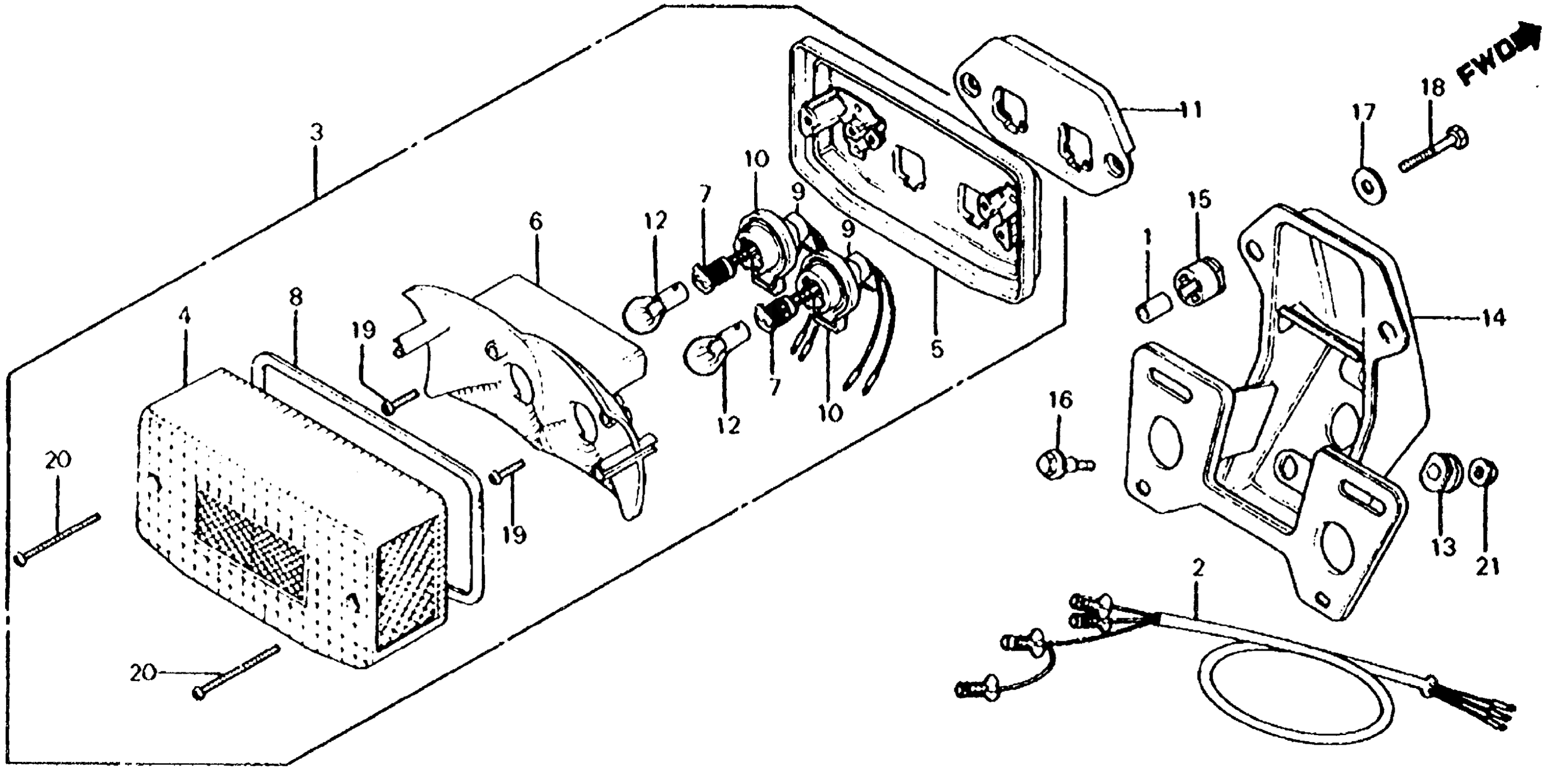

Honda CX500CA (82) CUSTOM, JPN, VIN# JH2PC010-BM300001 TO JH2PC010-BM307398 CX500C TAILLIGHT Diagram

COLLAR, DISTANCE (NOT AVAILABLE)

19024-692-000

Unavailable

SUB-WIRE HARNESS (NOT AVAILABLE)

32101-449-770

Unavailable

TAILLIGHT UNIT (NOT AVAILABLE) This part replaces 33701-425-772.

33701-MC9-830

Unavailable

LENS, TAILLIGHT

33702-425-771

Unavailable

BASE, TAILLIGHT

33703-425-772

Unavailable

REFLECTOR This part replaces 33704-425-771.

33704-460-791

Unavailable

WIRE, TAILLIGHT (STANLEY)

33705-147-671

Unavailable

GASKET, LENS

33708-425-771

Unavailable

SOCKET, TAILLIGHT

33710-425-772

Unavailable

RUBBER, CUSHION (NOT AVAILABLE)

33711-425-771

Unavailable

GASKET, TAILLIGHT BASE (NOT AVAILABLE)

33718-425-771

Unavailable

BULB, TAILLIGHT (12V27/8W) (STANLEY)

34906-425-771

$4.40

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84701-449-770

Unavailable

RUBBER, FENDER

84905-333-000

$4.22

BOLT, FLANGE (6X20)

90113-449-000

$3.19

WASHER (6.5X18)

90545-323-700

$1.89

BOLT, HEX. (6X28) (NOT AVAILABLE) This part replaces 93000-06028.

93000-06028-0A

Unavailable

BOLT, HEX. (6X28) (NOT AVAILABLE)

93000-06028-0A

Unavailable

SCREW, PAN (4X12)

93500-04012-0A

$1.49

SCREW, PAN (4X55)

93500-04055-4J

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49
