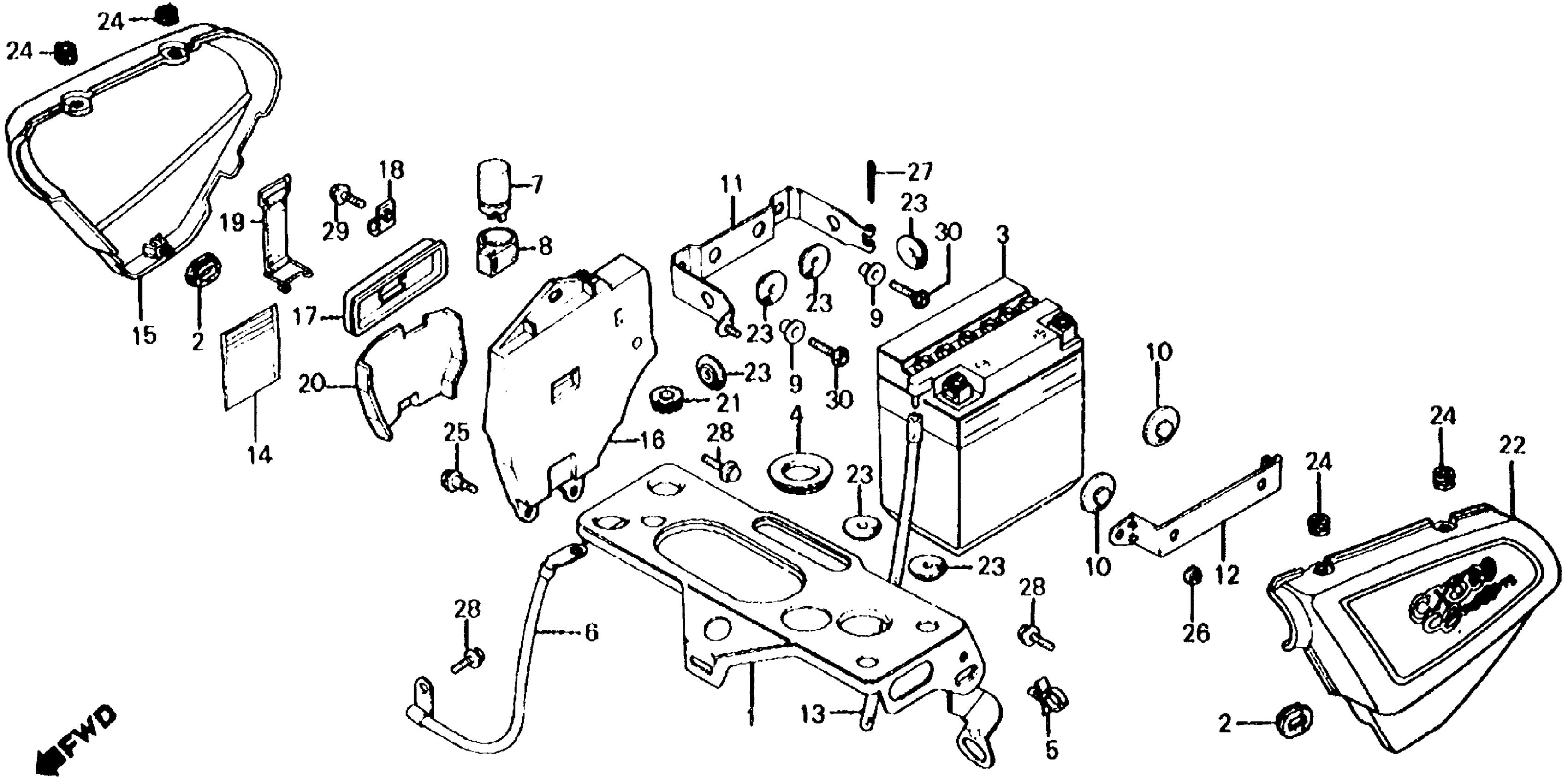

Honda CX500CA (82) CUSTOM, JPN, VIN# JH2PC010-BM300001 TO JH2PC010-BM307398 CX500C SIDE COVER + BATTERY Diagram

#

Description
Price

1

PLATE, AIR CLEANER HOLDER (NOT AVAILABLE)

17215-449-000

Unavailable

2

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

3

BATTERY (12N14-3A) This part replaces 31500-415-671.

31500-425-672AH

$65.05

3

BATTERY (12N14-3A) This part replaces 31500-425-671.

31500-425-672AH

$65.05

3

BATTERY (12N14-3A) This part replaces 31500-425-672.

31500-425-672AH

$65.05

3

BATTERY (12N14-3A) This part replaces 31500-425-677.

31500-425-672AH

$65.05

3

BATTERY (12N14-3A) This part replaces 31500-415-601.

31500-425-672AH

$65.05

3

BATTERY (12N14-3A) This part replaces 31500-461-770.

31500-425-672AH

$65.05

3

BATTERY (12N14-3A) This part replaces 31500-461-771.

31500-425-672AH

$65.05

3

BATTERY (12N14-3A) This part replaces 31500-461-772.

31500-425-672AH

$65.05

4

GROMMET, WIRE

32112-611-000

Unavailable

5

CLIP, IGNITION WIRE (8MM) This part replaces 32175-647-920.

30701-883-000

$2.91

6

CABLE, BATTERY GROUND

32601-415-000

Unavailable

7

RELAY, TURN SIGNAL This part replaces 38300-415-P00.

38300-MG2-008

Unavailable

7

RELAY, TURN SIGNAL This part replaces 38300-415-004.

38300-MG2-008

Unavailable

7

RELAY, TURN SIGNAL This part replaces 38300-415-671.

38300-MG2-008

Unavailable

7

RELAY, TURN SIGNAL This part replaces 38301-415-004.

38300-MG2-008

Unavailable

7

RELAY, TURN SIGNAL This part replaces 38301-415-671.

38300-MG2-008

Unavailable

8

SUSPENSION, TURN SIGNAL RELAY

38306-292-000

$3.76

9

COLLAR, CHAIN CASE (NOT AVAILABLE)

40514-147-000

Unavailable

10

RUBBER B, BATTERY

50327-300-000

$4.58

10

RUBBER B, BATTERY This part replaces 50327-300-010.

50327-300-000

$4.58

11

BAND A, BATTERY

50327-449-830

Unavailable

12

BAND B, BATTERY (NOT AVAILABLE)

50328-415-000

Unavailable

13

TUBE, BATTERY BREATHER This part replaces 31502-KA8-600.

31502-KJ2-405

Unavailable

14

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.30

15

COVER, R. SIDE *R104CU* (CANDY MUSE RED) (NOT AVAILABLE)

835A0-449-840ZA

Unavailable

15

COVER, R. SIDE *B100MU* (COSMO BLACK METALLIC) (NOT AVAILABLE)

835A0-449-840ZB

Unavailable

16

BOX, TOOL

83501-449-000

Unavailable

17

COVER, TOOL BOX (NOT AVAILABLE)

83502-449-000

Unavailable

18

PLATE, TOOL SETTING (NOT AVAILABLE)

83503-449-000

Unavailable

19

BAND, TOOL SETTING

83504-449-000

Unavailable

20

COVER B, TOOL BOX (NOT AVAILABLE)

83505-449-000

Unavailable

21

GROMMET, SIDE COVER (NOT AVAILABLE)

83551-385-000

Unavailable

22

COVER, L. SIDE *R104CU* (CANDY MUSE RED) (NOT AVAILABLE)

836A0-449-840ZA

Unavailable

22

COVER, L. SIDE *B100MU* (COSMO BLACK METALLIC) (NOT AVAILABLE)

836A0-449-840ZB

Unavailable

23

RUBBER, BATTERY BOX

83618-323-000

$2.47

24

GROMMET, SIDE COVER SETTING

83705-413-000

$4.17

25

BOLT, FLANGE (6MM)

90111-162-000

$2.89

26

NUT, FLANGE (6MM)

94050-06080

$1.49

27

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

27

PIN, COTTER (3.0X45)

94201-30450

$1.49

28

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

28

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

29

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

29

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

30

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

30

BOLT, FLANGE (6X20)

95701-06020-08

$1.49
