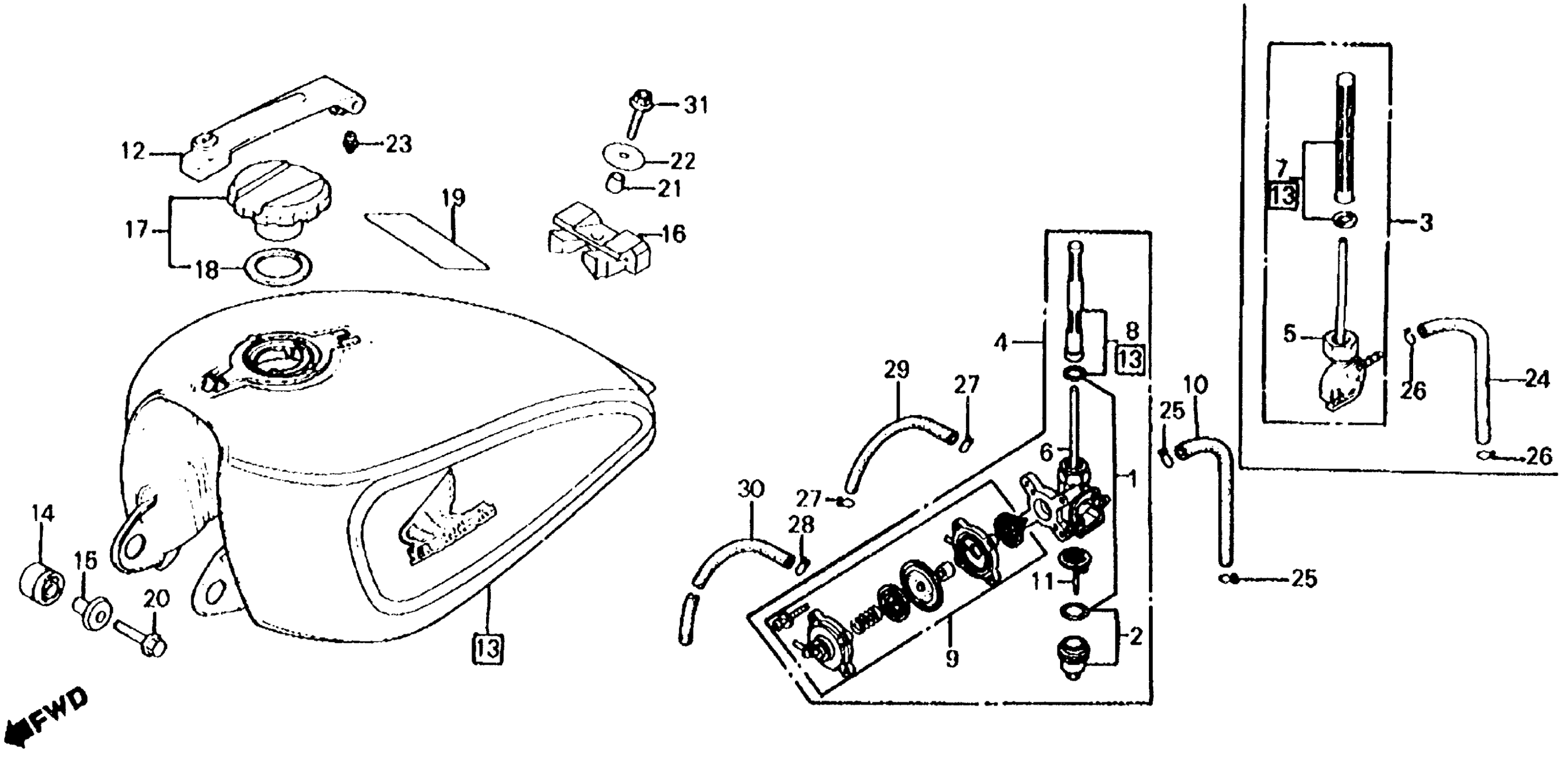

Honda CX500CA (82) CUSTOM, JPN, VIN# JH2PC010-BM300001 TO JH2PC010-BM307398 CX500C FUEL TANK Diagram

#

Description
Price

1

O-RING

16080-471-831

Unavailable

2

CUP, FUEL STRAINER

16081-471-831

$25.14

4

PETCOCK ASSY. (NOT AVAILABLE)

16950-449-841

Unavailable

6

BODY, PETCOCK This part replaces 16951-MA1-731.

16951-MA1-732

Unavailable

6

BODY, PETCOCK

16951-MA1-732

Unavailable

8

SCREEN SET, FUEL STRAINER

16952-449-751

$32.71

9

COVER SET, PETCOCK This part replaces 16953-ME5-005.

16953-ME5-025

$44.58

9

COVER SET, PETCOCK This part replaces 16953-449-751.

16953-ME5-025

$44.58

10

TUBE, FUEL (NOT AVAILABLE)

16956-449-750

Unavailable

11

FILTER, CUP

16959-461-751

$17.88

12

LID, FUEL TANK (NOT AVAILABLE)

17530-443-305

Unavailable

12

LID, FUEL TANK (NOT AVAILABLE) This part replaces 17530-443-612.

17530-443-305

Unavailable

12

LID, FUEL TANK (NOT AVAILABLE) This part replaces 17530-422-017.

17530-443-305

Unavailable

12

LID, FUEL TANK (NOT AVAILABLE) This part replaces 17530-443-611.

17530-443-305

Unavailable

13

TANK SET, FUEL *R104CU* (CANDY MUSE RED) (NOT AVAILABLE)

175A1-449-840ZA

Unavailable

13

TANK SET, FUEL *B100MU* (COSMO BLACK METALLIC) (NOT AVAILABLE)

175A1-449-840ZB

Unavailable

14

RUBBER, FR. TANK

17611-449-010

$6.34

15

COLLAR, FR. TANK SETTING

17612-449-000

Unavailable

16

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-449-010

Unavailable

17

CAP, FUEL FILLER

17620-469-000

Unavailable

18

GASKET This part replaces 17632-176-771.

17632-176-772

$11.02

18

GASKET This part replaces 17632-469-000.

17632-176-772

$11.02

19

LABEL, DRIVE CAUTION *NH0* (TYPEW) (CHAMPIONSHIP WHITE)

87560-181-760ZB

Unavailable

20

BOLT, FLANGE (8X36)

90111-362-000

$4.80

21

COLLAR (8MM)

90324-300-000

$4.35

22

WASHER (8.3MM)

90534-011-000

$1.49

23

SCREW-WASHER (4X6)

93892-04006-08

$1.49

25

CLIP, TUBE (B7)

95002-02070

$1.80

27

CLIP, TUBE (B12)

95002-02120

$2.00

28

CLIP, TUBE (C6.5)

95002-35000

$1.49

29

BULK HOSE, VACUUM (3.5X1000) (3.5X240)

95005-35001-20M

$9.67

30

BULK HOSE, VACUUM (3.5X1000) (3.5X800)

95005-35001-30M

$8.63

31

BOLT, FLANGE (8X28) This part replaces 95700-08028-08.

95701-08028-08

$2.06

31

BOLT, FLANGE (8X28)

95701-08028-08

$2.06
