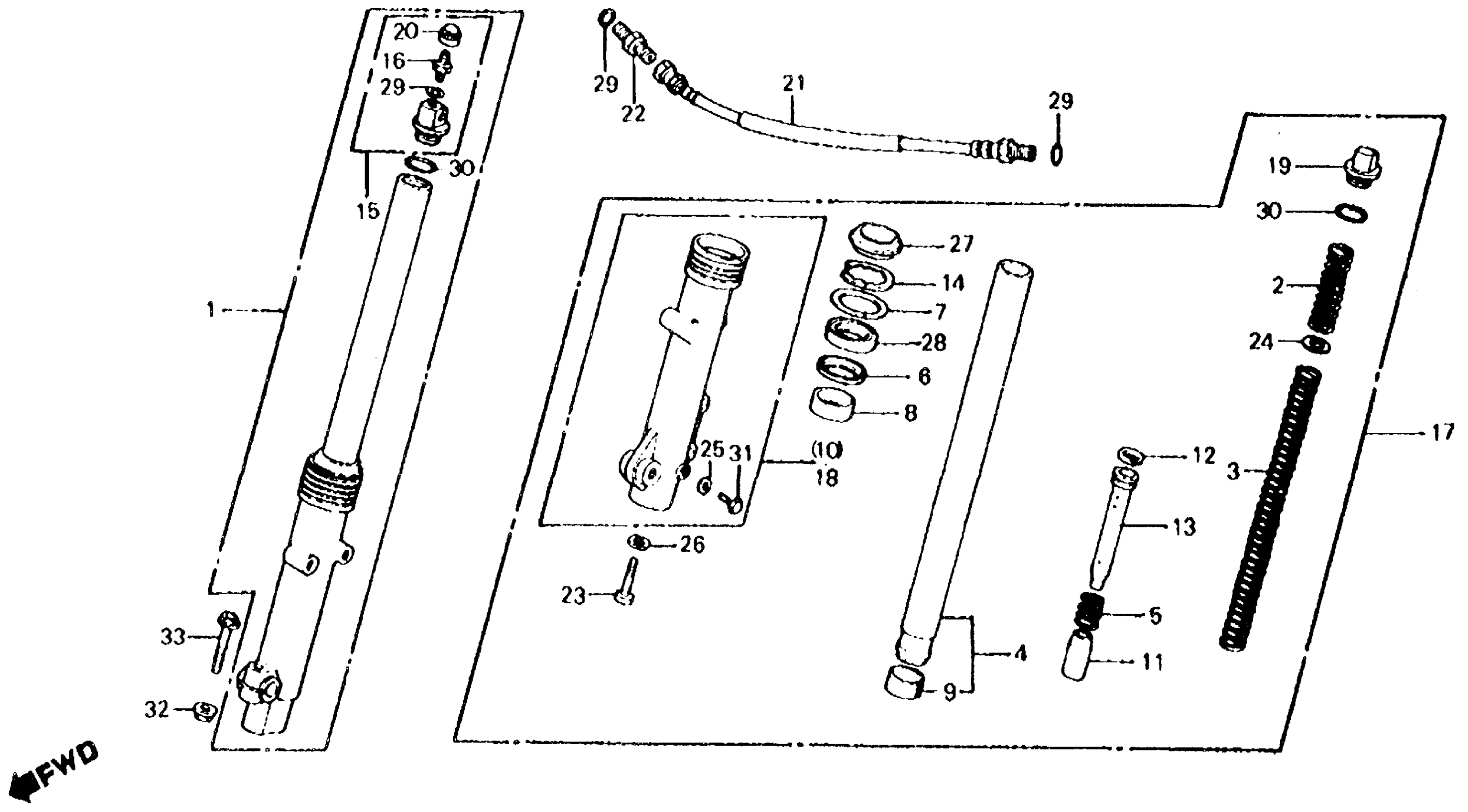

Honda CX500CA (82) CUSTOM, JPN, VIN# JH2PC010-BM300001 TO JH2PC010-BM307398 CX500C FRONT FORK 81-82 Diagram

#

Description
Price

1

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-449-751

Unavailable

2

SPRING A, FR. FORK (SHOWA)

51401-449-751

Unavailable

3

SPRING B, FR. FORK (SHOWA) (NOT AVAILABLE)

51402-449-751

Unavailable

4

PIPE, FR. FORK (SHOWA) (NOT AVAILABLE)

51410-449-751

Unavailable

5

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

6

RING, BACK-UP

51412-422-003

$7.49

6

RING, BACK-UP This part replaces 51412-422-405.

51412-422-003

$7.49

6

RING, BACK-UP This part replaces 51412-428-305.

51412-422-003

$7.49

6

RING, BACK-UP This part replaces 51412-428-315.

51412-422-003

$7.49

7

PLATE, BACK-UP (SHOWA)

51413-469-003

Unavailable

8

BUSH, GUIDE This part replaces 51414-469-003.

51414-MBV-711

$19.63

9

BUSH, SLIDER (SHOWA)

51415-469-003

Unavailable

10

CASE, R. (LOWER) (NOT AVAILABLE)

51421-449-751

Unavailable

11

PIECE, OIL LOCK (NOT AVAILABLE)

51432-461-771

Unavailable

12

RING, PISTON

51437-400-771

$6.30

13

PIPE, SEAT (NOT AVAILABLE)

51440-449-751

Unavailable

14

CIRCLIP (INNER) (51.5MM)

51447-469-003

$4.17

15

BOLT ASSY., FR. FORK (SHOWA)

51450-449-751

Unavailable

16

VALVE, AIR (SHOWA)

51456-469-013

$33.69

17

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-449-751

Unavailable

18

CASE, L. (LOWER) (NOT AVAILABLE)

51521-449-751

Unavailable

19

BOLT, L. FR. FORK (SHOWA) (NOT AVAILABLE)

51555-449-751

Unavailable

20

CAP, AIR VALVE

52425-381-771

$5.05

21

HOSE, FR. FORK JOINT (NOT AVAILABLE)

53137-449-751

Unavailable

22

CONNECTOR

53139-463-000

Unavailable

23

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

23

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

24

WASHER (16MM) (NOT AVAILABLE)

90504-356-000

Unavailable

25

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

26

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

27

DUST SEAL (35MM)

91254-434-003

$13.96

28

OIL SEAL (35X48X11)

91255-KBH-003

$13.24

28

OIL SEAL (35X48X11) This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

28

OIL SEAL (35X48X11) This part replaces 91255-434-013.

91255-KBH-003

$13.24

29

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

29

O-RING (5.8X1.9)

91305-323-000

$2.92

29

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

30

O-RING (25.7X2.8)

91356-428-003

$3.60

31

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

31

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

31

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

32

NUT, FLANGE (8MM)

94050-08000

$1.49

33

BOLT, FLANGE (8X50) This part replaces 95700-08050-00.

95701-08050-00

$2.28

33

BOLT, FLANGE (8X50)

95701-08050-00

$2.28
