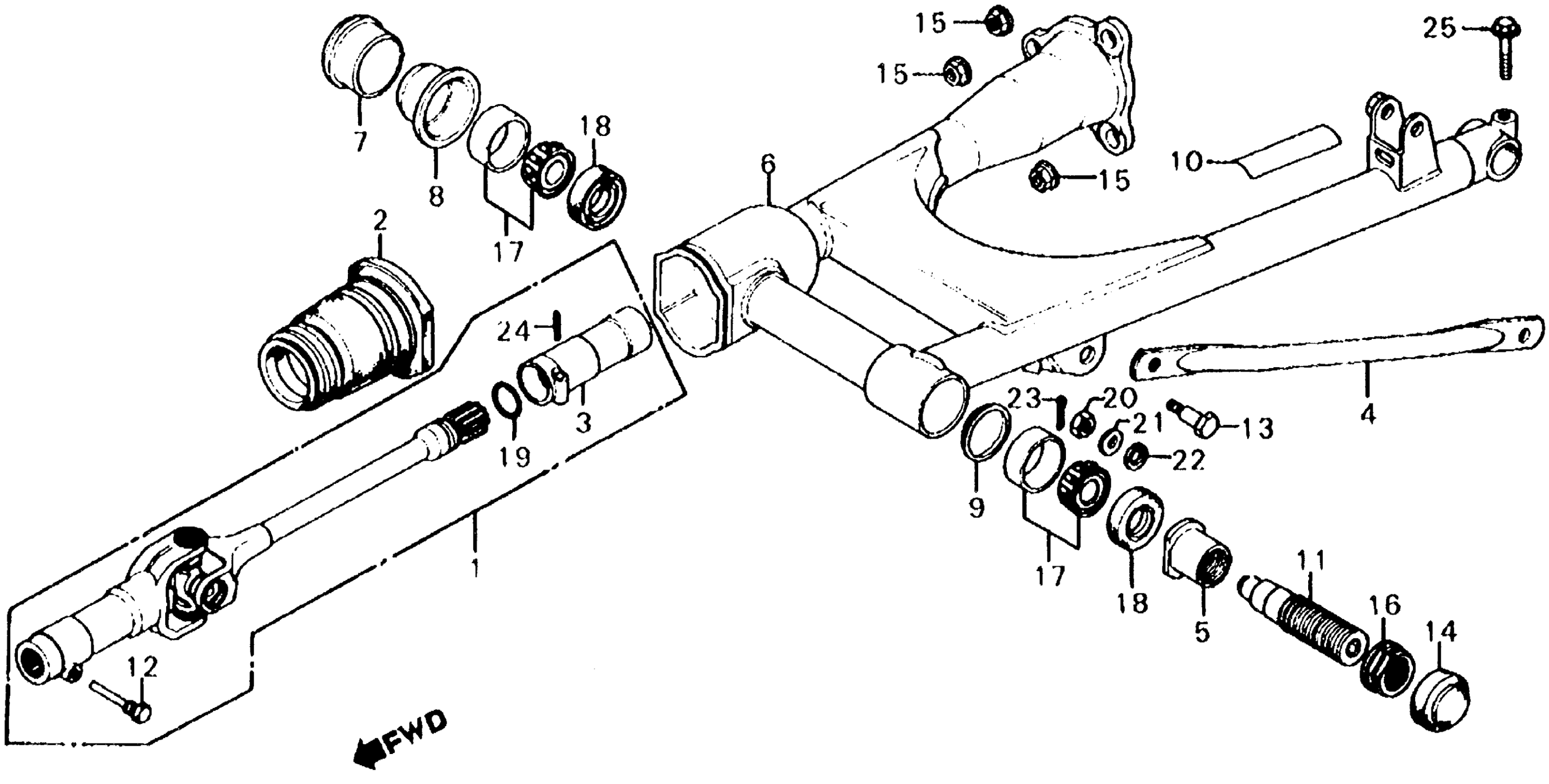

Honda CX500CA (81) CUSTOM, JPN, VIN# JH2PC010-BM200006 TO JH2PC010-BM212752 SWINGARM Diagram

#

Description
Price

1

SHAFT, PROPELLER This part replaces 40200-415-010.

40200-415-020

Unavailable

1

SHAFT, PROPELLER

40200-415-020

Unavailable

2

BOOT, JOINT (NOT AVAILABLE)

40207-415-000

Unavailable

3

JOINT, DRIVESHAFT This part replaces 40210-415-000.

40210-415-010

Unavailable

3

JOINT, DRIVESHAFT

40210-415-010

Unavailable

4

ARM, RR. BRAKE STOPPER This part replaces 43431-415-000.

43431-415-010

Unavailable

4

ARM, RR. BRAKE STOPPER

43431-415-010

Unavailable

5

NUT, FORK PIVOT (NOT AVAILABLE)

50197-371-300

Unavailable

6

SWINGARM, RR. *NH1* (BLACK) (NOT AVAILABLE)

52100-415-000ZA

Unavailable

7

CAP, RR. SWINGARM PIVOT (NOT AVAILABLE)

52115-415-000

Unavailable

8

HOLDER, RR. SWINGARM PIVOT BEARING (NOT AVAILABLE)

52117-415-000

Unavailable

9

PLATE, DUST SEAL

52118-415-000

Unavailable

10

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

11

BOLT, PIVOT (NOT AVAILABLE)

90121-415-000

Unavailable

12

BOLT, SPECIAL (8MM) (NOT AVAILABLE)

90127-415-000

Unavailable

13

BOLT, RR. BRAKE STOPPER ARM

90133-286-000

$4.48

14

CAP, LOCK NUT (NOT AVAILABLE)

90303-431-670

Unavailable

15

NUT, HEX. (10MM)

90308-357-000

$4.85

16

NUT, LOCK (23MM) (NOT AVAILABLE)

90354-431-670

Unavailable

17

BEARING (30202) (NIPPON SEIKO) This part replaces 91066-415-003.

91066-415-006

Unavailable

17

BEARING (30202) (NIPPON SEIKO) This part replaces 91066-415-004.

91066-415-006

Unavailable

17

BEARING (30202) (NIPPON SEIKO) This part replaces 91066-415-005.

91066-415-006

Unavailable

17

BEARING (30202) (NIPPON SEIKO)

91066-415-006

Unavailable

18

OIL SEAL (20X35X7)

91254-GF0-761

Unavailable

18

OIL SEAL (20X35X8)

91266-415-003

Unavailable

18

OIL SEAL (20X35X8) This part replaces 91266-415-004.

91266-415-003

Unavailable

19

O-RING (22X1.7) (NOT AVAILABLE)

91359-415-300

Unavailable

20

NUT, HEX. (8MM)

94001-08000-0S

$1.49

21

WASHER, PLAIN (8MM)

94101-08000

$1.49

22

WASHER, SPRING (8MM)

94111-10000

$1.49

23

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

23

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

23

PIN, COTTER (2.0X22)

94201-20220

$1.49

23

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

23

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

23

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

23

PIN, COTTER (2.0X35)

94201-20350

$1.49

23

PIN, COTTER (2.0X22)

94201-29220

$1.49

24

PIN, SPRING (4X22)

94305-40222

$1.83

25

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

25

BOLT, FLANGE (8X32)

95701-08032-00

$1.49
