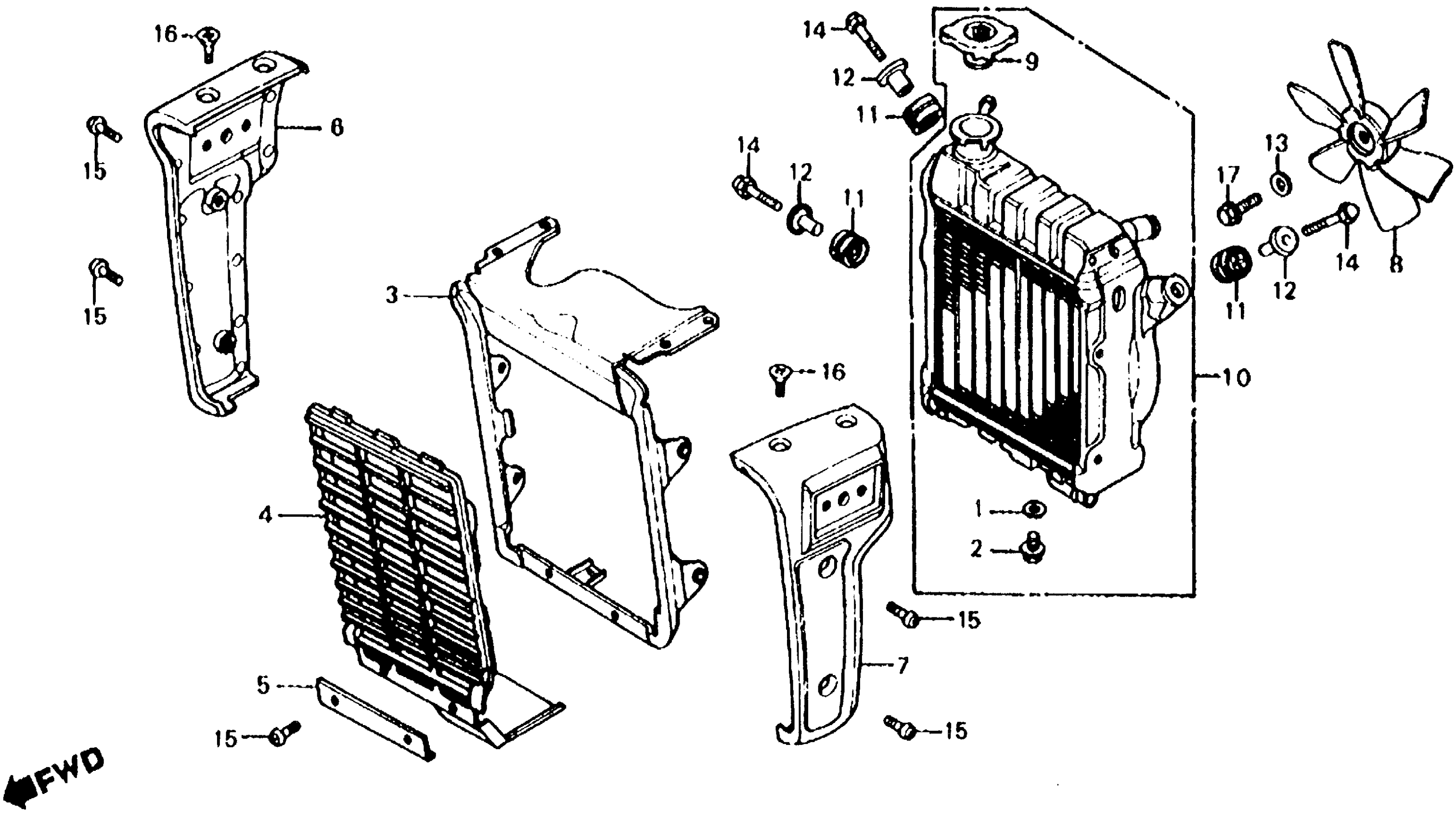

Honda CX500CA (81) CUSTOM, JPN, VIN# JH2PC010-BM200006 TO JH2PC010-BM212752 RADIATOR + COOLING FAN Diagram

#

Description
Price

1

GASKET, DRAIN This part replaces 19012-PA0-003.

19012-ZB5-003

Unavailable

1

GASKET, DRAIN

19012-ZB5-003

Unavailable

1

GASKET, DRAIN This part replaces 19012-611-003.

19012-ZB5-003

Unavailable

2

VALVE, DRAIN

19013-415-004

Unavailable

3

COVER, RADIATOR (NOT AVAILABLE)

19031-470-670

Unavailable

4

GRILLE, RADIATOR (NOT AVAILABLE)

19032-449-000

Unavailable

5

COVER, RADIATOR (LOWER)

19033-470-670

Unavailable

6

PLATE, R. SIDE RADIATOR

19035-449-000

Unavailable

7

PLATE, L. SIDE RADIATOR (NOT AVAILABLE)

19036-449-000

Unavailable

8

FAN, COOLING This part replaces 19040-415-020.

19040-MA1-000

$54.25

8

FAN, COOLING

19040-MA1-000

$54.25

9

CAP, RADIATOR (DENSO) This part replaces 19045-PA0-014.

19045-692-003

$37.56

9

CAP, RADIATOR (DENSO) This part replaces 19045-449-770.

19045-692-003

$37.56

9

CAP, RADIATOR (DENSO) This part replaces 19045-634-003.

19045-692-003

$37.56

9

CAP, RADIATOR (DENSO)

19045-692-003

$37.56

10

RADIATOR ASSY. This part replaces 19110-449-770.

19110-449-771

Unavailable

10

RADIATOR ASSY.

19110-449-771

Unavailable

11

RUBBER, RADIATOR SETTING (NOT AVAILABLE)

19115-415-000

Unavailable

12

COLLAR, RADIATOR MOUNTING (NOT AVAILABLE)

19119-449-000

Unavailable

13

WASHER, PLAIN (8.5X22X2.3)

90509-642-000

$6.84

14

BOLT, CAP (6X32)

92600-06032-0B

Unavailable

15

SCREW, PAN (6X12)

93500-06012-0B

$1.49

16

SCREW, FLAT (6X12) (NOT AVAILABLE)

93600-06012-0B

Unavailable

17

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

17

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
