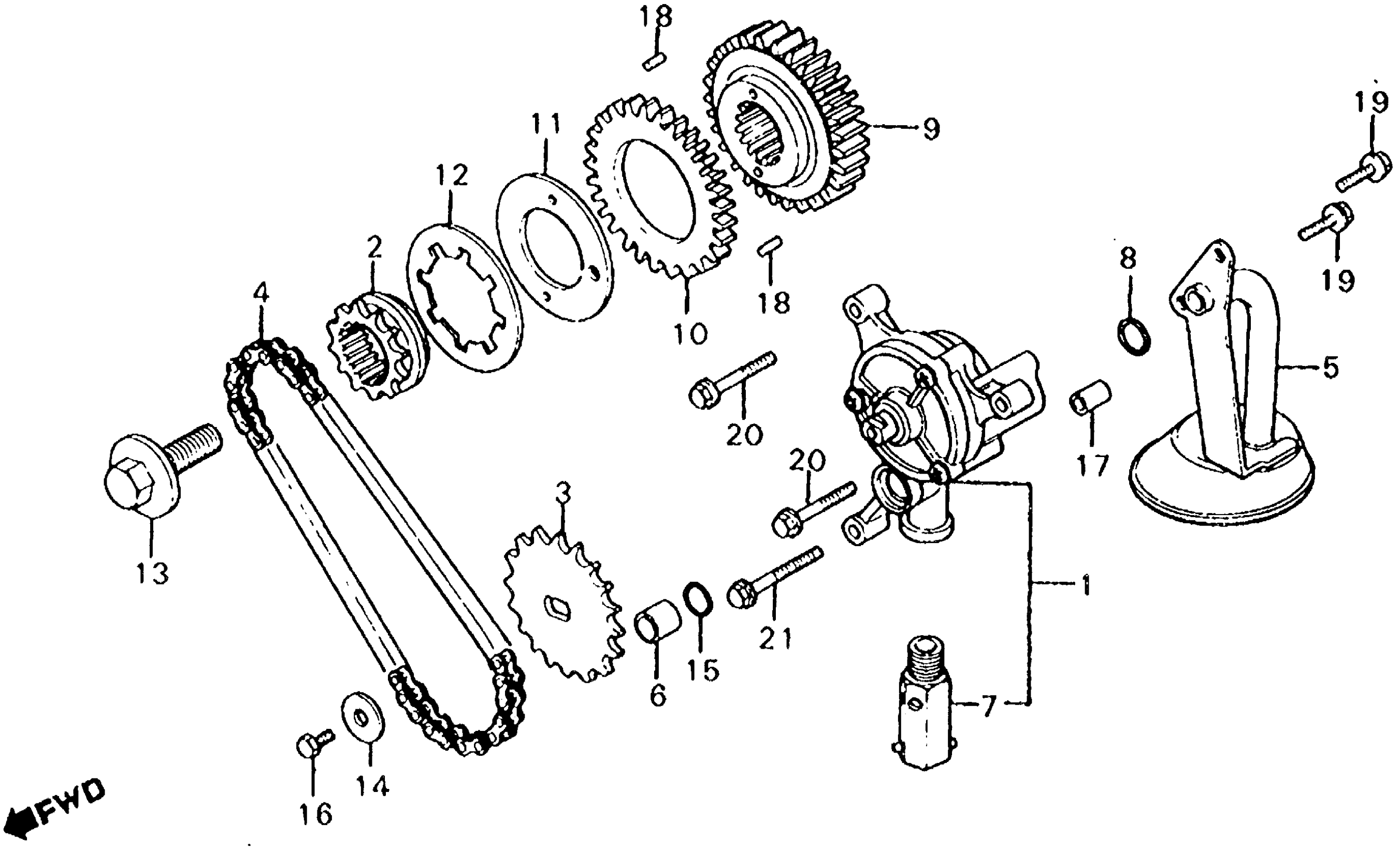

Honda CX500CA (81) CUSTOM, JPN, VIN# JH2PC010-BM200006 TO JH2PC010-BM212752 OIL PUMP + PRIMARY DRIVE GEAR Diagram

#

Description
Price

1

PUMP ASSY., OIL (NOT AVAILABLE)

15100-415-000

Unavailable

1

PUMP ASSY., OIL (NOT AVAILABLE)

15100-MA1-000

Unavailable

2

SPROCKET, OIL PUMP DRIVE (NOT AVAILABLE)

15115-415-000

Unavailable

3

SPROCKET, OIL PUMP DRIVEN (NOT AVAILABLE)

15116-415-000

Unavailable

4

CHAIN, OIL PUMP

15140-415-003

$51.99

5

BODY, OIL STRAINER (NOT AVAILABLE)

15141-415-000

Unavailable

6

COLLAR, O-RING

15155-300-000

$3.47

7

VALVE ASSY., RELIEF (NOT AVAILABLE)

15220-415-000

Unavailable

8

O-RING (11.8X2.4) This part replaces 16997-357-003.

91302-ZE9-003

$2.57

8

O-RING (11.8X2.4) This part replaces 91302-ZE9-000.

91302-ZE9-003

$2.57

8

O-RING (11.8X2.4)

91302-ZE9-003

$2.57

8

O-RING (11.8X2.4) This part replaces 91320-HA5-000.

91302-ZE9-003

$2.57

8

O-RING (11.8X2.4) This part replaces 91320-HA5-003.

91302-ZE9-003

$2.57

8

O-RING (11.8X2.4)

91320-MJ6-003

$2.79

9

GEAR, PRIMARY DRIVE (33T)

23121-449-000

Unavailable

10

SUB-GEAR, PRIMARY DRIVE (32T)

23122-415-000

Unavailable

11

PLATE, SIDE

23123-415-000

Unavailable

12

SPRING, DISK

23124-415-003

Unavailable

13

BOLT, UBS (12X28)

90013-415-000

$11.49

14

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

15

O-RING (13.6X2.4)

91301-268-020

$2.95

16

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

16

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

16

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

17

PIN A, DOWEL (8X14)

94301-08140

$2.25

18

PIN, DOWEL (3X5) (SOURCE: VINTAGE PARTS INC.)

94302-03050

Unavailable

19

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

19

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

20

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

20

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

21

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

21

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
