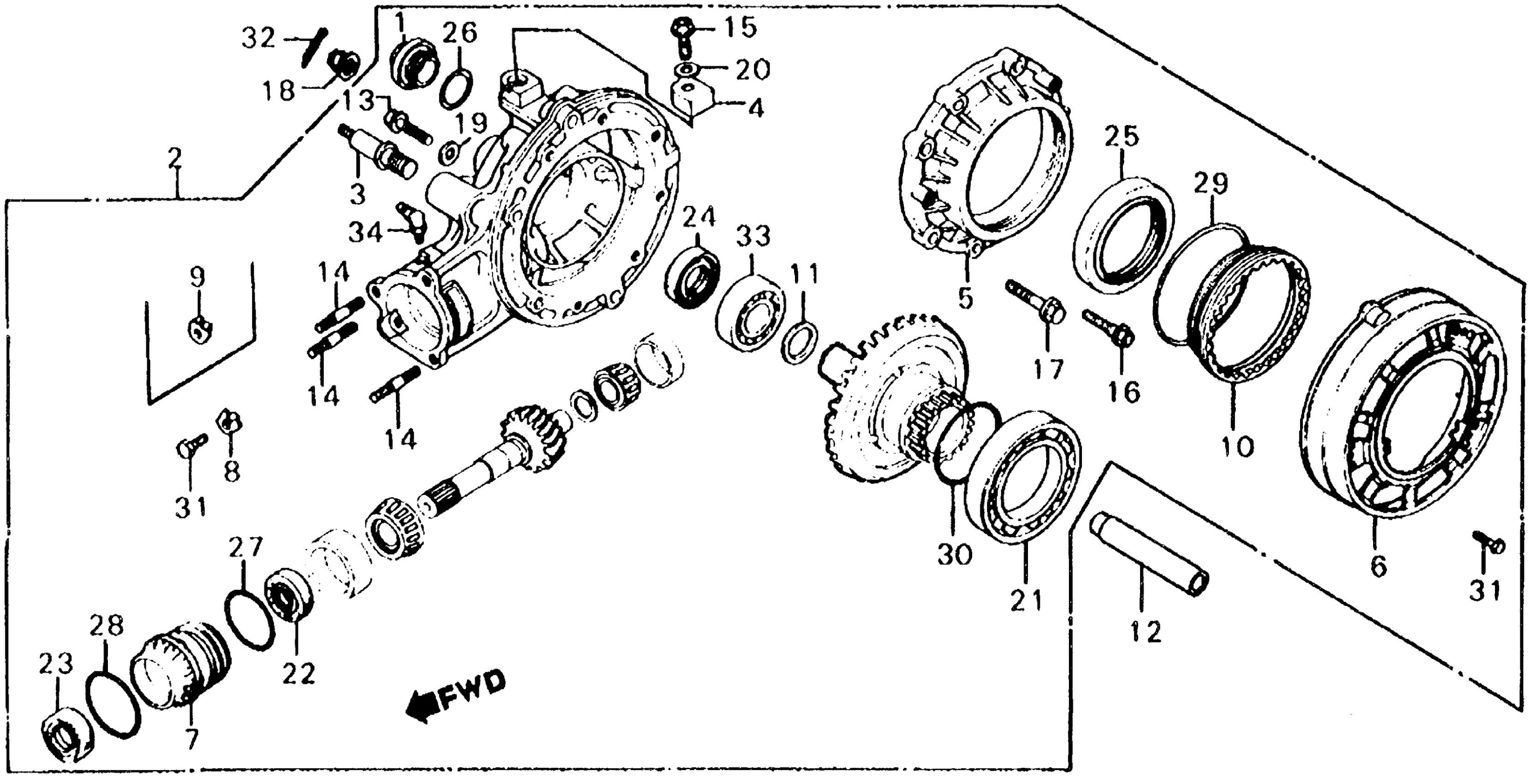

Honda CX500CA (81) CUSTOM, JPN, VIN# JH2PC010-BM200006 TO JH2PC010-BM212752 FINAL DRIVEN GEAR Diagram

#

Description
Price

1

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

1

CAP, VALVE ADJ.

12361-300-000

Unavailable

1

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

2

GEAR ASSY., FINAL DRIVEN

41300-415-000

Unavailable

3

STAY, RR. RUBBER (LOWER) (NOT AVAILABLE)

41303-415-300

Unavailable

4

CAP, BREATHER

41306-415-000

Unavailable

5

COVER, L. CASE

41321-415-000

Unavailable

6

PLATE, DUST GUARD (NOT AVAILABLE)

41324-415-000

Unavailable

7

RETAINER B, BEARING (NOT AVAILABLE)

41331-415-000

Unavailable

8

LOCK A, BEARING ADJ.

41332-415-000

$2.51

9

LOCK B, BEARING ADJ.

41333-415-000

$2.51

10

RETAINER A, BEARING

41351-371-000

Unavailable

11

SHIM A, RING GEAR (1.80) (NOT AVAILABLE)

41510-415-000

Unavailable

11

SHIM B, RING GEAR (1.84) (NOT AVAILABLE)

41511-415-000

Unavailable

11

SHIM C, RING GEAR (1.88)

41512-415-000

Unavailable

11

SHIM D, RING GEAR (1.92) (NOT AVAILABLE)

41513-415-000

Unavailable

11

SHIM E, RING GEAR (1.96) (NOT AVAILABLE)

41514-415-000

Unavailable

11

SHIM F, RING GEAR (2.00) (NOT AVAILABLE)

41515-415-000

Unavailable

11

SHIM G, RING GEAR (2.04)

41516-415-000

Unavailable

11

SHIM H, RING GEAR (2.08) (NOT AVAILABLE)

41517-415-000

Unavailable

11

SHIM I, RING GEAR (2.12)

41518-415-000

Unavailable

11

SHIM J, RING GEAR (2.16) (NOT AVAILABLE)

41519-415-000

Unavailable

11

SHIM K, RING GEAR (2.20) (NOT AVAILABLE)

41520-415-000

Unavailable

11

SHIM L, RING GEAR (2.24)

41521-415-000

Unavailable

11

SHIM M, RING GEAR (2.28) (NOT AVAILABLE)

41522-415-000

Unavailable

11

SHIM N, RING GEAR (2.32) (NOT AVAILABLE)

41523-415-000

Unavailable

12

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42623-415-000

Unavailable

13

BOLT, SEALING (8MM)

90109-371-000

$2.58

14

BOLT, STUD (10X45) (NOT AVAILABLE)

90125-371-000

Unavailable

15

BOLT, BREATHER (NOT AVAILABLE)

90126-415-000

Unavailable

16

BOLT, FLANGE (8X32)

90133-371-000

Unavailable

17

BOLT, FLANGE (10X38) (NOT AVAILABLE)

90134-371-000

Unavailable

18

NUT, AXLE (14MM)

90305-401-680

$11.65

19

WASHER (8MM)

90471-580-000

$2.92

20

WASHER, OIL BOLT

90545-300-000

$3.99

21

BEARING (6914) (KOYO SEIKO) This part replaces 91051-371-003.

91051-371-004

Unavailable

21

BEARING (6914) (KOYO SEIKO)

91051-371-004

Unavailable

21

BEARING (6914) (KOYO SEIKO) This part replaces 91051-371-005.

91051-371-004

Unavailable

22

OIL SEAL (25X40X8)

91261-415-003

Unavailable

23

OIL SEAL (33X43X7) (NOT AVAILABLE)

91262-415-003

Unavailable

24

OIL SEAL (30X47X7)

91264-415-003

Unavailable

25

OIL SEAL (70X90X8)

91265-371-003

Unavailable

26

O-RING (30.8MM)

91302-001-020

$3.75

27

O-RING (49.6X3.5) (NOT AVAILABLE) This part replaces 91353-415-003.

91353-415-004

Unavailable

27

O-RING (49.6X3.5) (NOT AVAILABLE)

91353-415-004

Unavailable

28

O-RING (53.6X2.4) (NOT AVAILABLE)

91354-415-003

Unavailable

29

O-RING (96.5X2.0)

91355-371-003

Unavailable

30

O-RING (62.7X4) (NOT AVAILABLE)

91356-415-003

Unavailable

31

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

31

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

32

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

32

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

32

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

32

PIN, COTTER (3.0X45)

94201-30450

$1.49

33

BEARING, RADIAL BALL (6006)

96100-60063-00

$15.03

34

FITTING, GREASE (B.76S)

96201-80000

$2.56
