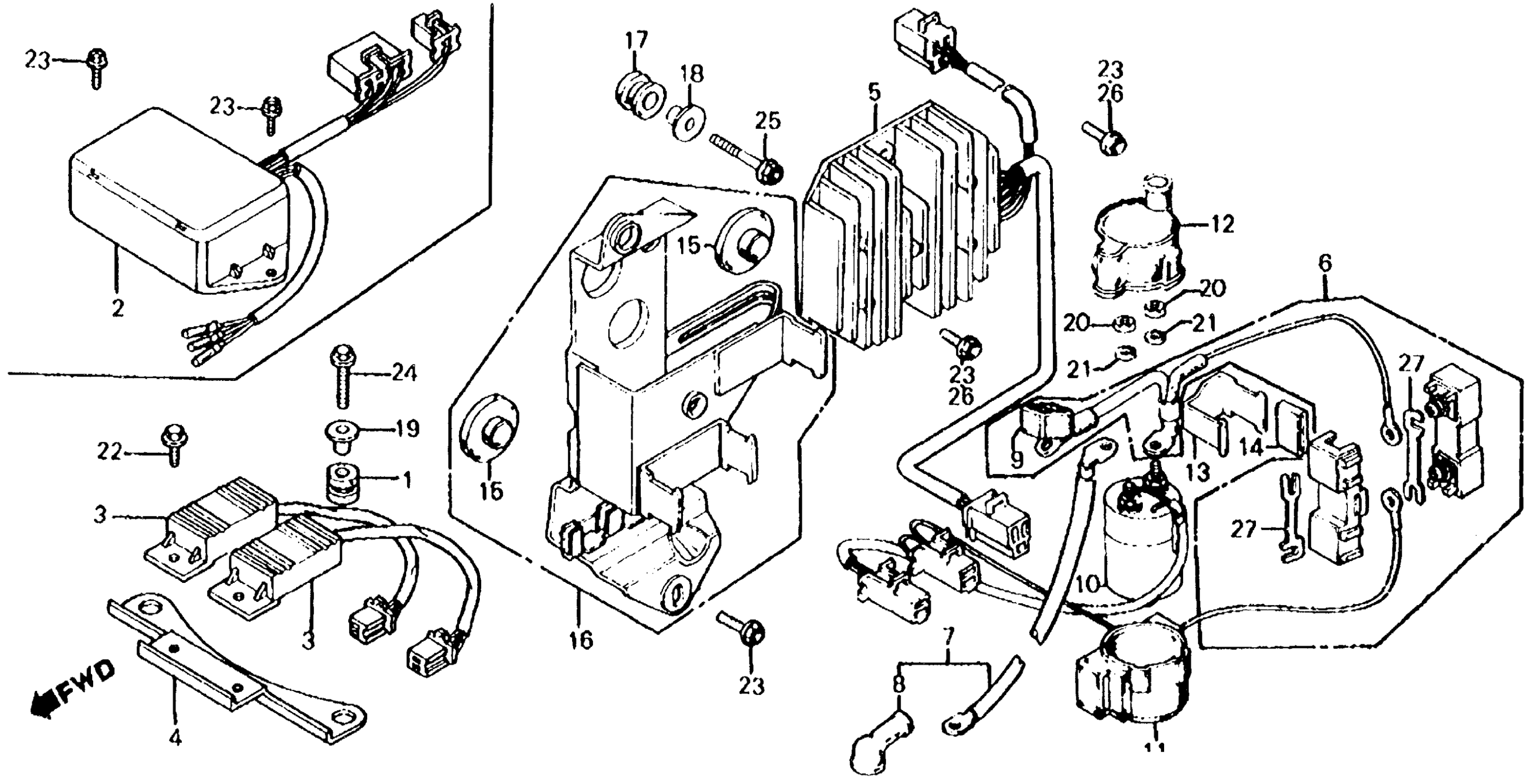

Honda CX500CA (81) CUSTOM, JPN, VIN# JH2PC010-BM200006 TO JH2PC010-BM212752 ELECTRIC PLATE + C.D.I. UNIT 81-82 Diagram

#

Description
Price

2

MODULE, IGNITION CONTROL (CDI) (HITACHI) (NOT AVAILABLE)

30400-415-015

Unavailable

5

RECTIFIER ASSY., REGULATOR

31600-415-008

Unavailable

6

CABLE This part replaces 32401-449-750.

32401-449-710

Unavailable

7

CABLE, STARTER MOTOR (NOT AVAILABLE)

32410-415-000

Unavailable

8

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

8

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

9

COVER B, TERMINAL

32414-425-000

Unavailable

9

COVER B, TERMINAL

32414-425-910

Unavailable

10

SWITCH ASSY., STARTER MAGNETIC

35850-HA8-771

Unavailable

10

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-415-007.

35850-HA8-771

Unavailable

10

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-958-680.

35850-HA8-771

Unavailable

11

RUBBER, MAGNETIC SHOCK This part replaces 35856-413-000.

35856-413-010

$10.15

11

RUBBER, MAGNETIC SHOCK

35856-413-010

$10.15

12

COVER, MAGNETIC SWITCH (NOT AVAILABLE)

35857-415-000

Unavailable

13

STAY, MAIN FUSE (NOT AVAILABLE)

38254-422-000

Unavailable

14

HOLDER, FUSE STAY

38260-422-000

$4.93

15

RUBBER B, BATTERY

50327-300-000

$4.58

15

RUBBER B, BATTERY This part replaces 50327-300-010.

50327-300-000

$4.58

16

PLATE, ELECTRIC (NOT AVAILABLE)

50340-449-750

Unavailable

17

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

18

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

18

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

18

COLLAR, RR. FENDER

61105-428-000

Unavailable

20

NUT, HEX. (6MM)

94002-06080-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94002-06080-00.

94002-06080-0S

$1.49

21

WASHER, SPRING (6MM)

94111-06800

$1.49

23

BOLT, FLANGE (6X14) This part replaces 95700-06014-08.

95701-06014-08

$1.55

23

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

25

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

25

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

27

FUSE F (30A)

98200-53000

$1.49
