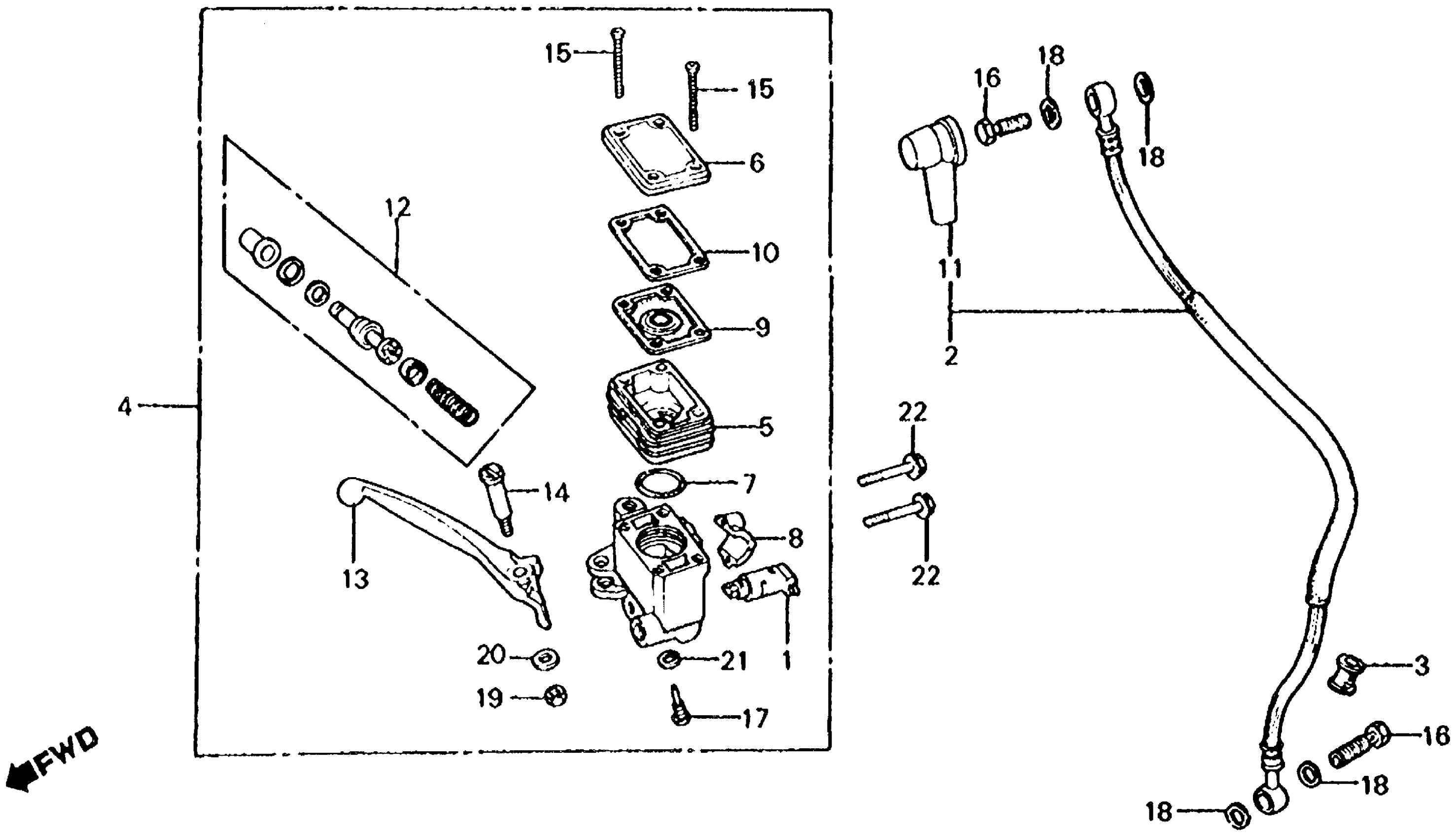

Honda CX500CA (80) CUSTOM, JPN, VIN# PC01-2100018 TO PC01-2125022 FR. BRAKE MASTER CYL. 80 Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-422-013

$17.65

2

HOSE ASSY., FR. BRAKE (NOT AVAILABLE) This part replaces 45126-449-771.

45126-449-003

Unavailable

3

BUSH, BRAKE HOSE

45146-371-000

Unavailable

4

MASTER CYLINDER ASSY., FR. (NA USE ALT:45510-449-405) This part replaces 45500-449-771.

45500-449-772

Unavailable

4

MASTER CYLINDER ASSY., FR. (NA USE ALT:45510-449-405)

45500-449-772

Unavailable

5

CUP, OIL This part replaces 45511-438-006.

45511-463-006

Unavailable

5

CUP, OIL

45511-463-006

Unavailable

6

CAP, OIL CUP

45513-422-672

Unavailable

7

O-RING (39.7X3.5)

45516-422-006

$9.13

8

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

8

HOLDER, MASTER CYLINDER This part replaces 45517-422-006.

45517-MA5-671

$29.30

9

DIAPHRAGM

45520-422-026

Unavailable

10

PLATE, DIAPHRAGM

45521-422-006

Unavailable

11

BOOT, MASTER CYLINDER

45522-422-000

$8.68

12

MASTER CYLINDER SET, FR. This part replaces 45530-422-305.

45530-463-305

Unavailable

12

MASTER CYLINDER SET, FR.

45530-463-305

Unavailable

13

LEVER, R. HANDLEBAR This part replaces 53175-422-000.

53175-438-010

Unavailable

13

LEVER, R. HANDLEBAR This part replaces 53175-438-000.

53175-438-010

Unavailable

13

LEVER, R. HANDLEBAR

53175-438-010

Unavailable

14

BOLT, R. HANDLEBAR CONTROL LEVER PIVOT

90114-422-000

Unavailable

15

SCREW, CAP (4X35)

90137-422-006

$3.30

16

BOLT, OIL This part replaces 90145-300-000.

90145-300-010

$9.68

16

BOLT, OIL

90145-300-010

$9.68

17

SCREW, PAN (4X13.5) (NOT AVAILABLE)

90183-422-000

Unavailable

18

WASHER, OIL BOLT

90545-300-000

$3.99

19

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

19

NUT, HEX. (6MM)

94002-06000-0S

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

WASHER, SPRING (4MM)

94111-04000

$1.49

22

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

22

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
